New Holland Air Drill P2050 service manual

Description New Holland Air Drill P2050 service manual

New Holland Air Drill P2050 pdf service & repair manual

Specifications, troubleshooting, maintenance, schematics, technical data, disassembly, assembly, removal, installation instructions and other information

MANUAL CONTENT:
GENERAL INFORMATION
General Service Information
Important Information
Service Tools
Safety
Units of Measure
Bolt Torque Information
Machine Specifications
Paint Touch-up Procedure

ADJUSTMENTS
Air Drill Leveling
Floating Hoe/Shank Adjustments
Sweep Pitch Adjustments
Trip Torque Specifications
Setting the Depth Gauge
Wing Lead Adjustment

MECHANICAL SERVICE
Troubleshooting Tables
Servicing Safety Precautions
General Operating Information
Grease Locations
Maintenance
Tires
Caster Wheels
Caster Hub and Spindle Maintenance
Walking Beam Replacement
Caster Transport Lock Installation
Pin Guides
Depth Control Service
Walking Beam Carrier Spool Replacement
Auxiliary Tow Hitch

HYDRAULICS
Replace Seals in Cylinders
Hydraulic Cylinders
Depth Control
Wing Lift Hydraulics

ELECTRICAL
Connector Service Kit

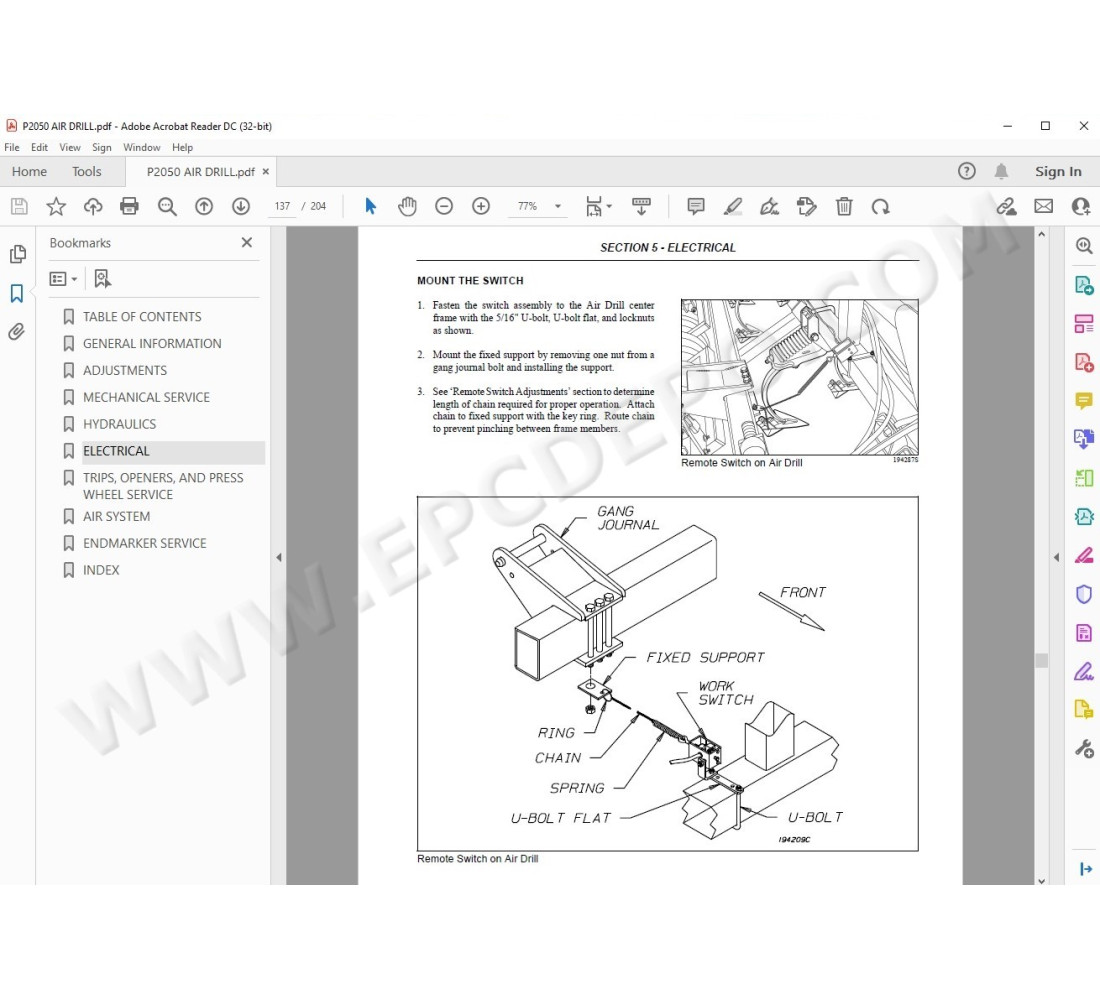

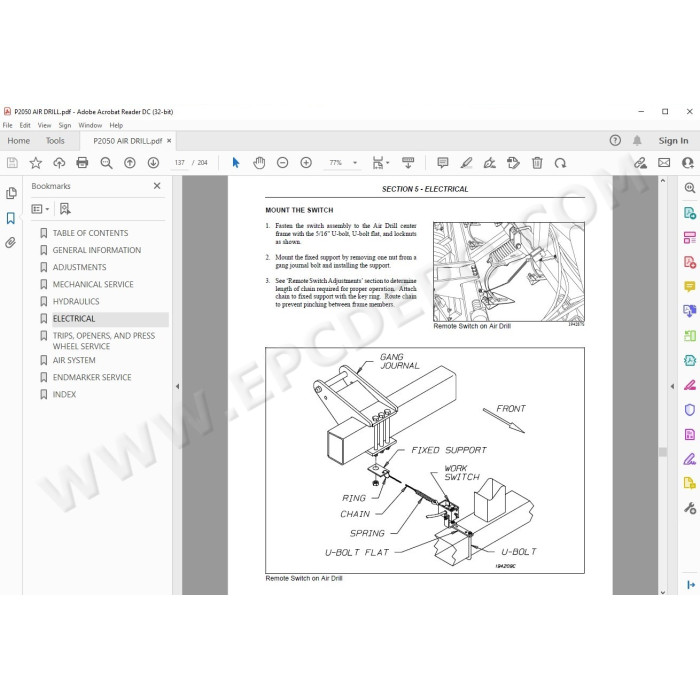

Remote Switch Installation

TRIPS, OPENERS, AND PRESS WHEEL SERVICE
Service of Openers
Press Wheels and Shanks
Ground Openers and Seed Boots
Troubleshooting Tables
Trip Compressor Tool Kit
Tension Link Kit - 550 Pound Trip
Adjustment of Trip Assemblies
Trip/Shank Shim Installation
Heavy Duty Bearing Kits
Press Wheel Removal
Packer Wheel Rest Assembly
Shank Spacing and Trip Release Pressure
Sweep Pitch Adjustment
Trip Torque Specifications

AIR SYSTEM
Troubleshooting Tables
Hoses
Theory of Operation - Air System
Determining Adequate Carrying Velocities
Header Assemblies

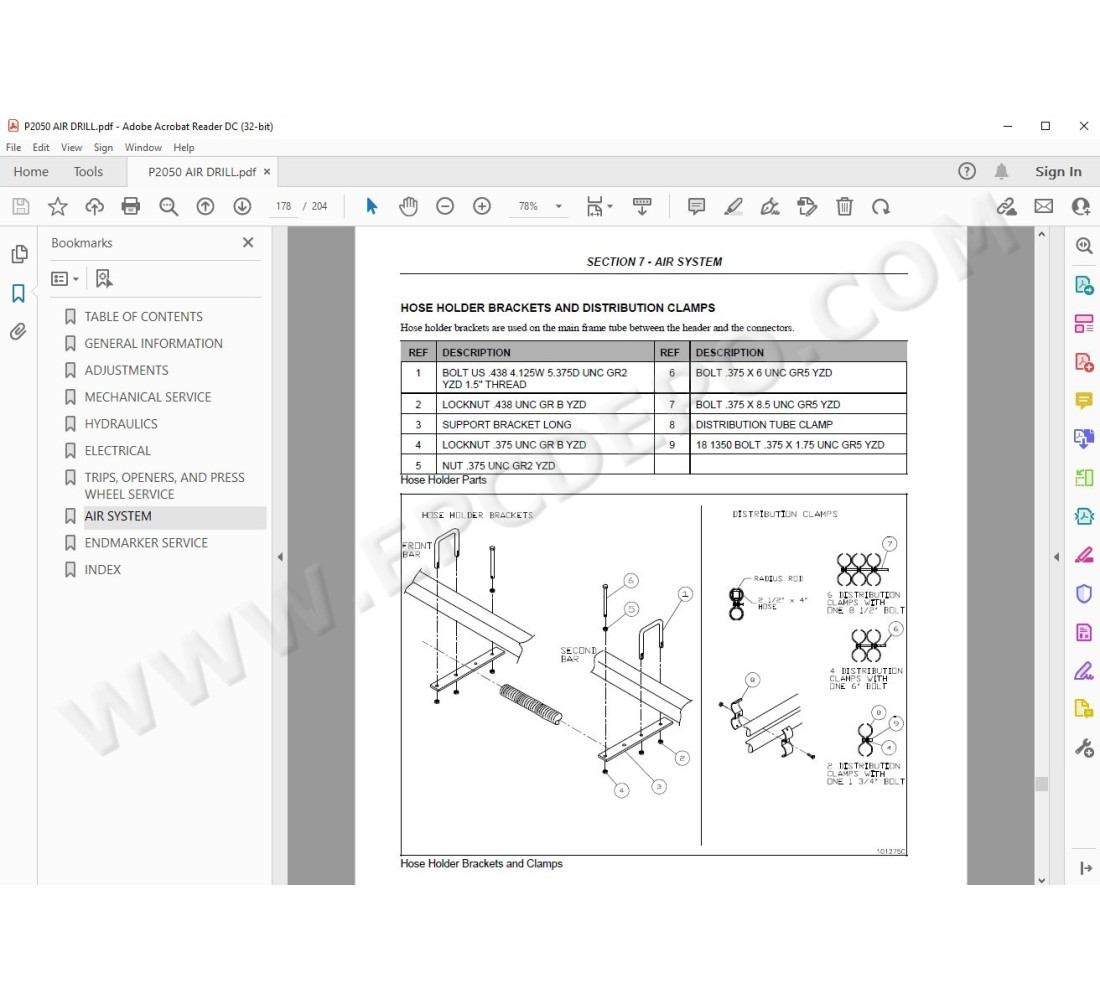

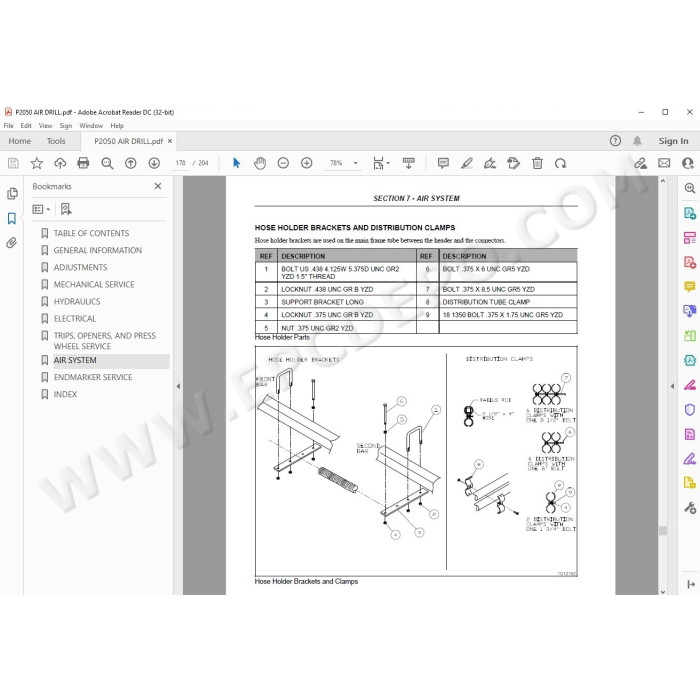

Hose Holder Brackets and Distribution Clamps

ENDMARKER SERVICE
Endmarkers
Endmarker Replacement
Endmarker Hydraulics
Endmarker Operation and Ajdustment
