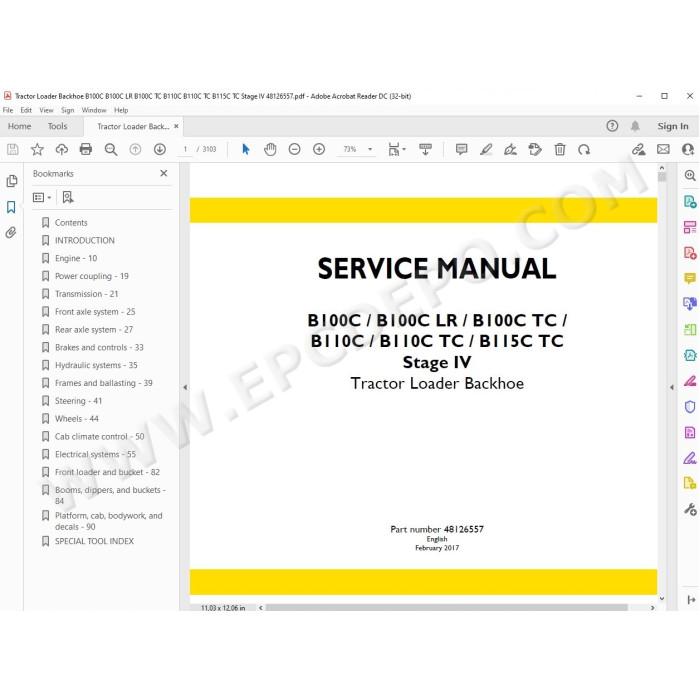

New Holland Backhoe Loader B100C B100C LR B100C TC B110C B110C TC B115C TC Stage 4 service manual

Description New Holland Backhoe Loader B100C B100C LR B100C TC B110C B110C TC B115C TC Stage 4 service manual

New Holland Backhoe Loader B100C, B100C LR, B100C TC, B110C, B110C TC, B115C TC Stage IV pdf service & repair manual

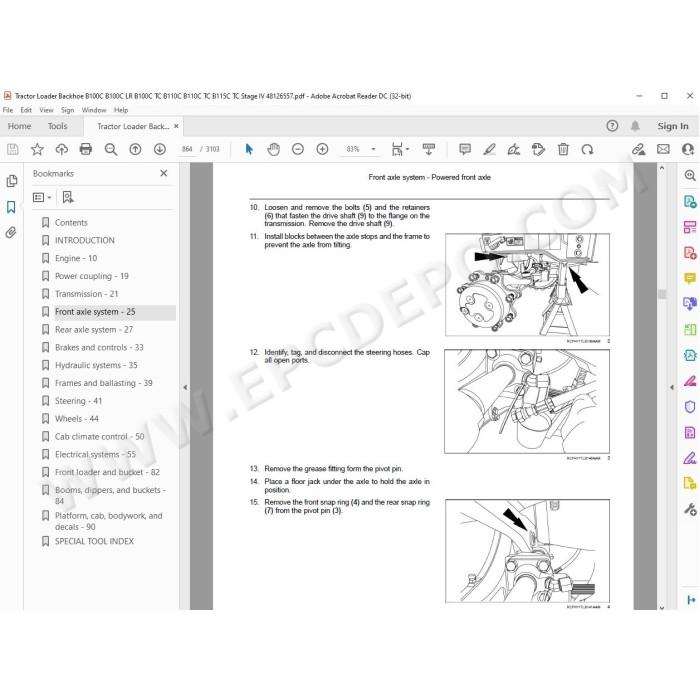

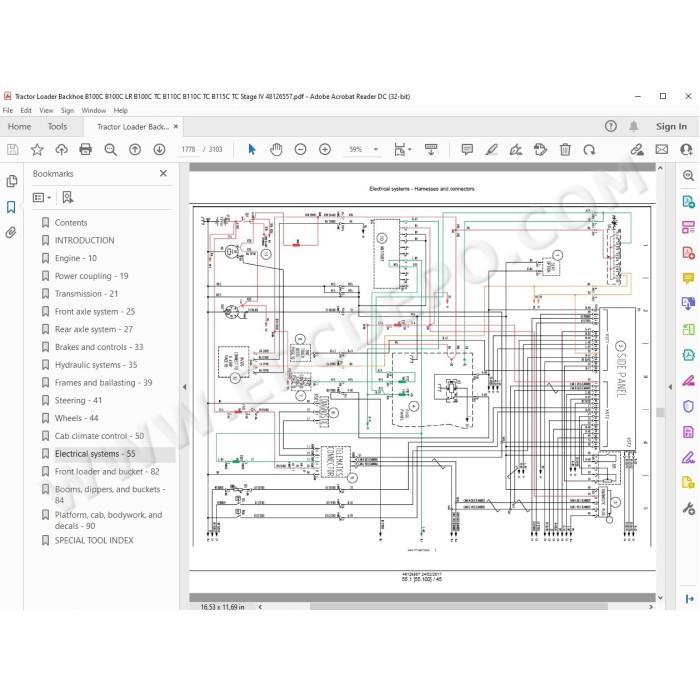

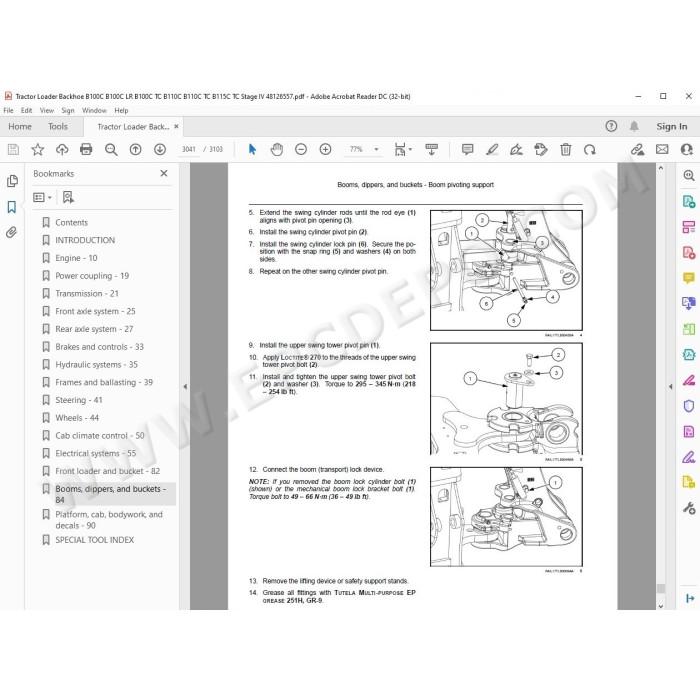

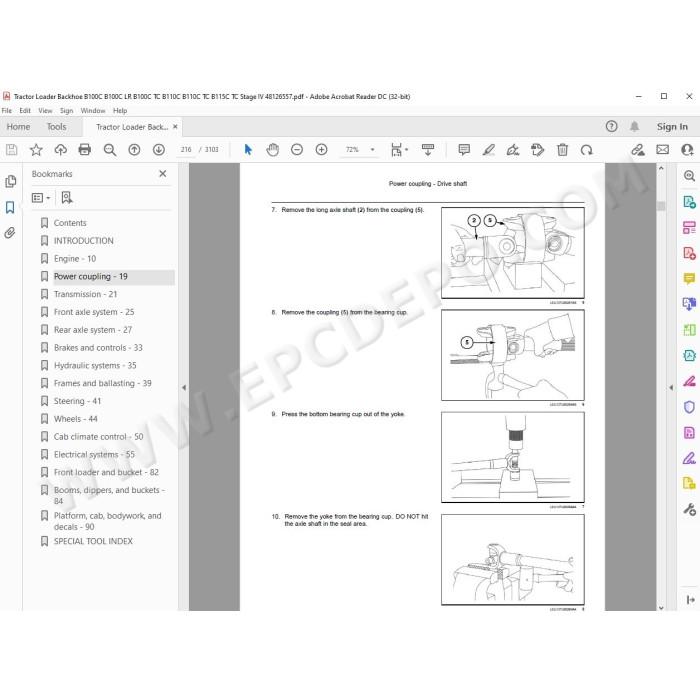

Technical data, specifications, troubleshooting, maintenance, electrical diagrams, hydraulic schematics, disassembly, assembly, removal, installation and other information

Models covered:
B100C LR, B100C STAGE IV, STRAIGHT LOADER ARM (SLA), FOUR-WHEEL DRIVE (4WD), MARBLE CUTTING
B100C STAGE IV, STRAIGHT LOADER ARM (SLA), FOUR-WHEEL DRIVE (4WD)
B100C TC STAGE IV, TOOL CARRIER (TC), FOUR-WHEEL DRIVE (4WD)
B110C STAGE IV, STRAIGHT LOADER ARM (SLA), FOUR-WHEEL DRIVE (4WD)
B110C TC STAGE IV, TOOL CARRIER (TC), FOUR-WHEEL DRIVE (4WD)
B115C TC STAGE IV, CENTER PIVOT (CP)
B115C TC STAGE IV, SIDE SHIFT (SS)

SERVICE MANUAL CONTENT:
Engine
Engine and crankcase
Fuel tanks
Fuel filters
Fuel injection system
Selective Catalytic Reduction (SCR) exhaust treatment
Engine cooling system
Fan and drive

Power coupling
Drive shaft

Transmission
Power shuttle transmission
Power shuttle transmission external controls
Power shuttle transmission internal components
Powershift transmission
Powershift transmission external controls
Powershift transmission hydraulic components
Powershift transmission internal components

Front axle system
Powered front axle
Front bevel gear set and differential
Final drive hub, steering knuckles, and shafts

Rear axle system
Powered rear axle
Rear bevel gear set and differential
Planetary and final drives
Rear-powered steerable axle

Brakes and controls
Hydraulic service brakes
Parking brake or parking lock

Hydraulic systems
Reservoir, cooler, and filters
Fixed displacement pump
Variable displacement pump
Pump control valves
Safety and main relief valves
Pilot system
Auxiliary hydraulic function control
Hydraulic hand control
Hydraulic swing system
Front loader hydraulic system control
Front loader arm hydraulic system
Front loader bucket hydraulic system
Excavator and backhoe hydraulic controls
Boom hydraulic system
Dipper arm
Bucket

Frames and ballasting
Frame
Ballasts and supports

Steering
Tie rods
Hydraulic control components
Cylinders

Wheels
Front wheels
Rear wheels

Cab climate control
Heating
Ventilation
Air conditioning

Electrical systems
Harnesses and connectors
Alternator
Battery
Fuel tank system
Engine cooling system
Electronic modules
Cab controls
Telematics
FAULT CODES

Front loader and bucket
Arm
Bucket

Booms, dippers, and buckets
Boom pivoting support
Boom
Dipper arm
Bucket

Platform, cab, bodywork, and decals
Machine shields and guards
