Manitou Forklift M30-2 M30-4 M40-2 M40-4 M50-2 M50-4 + H / L parts manual

Description Manitou Forklift M30-2 M30-4 M40-2 M40-4 M50-2 M50-4 + H / L parts manual

Manitou Forklift M30 M40 M50 2/4 H/L pdf spare parts manual

HYDROSTATIC & 4-SPEED TRANSMISSIONS, TIER II ENGINE

Serial numbers:
750819 & above (including 750503)
Poultry Trucks 750819 thru 752092 (except 751211)

Models covered:
M30-2
M40-2
M50-2
M30-4
M40-4
M50-4
M30-2 H
M40-2 H
M50-2 H
M30-4 H
M40-4 H
M50-4 H
M30-2 L
M40-2 L
M50-2 L
M30-4 L
M40-4 L
M50-4 L
M30-2 H L
M40-2 H L
M50-2 H L
M30-4 H L
M40-4 H L
M50-4 H L

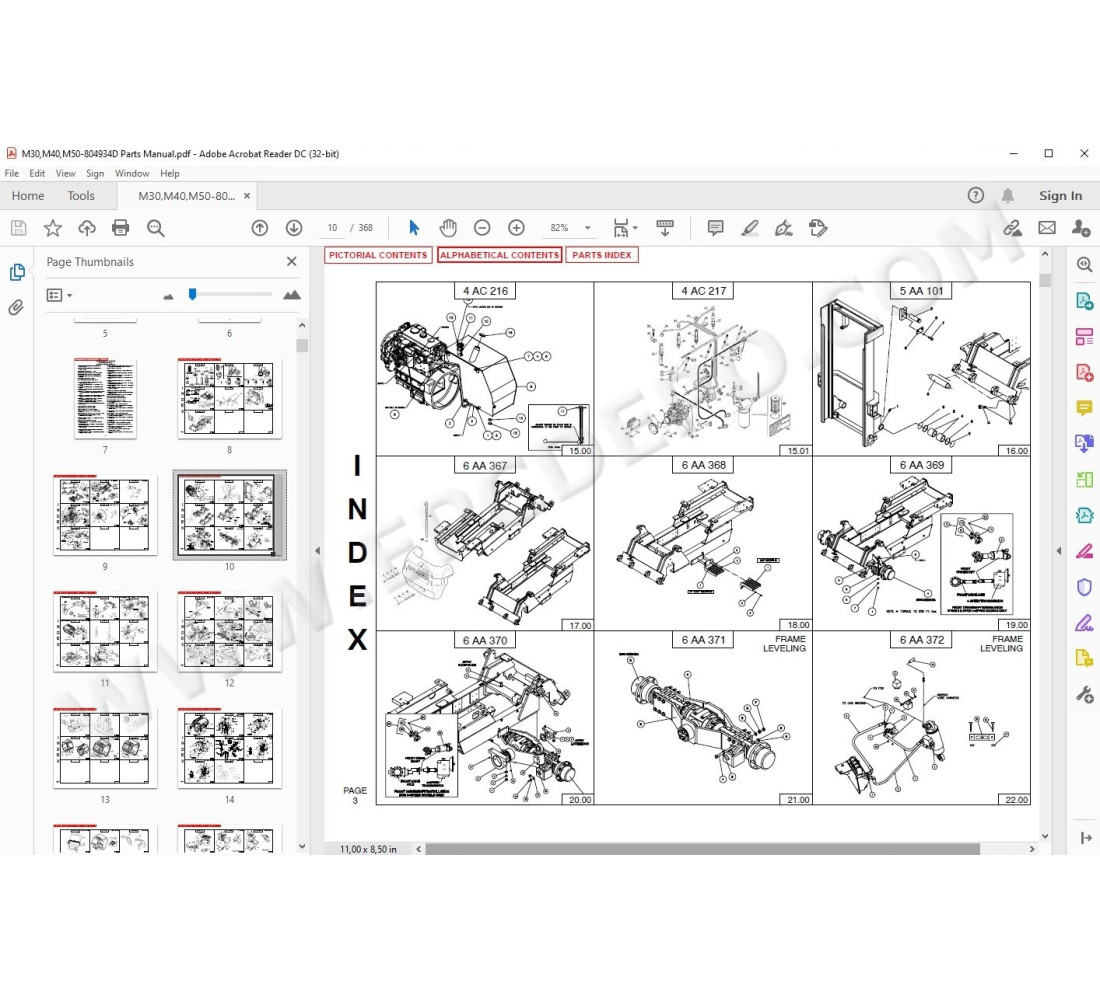

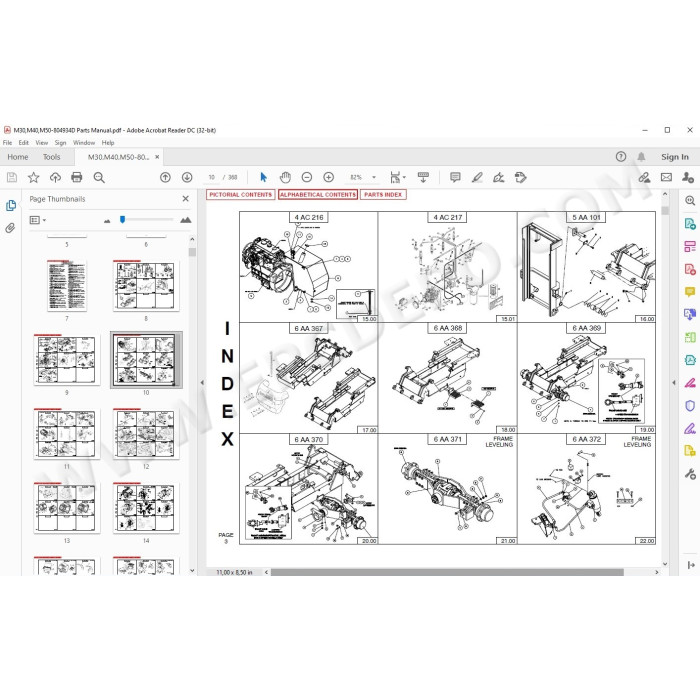

MANUAL CONTENT:
ACCELERATOR PEDAL ASSEMBLY

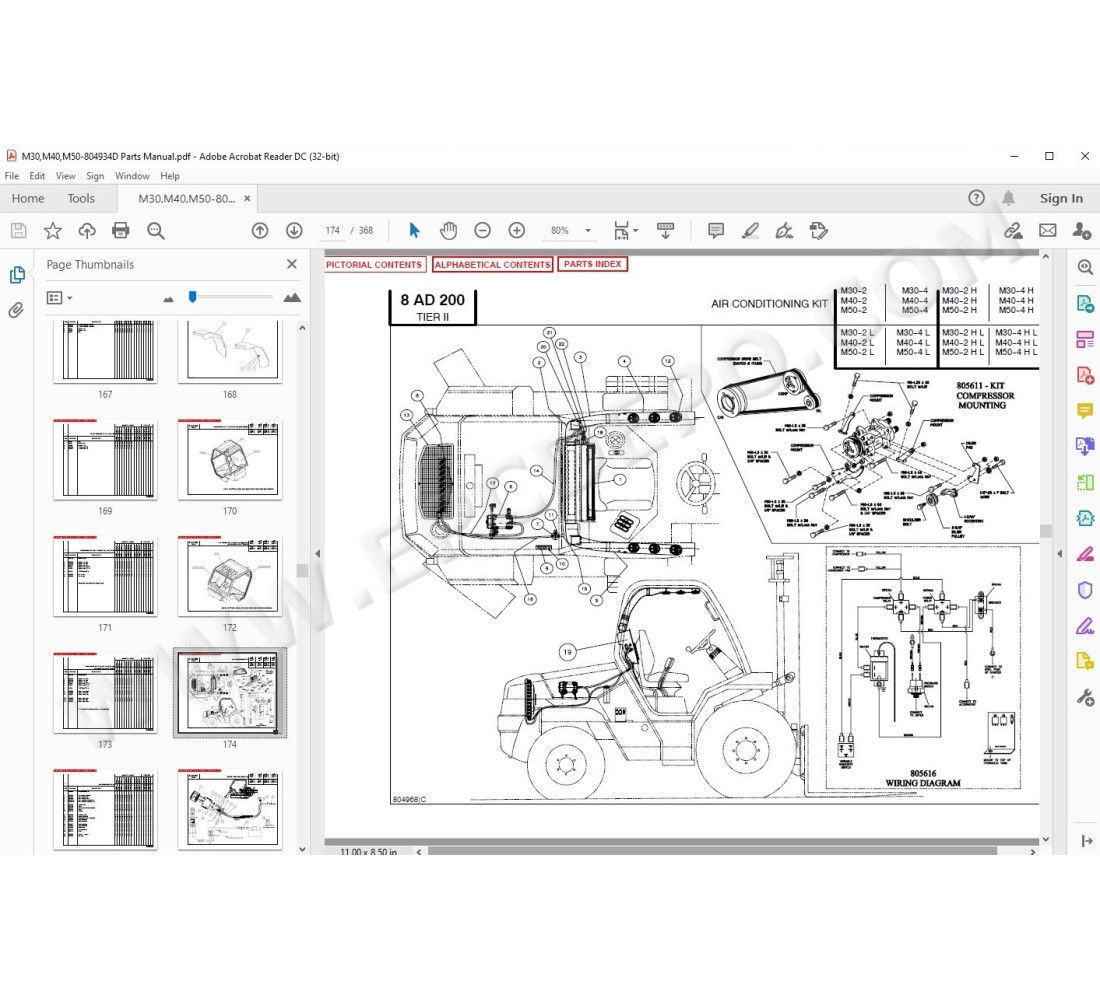

AIR CONDITIONING KIT
AIR INTAKE SYSTEM
ALTERNATOR
BRAKE CIRCUIT
BRAKE SYSTEM ASSEMBLY
CAB ASSEMBLY
CAB DETAILS
CAB MOUNTING ASSEMBLY
CAB WIRING HARNESS
CYLINDER, FRAME LEVELING
DECALS
DRIVE AXLE, FRONT
ELECTRICAL ASSEMBLY
ELECTRICAL SWITCHES, SWITCH BOXES, BULBS
ENGINE
EXHAUST SYSTEM ASSEMBLY
FILTER ASSEMBLIES, HYDRAULIC TANK
FILTERS AND BELTS
FRAME AND COUNTERWEIGHTS
FRONT DRIVE AXLE AND DRIVESHAFT INSTALLATION
FRONT FENDERS
FUEL SYSTEM
FUEL TANK ASSEMBLY
GAUGES, OIL TEMP, OIL PRESS, WATER TEMP
GEAR LEVER ASSEMBLY
GEARBOX
HEATER
HYDRAULIC DIFFERENTIAL LOCKING ASSEMBLY
HYDRAULIC OIL COOLER

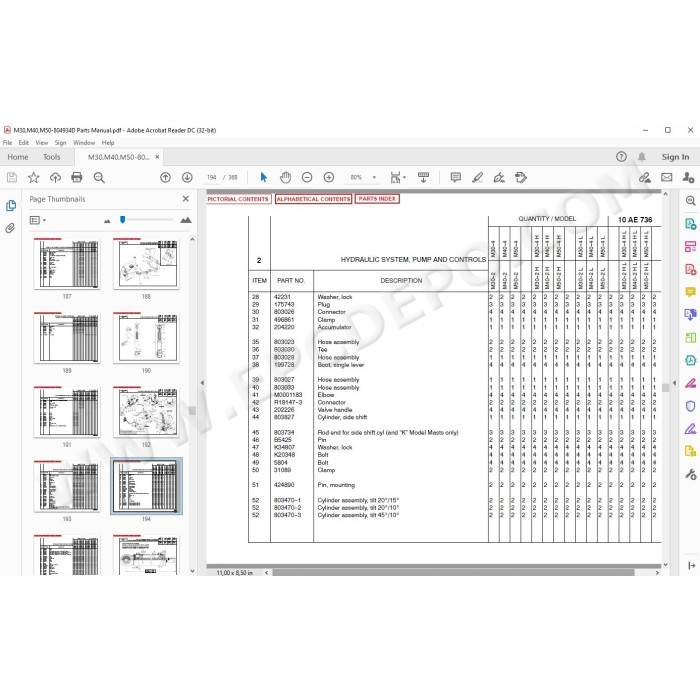

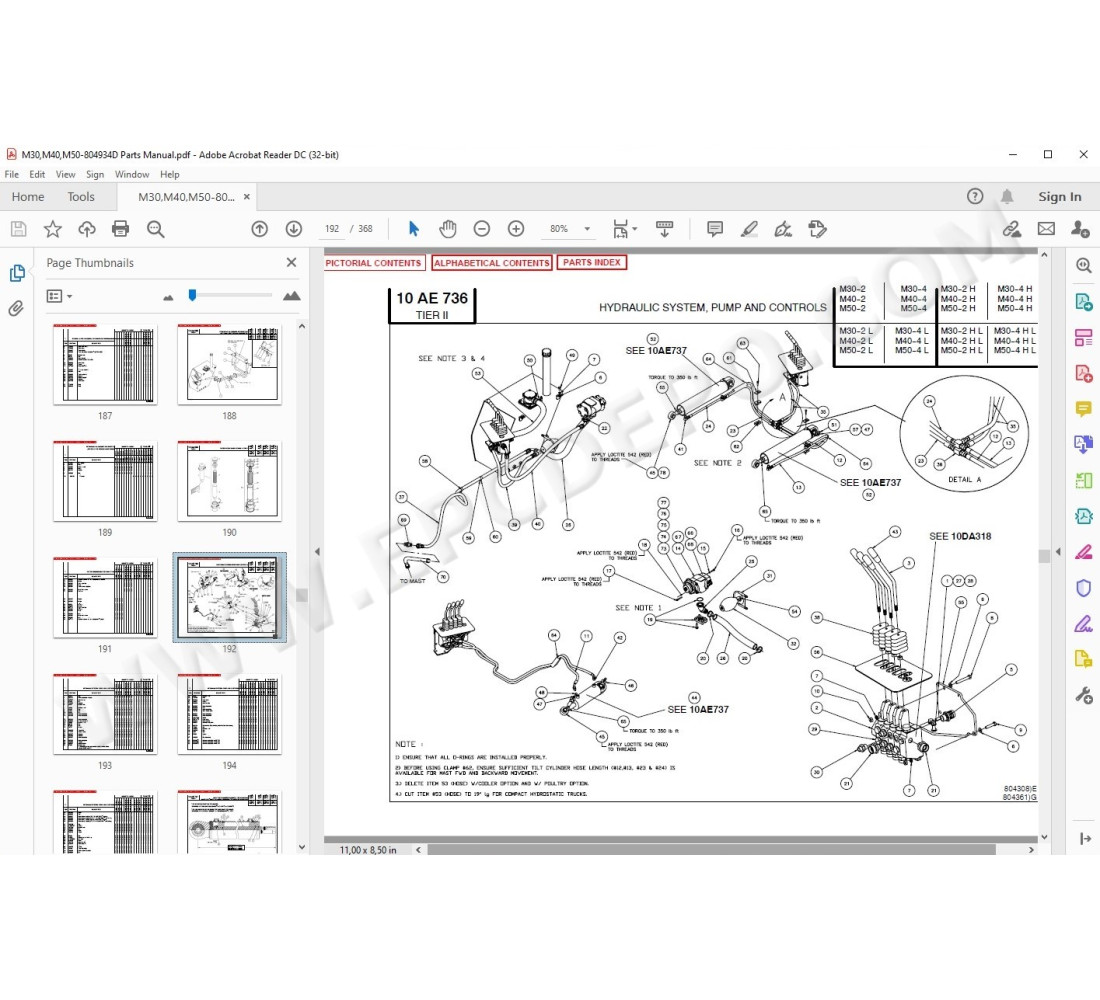

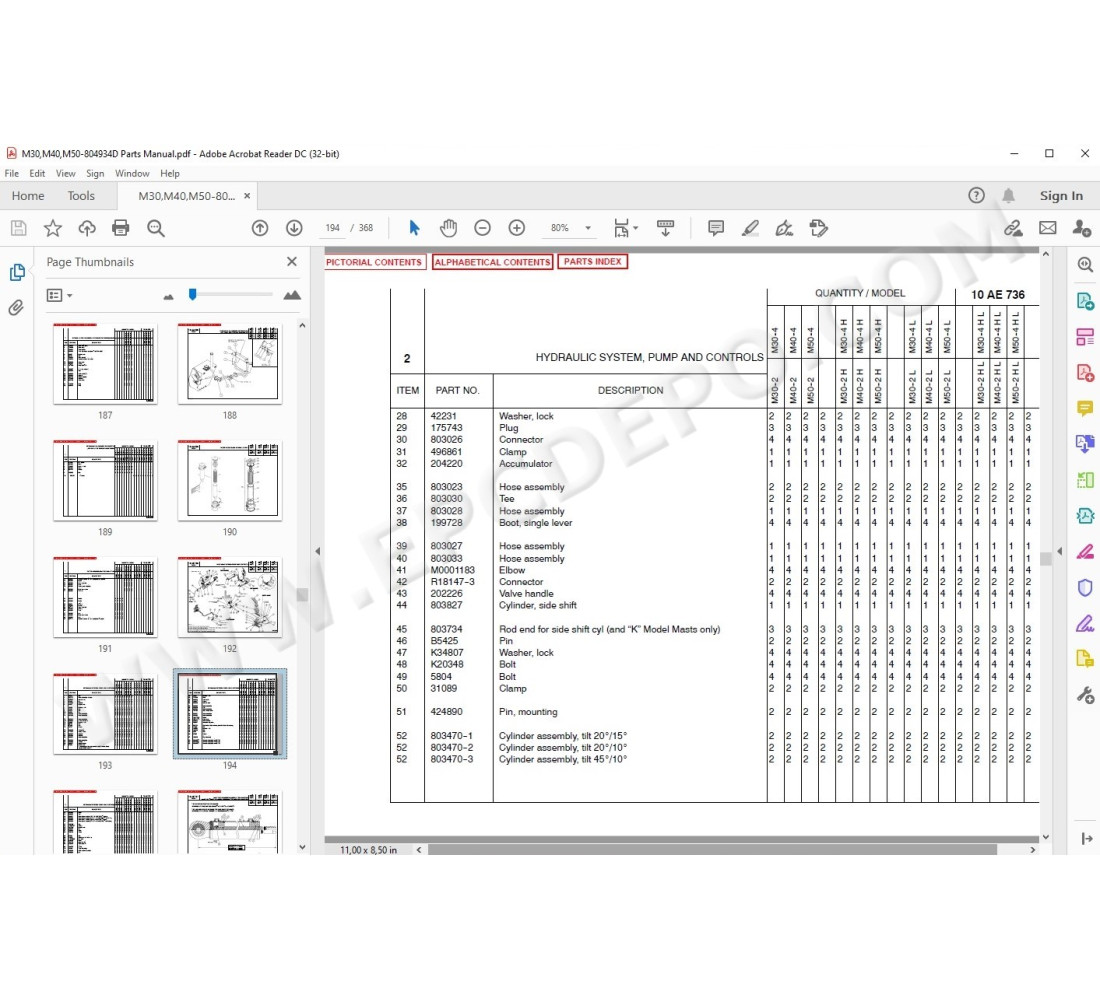

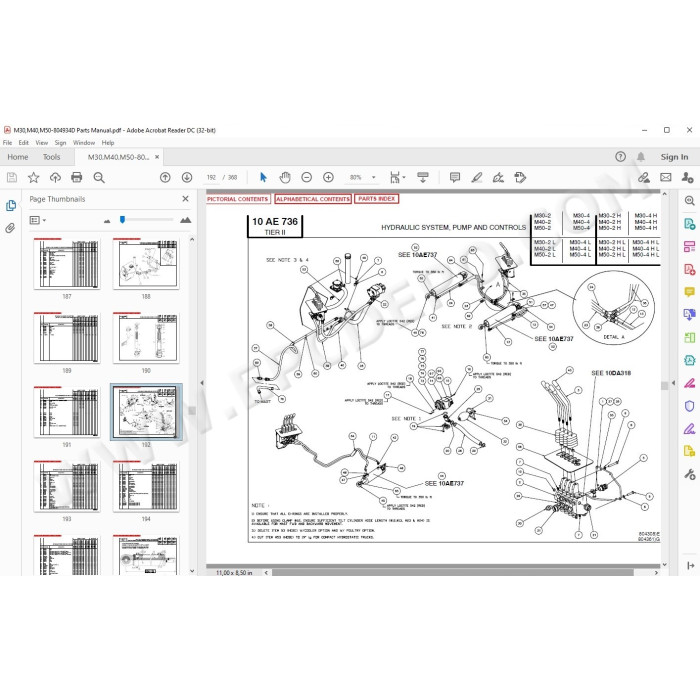

HYDRAULIC SYSTEM, PUMP AND CONTROLS
HYDRAULIC TANK ASSEMBLY
HYDRAULIC VALVE BANK ASSEMBLY
HYDROSTATIC (TRANSMISSION)
HYDROSTATIC COUPLING
HYDROSTATIC GEARBOX HYDRAULICS
HYDROSTATIC INCHING VALVE
HYDROSTATIC GEARBOX SOLENOID HARNESS
HYDROSTATIC MOTOR
MAST MOUNTING HARDWARE
MAST SIDE--SHIFT CYLINDER ASSEMBLY
MAST TILT CYLINDER ASSEMBLY
OIL COOLER
PARKING BRAKE ASSEMBLY
PARKING BRAKE LEVER
RADIATOR COOLING TRAY
RADIATOR INSTALLATION
SEAT ASSEMBLY
SENSORS, ENGINE AND TRANSMISSION
SIDE PANELS, REAR FENDERS, AND HOOD LIFT CYLINDER
SIDE STEP INSTALLATION
STEER AXLE ASSEMBLY
STEER AXLE CASING
STEER AXLE DIFFERENTIAL
STEER AXLE REDUCTION GEAR
STEER AXLE SUPPORT BRACKET
STEER AXLE
STEERING AXLE AND DRIVESHAFT INSTALLATION
STEERING AXLE AND HANGER INSTALLATION
STEERING COLUMN ASSEMBLY
STEERING CYLINDER
STEERING HYDRAULICS
TACHOMETER OPTION
TIRES AND WHEELS
TRANSMISSION INSTALLATION
TRANSMISSION
TRANSMISSION, HYDROSTATIC PUMP
WINDSHIELD KIT
WINDSHIELD WIPER INSTALLATION
OTHER / ACCESSORIES
