Manitou Forklift M2/4 30 40 50 CP PS / P / PL / PXL parts manual

Description Manitou Forklift M2/4 30 40 50 CP PS / P / PL / PXL parts manual

Manitou Forklift M2/4 30 40 50 CP -PS / P / PL / PXL 4 SPEED TRANSMISSION pdf spare parts manual

Serial numbers:
M2300546, M240332, M2500264, M4300288, M4400372, M4500252 and above
164968 thru 181963 (except 170493 & 170514)

Models covered:
M2/4 30/40/50 CP/-PS
M4 30 CP-P
M2 30 CP-P/-PL/-PXL

PARTS MANUAL CONTENT:
TIRES & WHEELS
Tires, Rims & Assemblies

BRAKE & ACCELERATOR PEDAL ASSEMBLIES
Brake & Inching Pedals, Park Brake Lever & Accelerator Pedal

FRONT DRIVE AXLE
Drive Axle Assembly, Brake Disc Assembly & Diff. Lock Assembly

2WD STEERING SYSTEMS
Steering Axles & Supports, Steering Hydraulics & Steering Cylinders

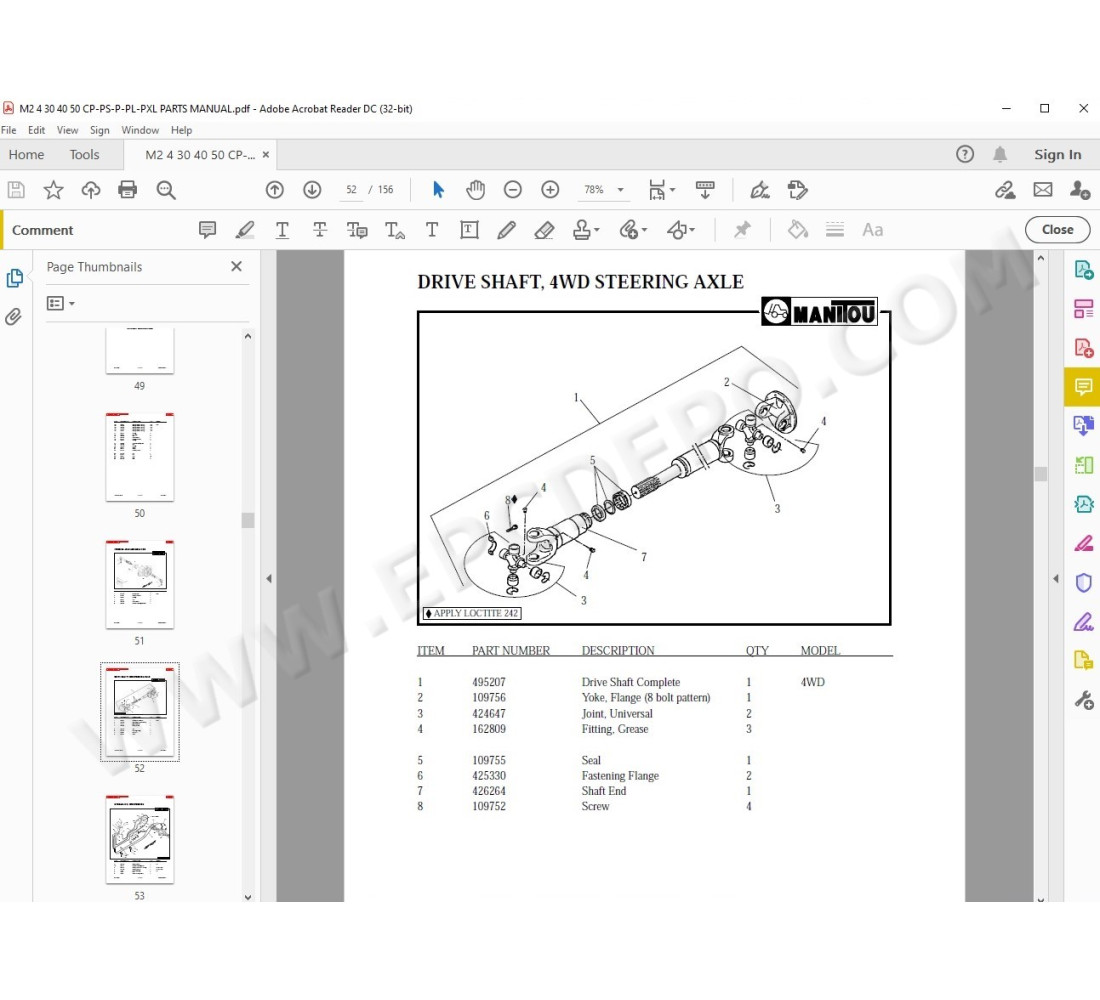

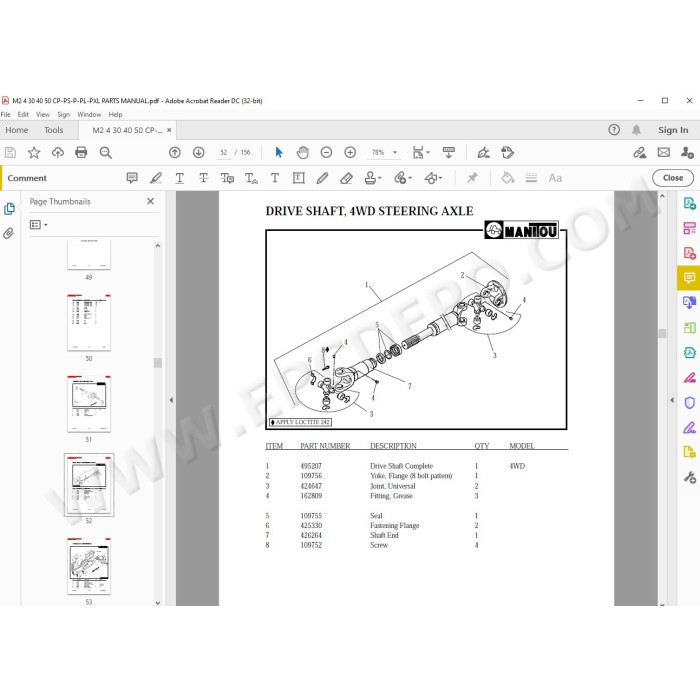

4WD STEERING SYSTEMS
Steering Axles & Supports, Steering Hydraulics & Steering Cylinders

TRANSMISSION & SHIFT LEVERS

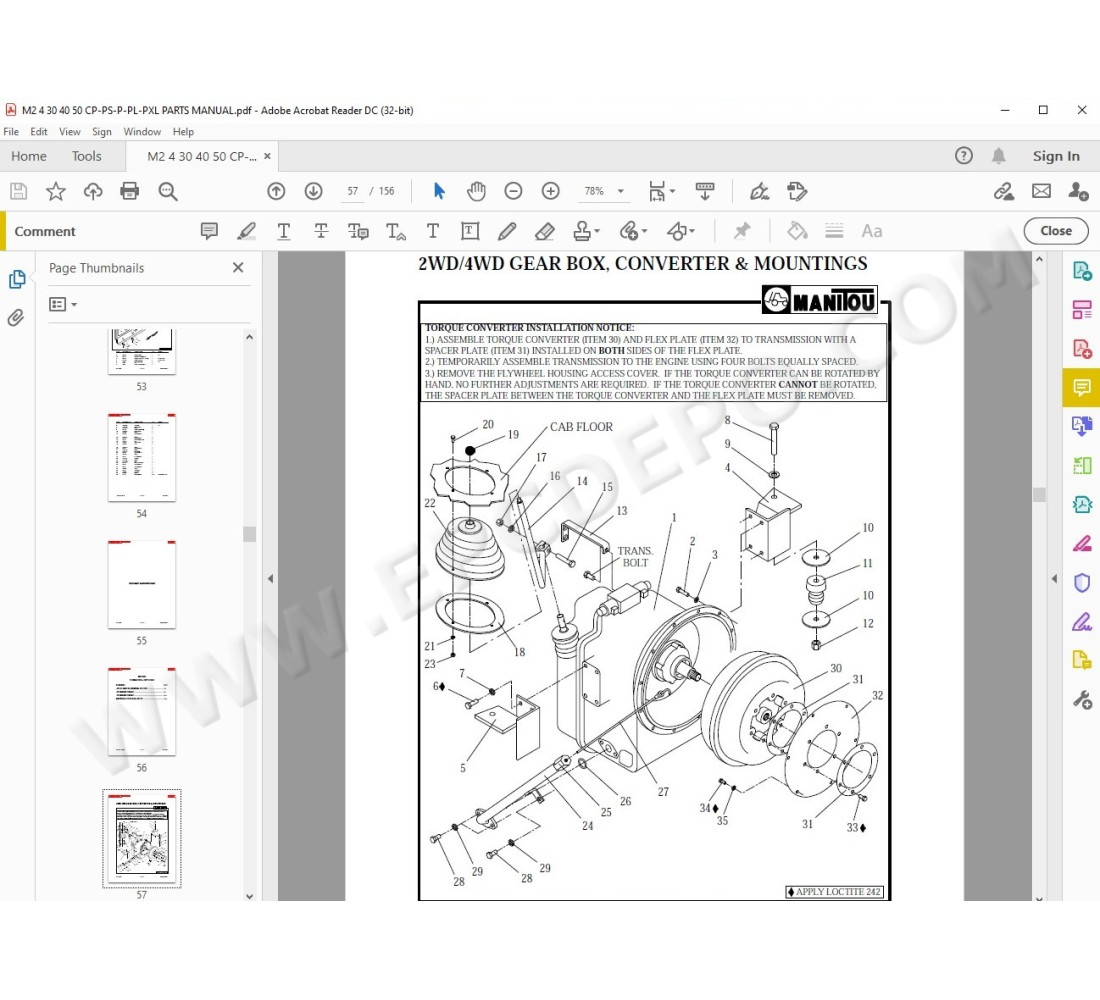

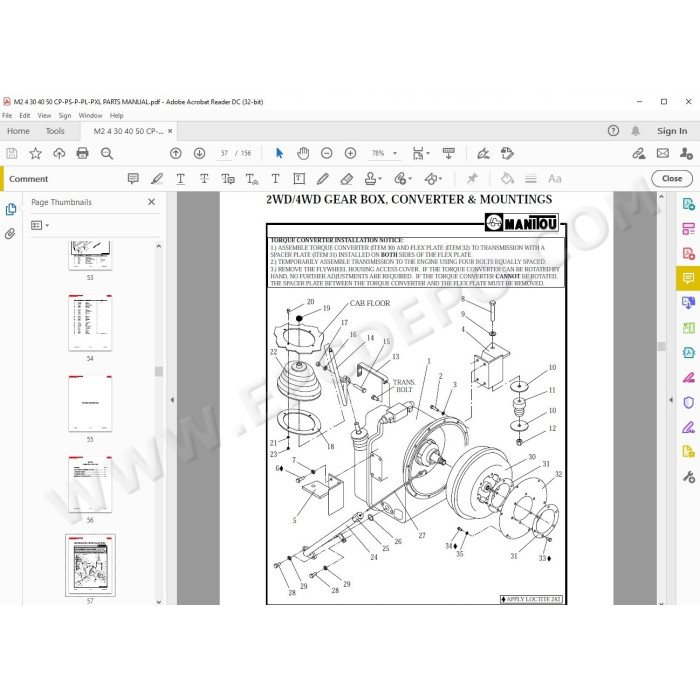

Gear Box, Converter, Clutch, Control Valve, 4WD Box, Levers & Mounts

ENGINE, ALTERNATOR & STARTER

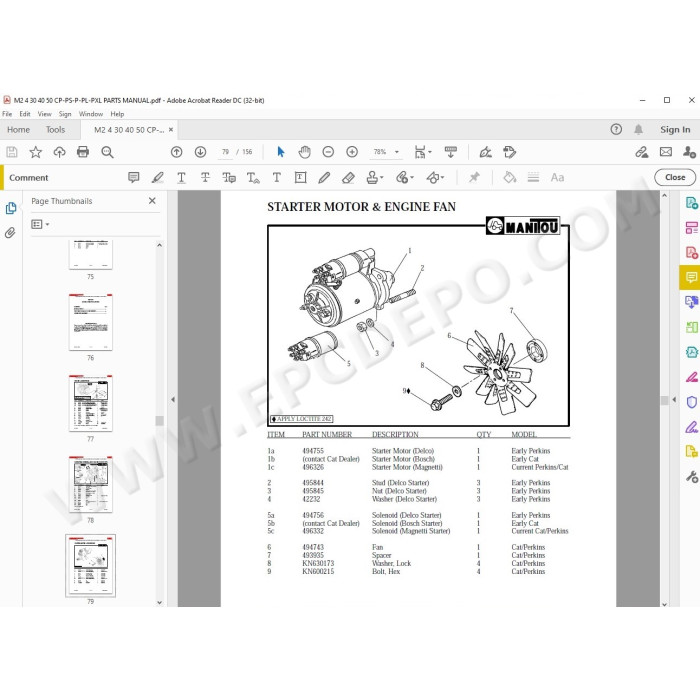

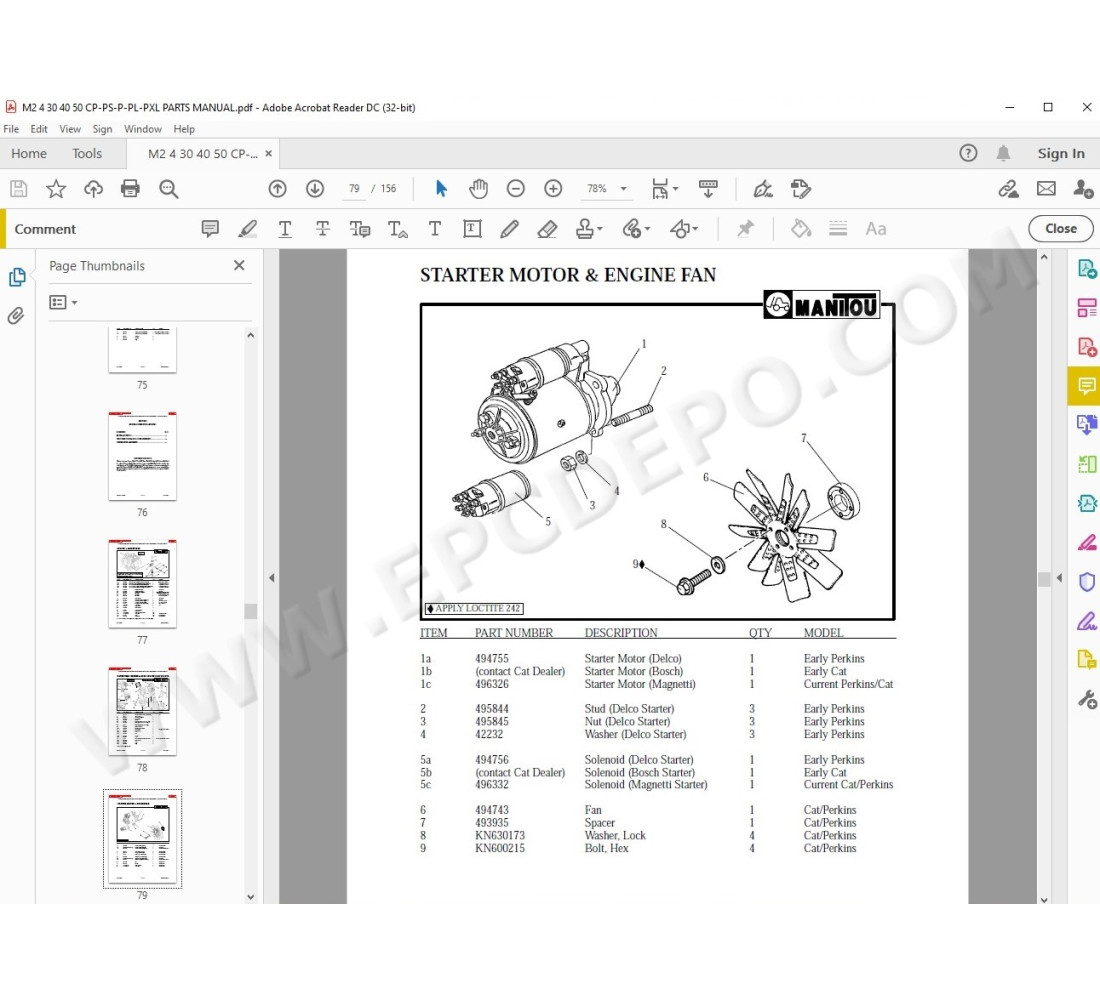

Engine, Mounts, Alternator, Filter, Water Pump, Gasket Set & Starter

COOLING SYSTEMS: ENGINE, TRANSMISSION & DRIVE AXLE
Radiator, Transmission/Axle Coolers & Misc. Hrdwr

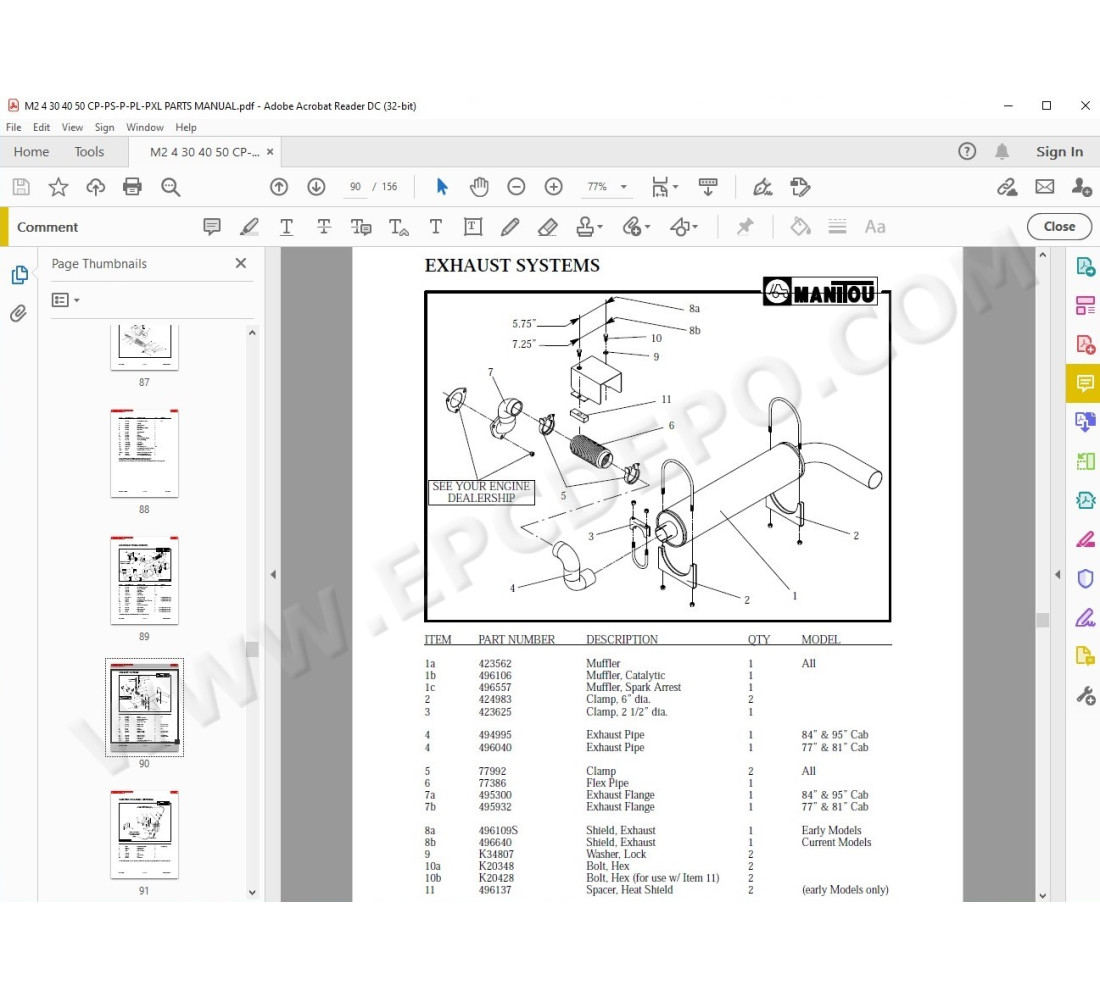

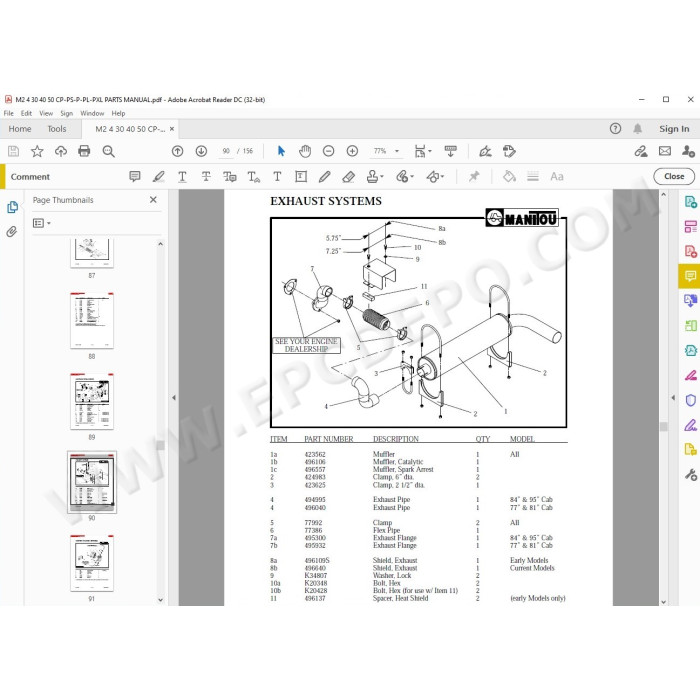

FUEL SYSTEM, AIR INTAKE & EXHAUST SYSTEMS
Tank, Pump, Filters & Misc. Hrdwr.

HYDRAULIC SYSTEMS (LESS STEERING SYSTEM)
Tank, Pump, Filters, Control Valves, Tilt/Side Shift Cylinders & Misc. Hrdwr.

ELECTRICAL SYSTEMS
Schematics, Harnesses, Battery & Cables, Lights, Instruments & Electrical Options

FRAME, HOOD, CAB & COUNTERWEIGHTS
Frame, Fenders, Firewall, Cab, Seat, Weights & Mast Side Shift

DECALS
Location & Pictures
