Model: LH40, LH50 Generation 6 / Tier 4
Brand: Liebherr
$60.00
Support
Online or remote support through teamviewer or anydesk
Express delivery
Download order or Express mail delivery services
Secure payment
Best, fast, easy and secure payment options

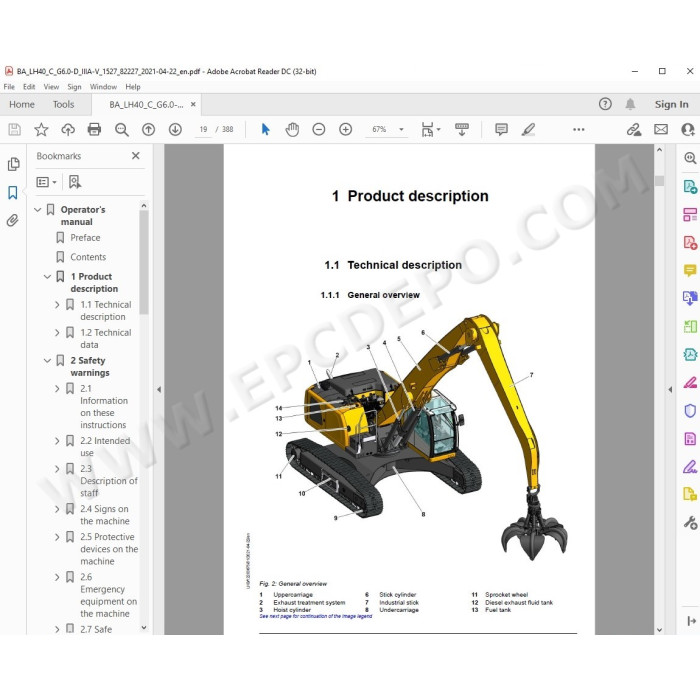

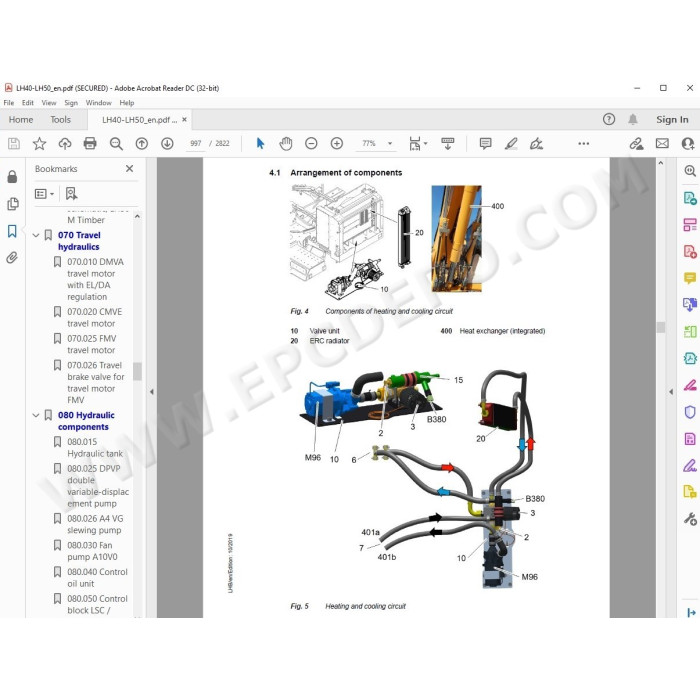

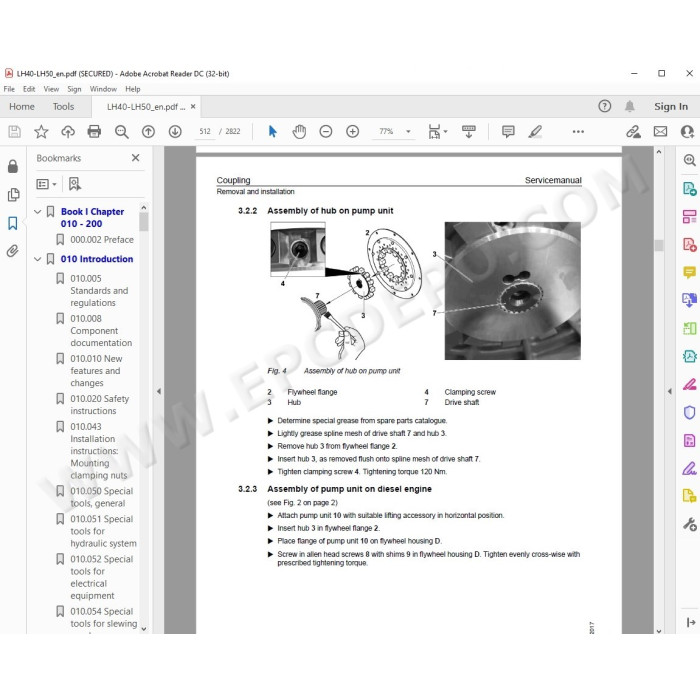

Description Liebherr Material Handling Excavator LH40 LH50 Generation 6 / Tier 4 service manual
Liebherr Material Handling Excavator LH40, LH50 Generation 6 / Tier 4 pdf service & repair + maintenance + operator manuals

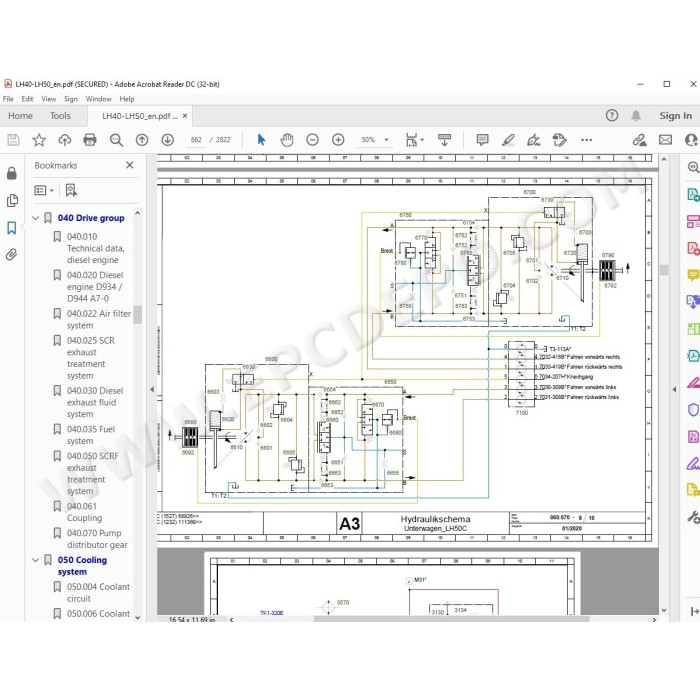

Technical documentation, specifications, troubleshooting, electrical diagrams, hydraulic schematics, disassembly, assembly, removal, installation instructions and other information
MODELS, TYPE COVERED:
LH40 M - 1215 Generation 6
LH50 M - 1216 Generation 6
LH50 MT - 1474 Generation 6
LH40 C - 1527 Generation 6
LH50 C - 1232 Generation 6
LH40 M - 1202 Tier 4
LH40 C - 1211 Tier 4
LH50 M - 1203 Tier 4
LH50 T - 1221 Tier 4
LH50 C - 1223 Tier 4
MANUAL CONTENT:
Introduction
Technical data
Maintenance
Drive group
Cooling system
Working hydraulics
Travel hydraulics
Hydraulic components
Steering system
Brake system
Electrical system
Transmission / travel gearbox
Axles / Drive
Steel components - basic machine
Working equipment

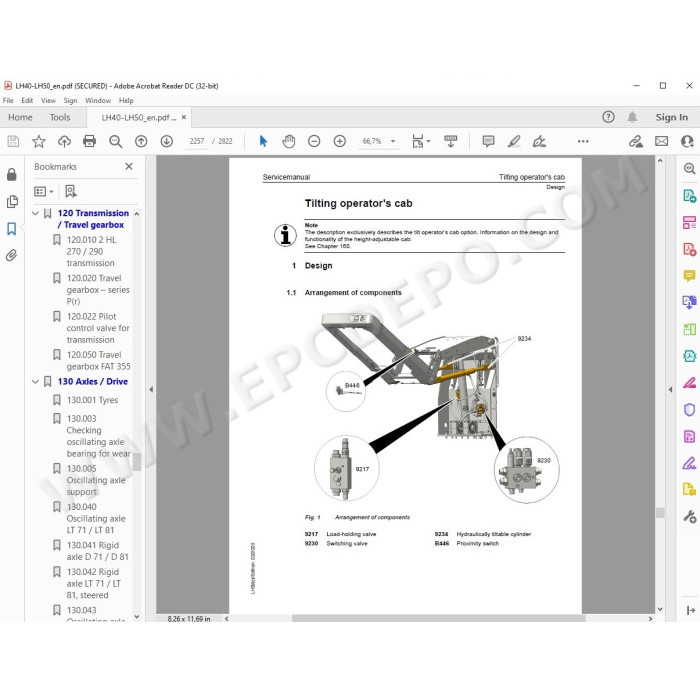

Operators cab / heating / air conditioning unit
Lubrication system
Slewing gear mechanism / slewing ring
Equipment / options
Main attributes Liebherr Material Handling Excavator LH40 LH50 Generation 6 / Tier 4 service manual
Release Date
Release Date
04.2021
Market
Market
All Regions
Language
Language
English
Size
Size
910 MB
OS
Operating system
Windows 11, Windows 10, Windows 8, Windows 7 / 32 & 64 bit
Type
Type
Service repair manual, operator manual
Vehicle - Equipment type
Vehicle type
Liebherr material handling excavator
Installation instruction
Instruction / Support
Included or online support with teamviewer or anydesk
Delivery
Delivery
Downloading or usb stick by mail
