Model: L524, L528, L538, L542 Tier 3 / Tier 4
Brand: Liebherr
$60.00
Support
Online or remote support through teamviewer or anydesk
Express delivery
Download order or Express mail delivery services
Secure payment
Best, fast, easy and secure payment options
Description Liebherr Wheel Loader L524 L528 L538 L542 Tier 3 / Tier 4 service manual
Liebherr Wheel Loader L524, L528, L538, L542 Tier 3 / Tier 4 pdf service & repair + operator manuals
Technical data, specifications, troubleshooting, maintenance, electrical wiring diagrams, hydraulic schematics, disassembly, assembly, removal, installation instructions and other information
MODELS COVERED:
L524 - 659
L524 - 1266
L528 - 660
L528 - 1267
L538 - 433
L538 - 1268
L542 - 435
L542 - 1269
MANUAL CONTENT:
General information

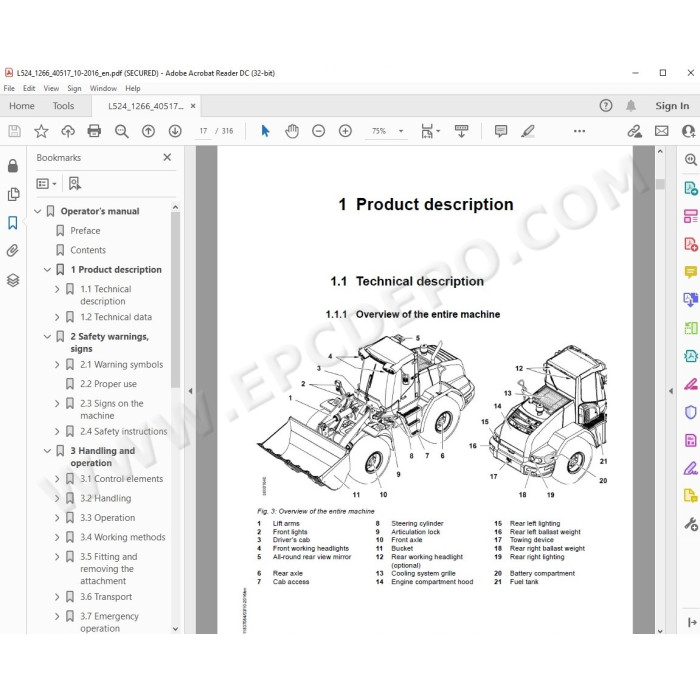

Product description

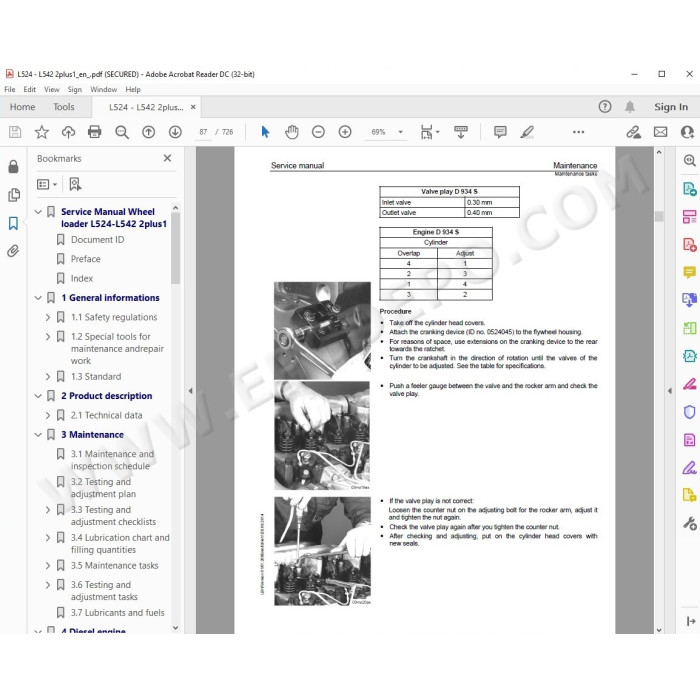

Maintenance

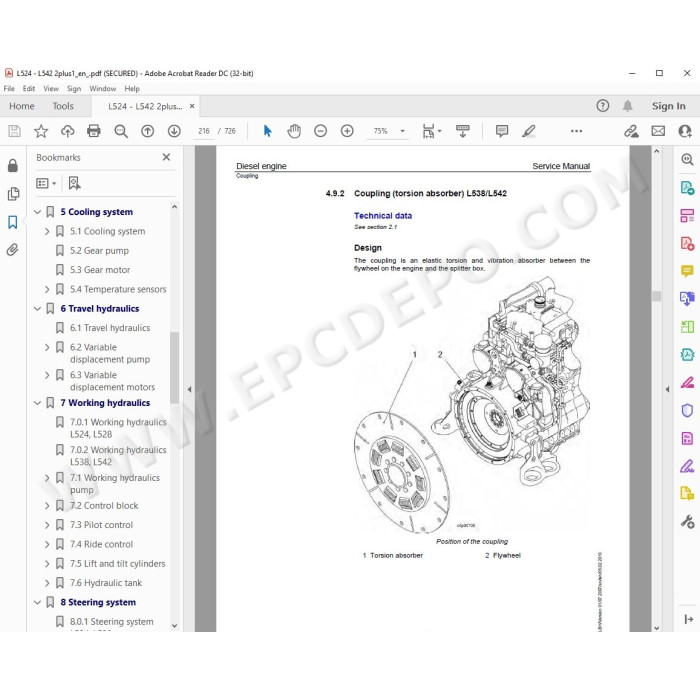

Diesel engine and pump distributor gear
Cooling system
Travel hydraulics
Working hydraulics
Steering system
Brake system

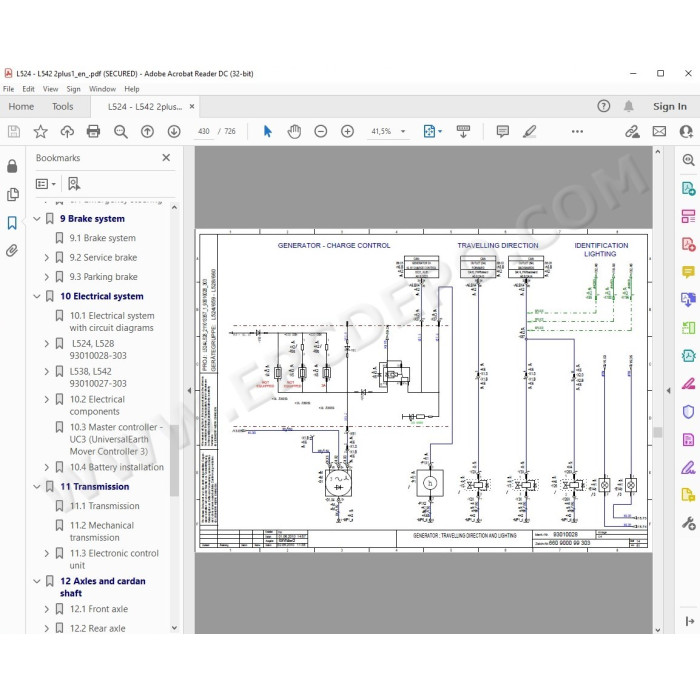

Electrical system
Transfer gear
Axles and cardan shaft
Machine frame and ballast weight
Central lubrication system
Coverings and access
Cab, heating and air-conditioning

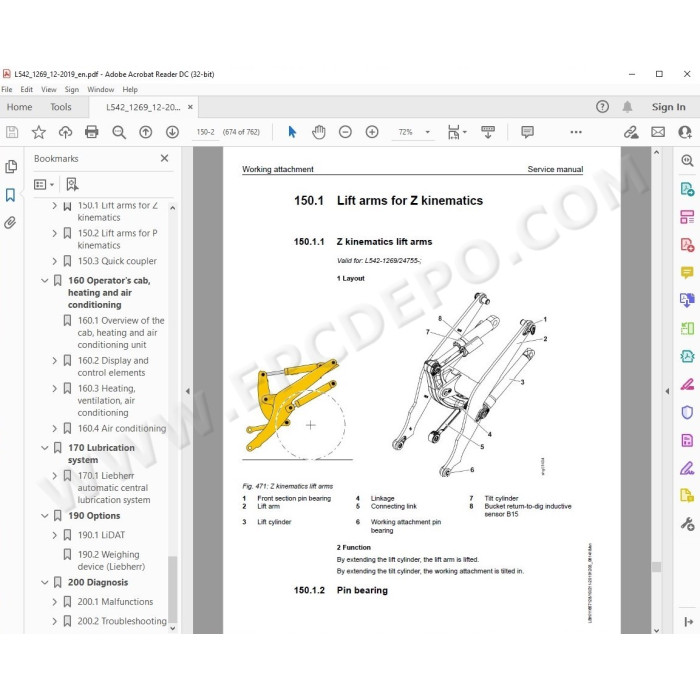

Lift arms and quick-change device
Equipment and accessories
Service codes and diagnosis
Main attributes Liebherr Wheel Loader L524 L528 L538 L542 Tier 3 / Tier 4 service manual
Release Date
Release Date
12.2019
Market
Market
All Regions
Language
Language
English
Size
Size
535 MB
OS
Operating system
Windows 11, Windows 10, Windows 8, Windows 7 / 32 & 64 bit
Type
Type
Service repair manual, operator manual
Vehicle - Equipment type
Vehicle type
Liebherr wheel loader
Installation instruction
Instruction / Support
Included or online support with teamviewer or anydesk
Delivery
Delivery
Downloading or usb stick by mail
