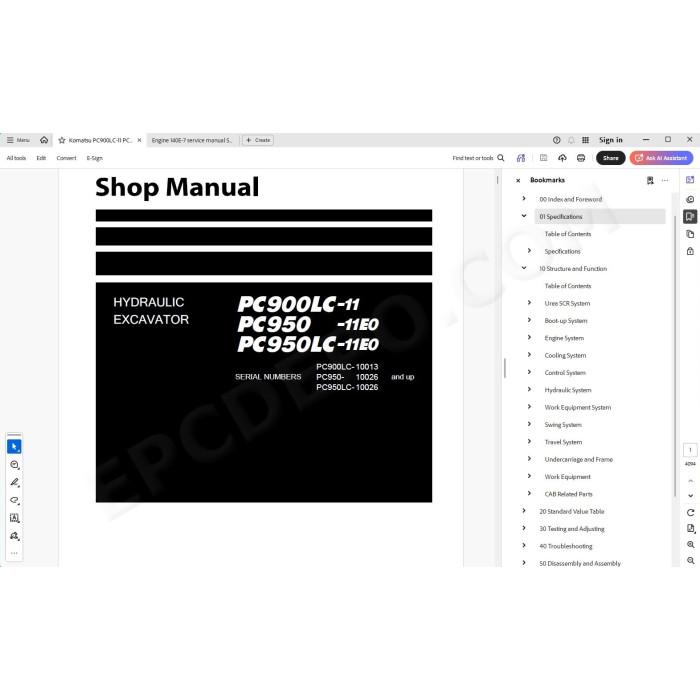

Komatsu Excavator PC900LC-11 PC950-11E0 PC950LC-11E0 workshop manual

Description Komatsu Excavator PC900LC-11 PC950-11E0 PC950LC-11E0 workshop manual

Komatsu Hydraulic Excavator PC900LC-11, PC950-11E0, PC950LC-11E0 pdf workshop service & repair manual

Serial numbers:
PC900LC-11 10013 and up
PC950-11E0 10026 and up
PC950LC-11E0 10026 and up

Technical data, specifications, maintenance, troubleshooting, electrical wiring diagrams, hydraulic schematics, adjusting, assembly, disassembly, removal, installation instructions and other information

MANUAL CONTENT:
Index and Foreword
Abbreviation List
Foreword, Safety, Basic Information
How to Read the Shop Manual
Safety Notice for Operation
Precautions to Prevent Fire
Procedures If Fire Occurs
Precautions When You Dispose of Waste Materials
Procedures for Exhaust Gas Regulations
Precautions for DEF
Store DEF
Precautions When You Handle Hydraulic Equipment
Precautions When You Disconnect and Connect Pipings
Precautions When You Handle Electrical Equipment
Precautions When You Handle Fuel System Equipment
Precautions When You Handle Intake System Equipment
Practical Use of KOMTRAX
Disconnect and Connect Push-Pull Type Coupler
Precautions for Disconnection and Connection of Connectors
How to Disconnect and Connect Deutsch Connector
How to Disconnect and Connect Slide Lock Type Connector
How to Disconnect and Connect Connector with Lock to Pull
How to Disconnect and Connect Connector with Lock to Push
How to Disconnect and Connect Connector with Housing to Rotate
How to Read the Codes for Electric Cable
Explanation of Terms for Maintenance Standard
Standard Tightening Torque Table
Conversion Table

Specifications
Specification Drawing
Working Range Drawings
Weight Table
How to Use Fuel, Coolant and Lubricants by Ambient Temperature

Structure and Function
Urea SCR System
Layout Drawing of Urea SCR System
Urea SCR System Diagram
Function of Urea SCR System
Component Parts of Urea SCR System
Boot-up System
Layout Drawing of Boot-up System
System Operating Lamp System
Battery Disconnect Switch
Engine System
Layout Drawing of Engine System
Engine Control System
Auto-Deceleration System
Automatic Low Idle System
Engine Automatic Warm-up System
Overheat Prevention System
Turbocharger Protection System
Automatic Idle Stop System
Component Parts of Engine System
Cooling System
Layout Drawing of Cooling System
Fan Speed Control System of Hydraulic Fan
Engine Output Control System of Hydraulic Fan
Fan Reverse Rotation System of Hydraulic Fan
Component Parts of Cooling System
Control System
Layout Drawing of Control System
Machine Monitor System
KomVision System
KOMTRAX System
Component Parts of Control System
Hydraulic System
Layout Drawing of Hydraulic System
Electronic OLSS
Engine and Pump Combined Control System
Component Parts of Hydraulic System
Work Equipment System
Layout Drawing of Work Equipment System
Work Equipment System Diagram
Machine Push-up System
Boom Shockless Control Function
PPC Lock System
Work Equipment and Travel Automatic Lock System
Component Parts of Work Equipment System
Swing System

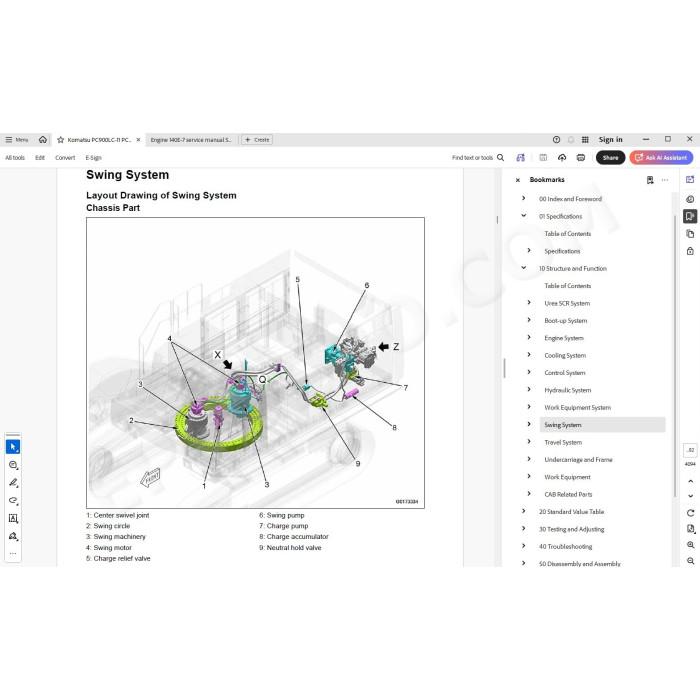

Layout Drawing of Swing System
Swing Control System Diagram
Component Parts of Swing System
Travel System
Layout Drawing of Travel System
System Diagram of Travel Control System
Component Parts of Travel System
Undercarriage and Frame
Layout Drawing of Undercarriage
Work Equipment
Structure of Work Equipment
Function of Work Equipment
Work Equipment Clearance Adjustment Shim
Bucket Clearance Adjustment Shim
CAB Related Parts
CAB
CAB Mount
CAB Tipping Stopper

Standard Value Table
Standard Value Table for Engine
Standard Value Table for Machine
Machine Posture and Procedures to Measure Performance

Testing and Adjusting
Precautions Before Work
Related Information on Testing and Adjusting
Tools for Testing and Adjusting
Sketch of Tools for Testing and Adjusting
Engine and Cooling System
Examine Engine Speed
Examine Boost Pressure
Examine Exhaust Gas Temperature
Examine Mass Air Flow and Temperature Sensor
Examine Exhaust Gas Color
Examine and Adjust Valve Clearance
Examine Compression Pressure
Examine Blowby Pressure
Examine Engine Oil Pressure
Examine EGR Valve and VGT Oil Pressure
Examine Fuel Pressure
Examine Fuel Return Rate and Leakage
Bleed Air from Fuel System
Examine Fuel Circuit for Leakage
Handle Cylinder Cut-out Mode Operation
Handle No-Injection Cranking Operation
Clean Fuel Doser
Write Injector Compensation Value to Engine Controller
Write Correction for Ash in Soot Accumulation to Engine Controller
Examine SCR Related Functions
Clean DEF Tank
Power Train
Examine Swing Circle Bearing Clearance
Undercarriage and Frame
Examine and Adjust Track Tension
Hydraulic System
Release Remained Pressure in Hydraulic Circuit
Examine and Adjust Oil Pressure in Work Equipment, Swing, and Travel Circuits
Examine and Adjust Oil Pressure in Control Circuit
Examine Pump EPC Solenoid Valve Outlet Pressure
Examine and Adjust Jet Sensor Differential Pressure
Test and Adjust Swing Oil Pressure
Bleed Air from Swing Pump
Test Outlet Pressure of Swing Neutral Hold Valve EPC Solenoid Valve
Open Swing Junction Valve When Swing Operation Cannot be Operated
Examine Outlet Pressure of Solenoid Valve
Examine Outlet Pressure of EPC Solenoid Valve

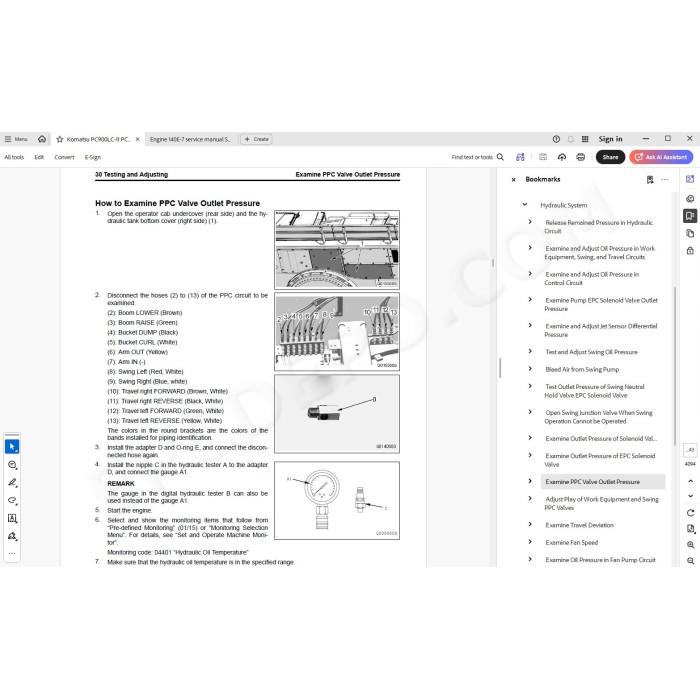

Examine PPC Valve Outlet Pressure
Adjust Play of Work Equipment and Swing PPC Valves
Examine Travel Deviation
Examine Fan Speed
Examine Oil Pressure in Fan Pump Circuit
Examine Fan Pump EPC Electric Current
Examine Fan Pump EPC Solenoid Valve Outlet Pressure
Examine Parts Which Cause Hydraulic Drift of Work Equipment
Examine Oil Leakage
Bleed Air from Hydraulic System
CAB Related Parts
Examine CAB Tipping Stopper
How to Adjust Mirrors
Electrical System
Set and Operate Machine Monitor
How to Start Up KOMTRAX System (Machine with Gateway Function Controller)
How to Stop Use of KOMTRAX System (Machine with Gateway Function Controller)
Adjust Rearview Camera Angle
Adjust KomVision Camera Angle
Adjust KomVision Related Function
Handle Voltage Circuit of Engine Controller
Handle Battery Disconnect Switch
Examine Diodes
Pm Clinic
Pm Clinic Service

Troubleshooting
Precautions Before Work
Related Information to Troubleshooting
General Troubleshooting Points
Troubleshooting Points for Aftertreatment System
Sequence of Events in Troubleshooting
Checks Before Troubleshooting
Inspection Procedure Before Troubleshooting
Test in Accordance with Testing Procedure
Preparation for Troubleshooting of Electrical System
Procedure for Troubleshooting

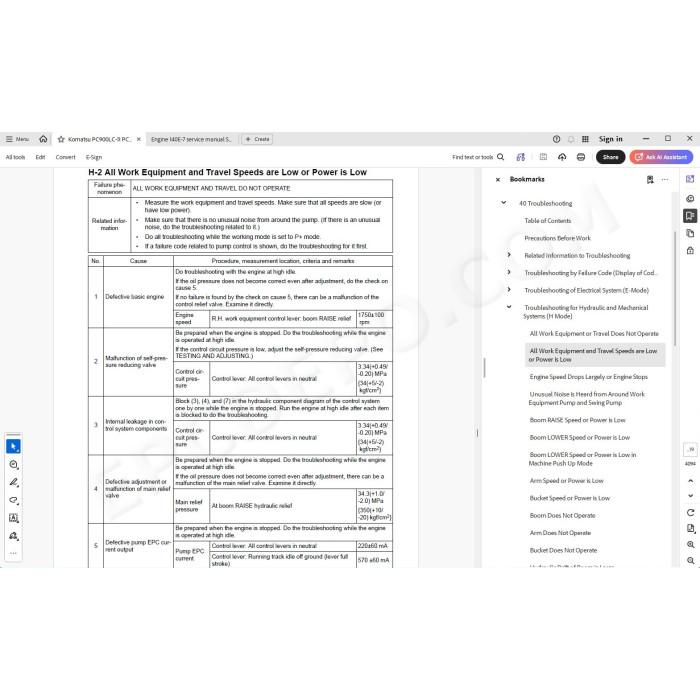

Symptom and Troubleshooting Numbers
Information Shown in Troubleshooting Table
How to Diagnose Open Circuit of Hydraulic Pressure Sensor System Wiring Harness
Connectors List
Connector Layout
Connector Contact Connection Table
T-Branch Box and T-Branch Adapter Table
Fuse Location Table
Precautions When You Clean and Replace KDPF (KCSF and KDOC)
Prepare Short Circuit Electrical Connector (For Failure Codes [CA1883] and [CA3135])
Failure Code Table
Troubleshooting by Failure Code (Display of Code)
Troubleshooting of Electrical System (E-Mode)
Troubleshooting for Hydraulic and Mechanical Systems (H Mode)
Troubleshooting of Engine (S-Mode)

Disassembly and Assembly
Precautions Before Work
Related Information on Disassembly and Assembly
How to Read This Manual
Coating Materials List
Special Tool List
Sketches of Special Tools
Prepare
Drain and Add Coolant
Drain and Add Hydraulic Oil
Drain and Add Fuel
Collect and Refill Refrigerant
Engine and Cooling System
Remove and Install Supply Pump Assembly
Remove and Install Injector Assembly
Remove and Install Fuel Doser Assembly
Remove and Install Cylinder Head Assembly
Remove and Install EGR Valve Assembly

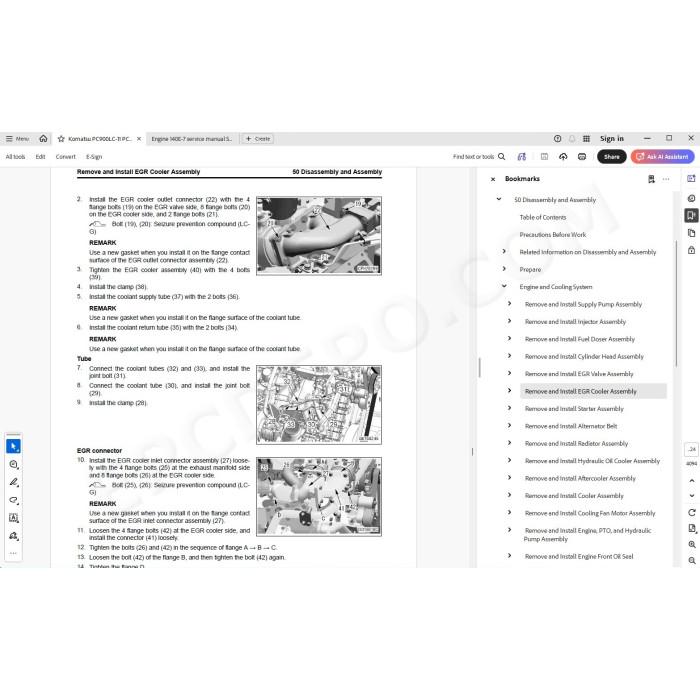

Remove and Install EGR Cooler Assembly
Remove and Install Starter Assembly
Remove and Install Alternator Belt
Remove and Install Radiator Assembly
Remove and Install Hydraulic Oil Cooler Assembly
Remove and Install Aftercooler Assembly
Remove and Install Cooler Assembly
Remove and Install Cooling Fan Motor Assembly
Remove and Install Engine, PTO, and Hydraulic Pump Assembly
Remove and Install Engine Front Oil Seal
Remove and Install Engine Rear Oil Seal
Remove and Install Engine Hood Assembly
Remove and Install Fuel Tank Assembly
Remove and Install DEF Tank Assembly
Remove and Install DEF Tank Sensor Flange Assembly
Remove and Install DEF Tank Sensor
Remove and Install DEF Tank Strainer
Remove and Install DEF Tank Filler Port Filter
Remove and Install KDPF Assembly
Disassemble and Assemble KDPF Assembly
Remove and Install SCR Assembly
Remove and Install KDPF and SCR Assembly
Remove and Install Bellows Pipe Assembly
Remove and Install KCCV Assembly
Remove and Install DEF Mixing Tube
Remove and Install DEF Injector
Remove and Install DEF Pump
Remove and Install DEF Hose
Remove and Install Air Cleaner Assembly
Remove and Install Air Conditioner Compressor Assembly
Remove and Install Air Conditioner Condenser Assembly
Power Train
Remove and Install PTO Assembly
Disassemble and Assemble PTO Assembly
Remove and Install Travel Motor and Final Drive Assembly
Disassemble and Assemble Final Drive Assembly

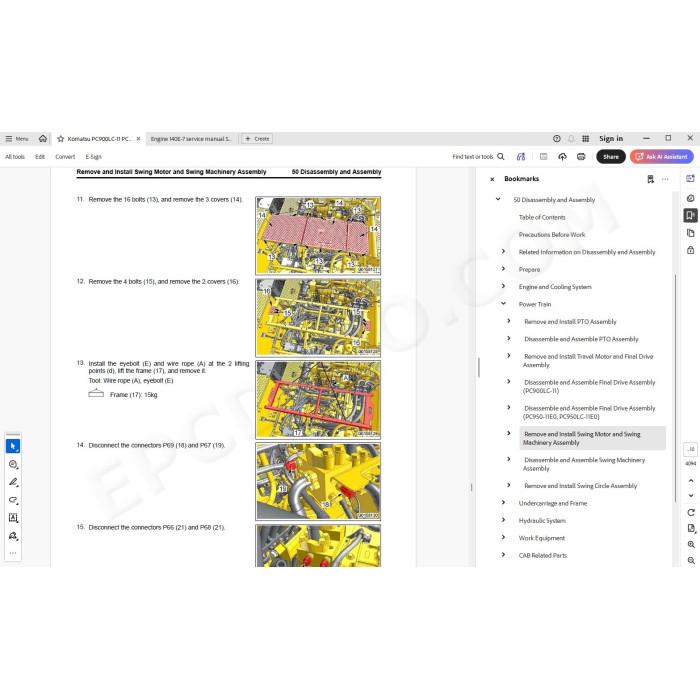

Remove and Install Swing Motor and Swing Machinery Assembly
Disassemble and Assemble Swing Machinery Assembly
Remove and Install Swing Circle Assembly
Undercarriage and Frame
Disassemble and Assemble One Track Link Assembly in Field
Separate and Connect Track Assembly
Remove and Install Idler Assembly
Remove and Install Idler Cushion Assembly
Disassemble and Assemble Idler Assembly
Disassemble and Assemble Idler Cushion Assembly
Remove and Install Track Roller Assembly
Remove and Install Carrier Roller Assembly
Disassemble and Assemble Track Roller Assembly
Disassemble and Assemble Carrier Roller Assembly
Remove and Install Revolving Frame Assembly
Remove and Install Counterweight Assembly
Remove and Install Counterweight Remove Cylinder Assembly
Hydraulic System
Remove and Install Center Swivel Joint Assembly
Disassemble and Assemble Center Swivel Joint Assembly
Remove and Install Hydraulic Tank Assembly
Remove and Install Hydraulic Pump Assembly
Remove and Install Control Valve Assembly
Remove and Install Neutral Hold Valve Assembly

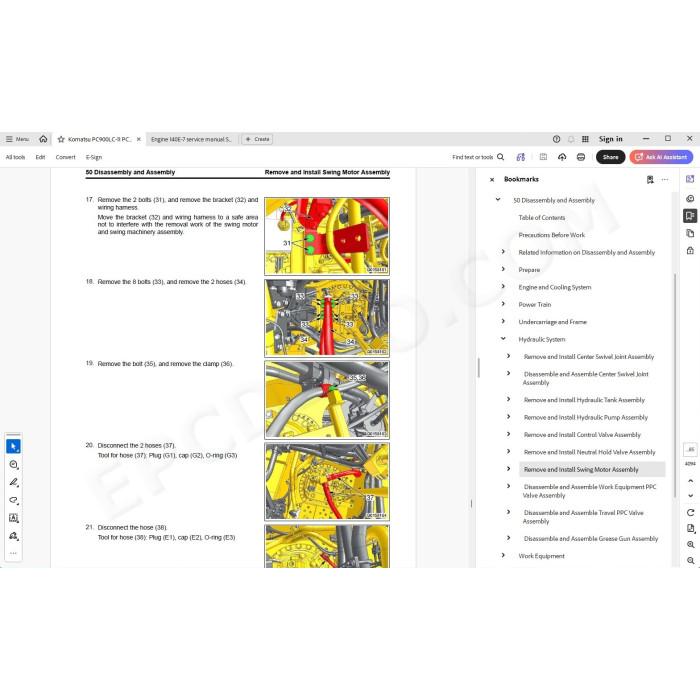

Remove and Install Swing Motor Assembly
Disassemble and Assemble Work Equipment PPC Valve Assembly
Disassemble and Assemble Travel PPC Valve Assembly
Disassemble and Assemble Grease Gun Assembly
Work Equipment
Remove and Install Boom Anti-drop Valve Assembly
Remove and Install Arm Anti-Drop Valve Assembly
Disassemble and Assemble Arm Anti-Drop Valve Assembly
Remove and Install Bucket Cylinder Assembly
Remove and Install Arm Cylinder Assembly
Remove and Install Boom Cylinder Assembly
Remove and Install Bucket Assembly
Remove and Install Arm Assembly
Remove and Install Boom Assembly
Disassemble and Assemble Counterweight Remover Cylinder Assembly
Disassemble and Assemble Boom Cylinder Assembly
Disassemble and Assemble Bucket Cylinder Assembly
Disassemble and Assemble Arm Cylinder Assembly
CAB Related Parts
Remove and Install Operator Cab Assembly
Remove and Install Operator Cab Glass (Adhered Glass)
Remove and Install Front Window Assembly
Remove and Install Floor Frame Assembly
Remove and Install Air Conditioner Unit Assembly
Remove and Install Operator Seat
How to Remove and Install Seat Belt
Remove and Install Front Wiper Assembly
Electrical System
Remove and Install Engine Controller Assembly
Remove and Install Pump Controller Assembly
Remove and Install KomVision Controller Assembly
Remove and Install Machine Monitor Assembly
Remove and Install Mass Air Flow and Temperature Sensor
Remove and Install KCCV Crankcase Pressure Sensor
Remove and Install KDPF Temperature Sensor
Remove and Install KDPF Differential Pressure Sensor
Remove and Install SCR Temperature Sensor
Remove and Install Ammonia Sensor
Remove and Install SCR Outlet NOx Sensor
Remove and Install KomVision Camera
Remove and Install Gateway Function Controller Assembly

Maintenance Standard
Engine and Cooling System
Maintenance Standard for Engine Mount
Maintenance Standard for PTO
Maintenance Standard for Cooling System
Maintenance Standard of Cooling Fan Pump of Oil Cooler
Maintenance Standard of Cooling Fan Motor of Radiator
Maintenance Standard of Cooling Fan Motor of Oil Cooler
Power Train
Maintenance Standard for Swing Circle
Maintenance Standard for Swing Machinery
Maintenance Standard for Final Drive
Maintenance Standard for Sprocket
Maintenance Standard for Sprocket Tooth Profile Full-Scale Drawing
Undercarriage and Frame
Maintenance Standard of Track Frame and Idler Cushion
Maintenance Standard for Idler
Maintenance Standard for Track Roller
Maintenance Standard for Carrier Roller
Maintenance Standard for Track Shoes
Maintenance Standard for Double Shoes
Hydraulic System
Maintenance Standard for Main Pump
Maintenance Standard of Swing Pump
Maintenance Standard of Neutral Hold Valve
Maintenance Standard of Charge Pump and Radiator Cooling Fan Pump
Maintenance Standard for Swing Motor
Maintenance Standard for Swing Junction Valve
Maintenance Standard for Travel Motor
Maintenance Standard for Control Valve
Maintenance Standard for Variable Back Pressure Valve
Maintenance Standard for Counterweight Remover Cylinder
Maintenance Standard of Boom Regeneration Valve
Maintenance Standard of Lock Valve (Common to Boom Lock Valve and Arm Lock Valve)
Maintenance Standard of Quick Return Valve
Maintenance Standard for Work Equipment and Swing PPC Valve
Maintenance Standard for Travel PPC Valve
Maintenance Standard for Solenoid Valve
Maintenance Standard for Center Swivel Joint
Maintenance Standard for Arm Anti-Drop Valve
Work Equipment
Maintenance Standard for Work Equipment Linkage
Maintenance Standard for Boom Cylinder
Maintenance Standard for Arm Cylinder
Maintenance Standard for Bucket Cylinder

Appendix
Precautions Before Work
Air Conditioner System
Precautions for Refrigerant
Air Conditioner Component
Specifications of Air Conditioner
Structure and Function of Refrigeration Cycle
Outline of Refrigeration Cycle
Component Parts of Air Conditioner System
Air Conditioner Unit
Component Parts of Air Conditioner Unit
Air Conditioner Controller
Compressor
Condenser
Receiver Drier
Air Conditioner Related Sensors
Explanation of Procedure for Test of and Troubleshooting of Air Conditioner
Circuit Diagram and Configuration of Connector Pins of Air Conditioner
System Diagram of Air Conditioner
Input and Output Signals of Air Conditioner Controller
Locations of Air Conditioner Parts and Layout of Connectors
Examine Air Leakage (Duct)
How to Examine Air Leakage (Duct)
Examine Air Conditioner with Self-Diagnosis Function
Open the Electrical System Abnormality Record Screen in Service Mode of Machine Monitor
Examine Vent (Mode) Changeover
How to Examine Vent (Mode) Changeover
Examine Fresh/Recirc Air Changeover
How to Examine Fresh/Recirc Air Changeover
Examine Sunlight Sensor
How to Examine Sunlight Sensor
Examine Refrigerant (Dual) Pressure Switch
How to Examine Refrigerant (Dual) Pressure Switch
Examine Relay
How to Examine Relay
Air Conditioner Troubleshooting Chart
Information Shown in Troubleshooting Table
A-1 Troubleshooting for Power Supply System (Air Conditioner Does Not Operate)
A-2 Troubleshooting for Compressor and Refrigerant System (Air is Not Cooled)
A-3 Troubleshooting for Blower Motor System (No Air Comes Out or Air Flow is Abnormal)
A-4 Troubleshooting for Fresh/Recirc Air Changeover
Troubleshooting by Gauge Pressure
Connect Service Tool
How to Connect Service Tool
Precautions for Disconnection and Connection of Air Conditioner Piping
Handle Compressor Oil

Circuit Diagrams
How to Read the Codes for Electric Cable

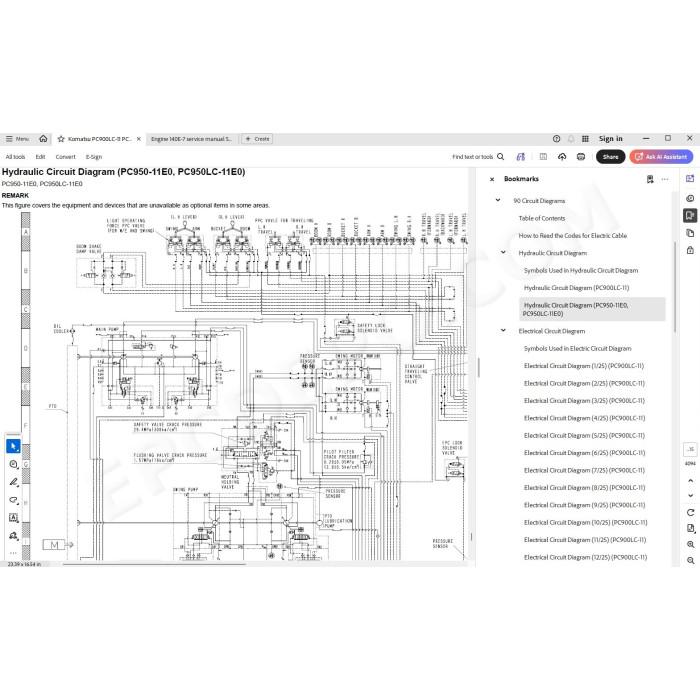

Hydraulic Circuit Diagram
Symbols Used in Hydraulic Circuit Diagram
Electrical Circuit Diagram
Symbols Used in Electric Circuit Diagram

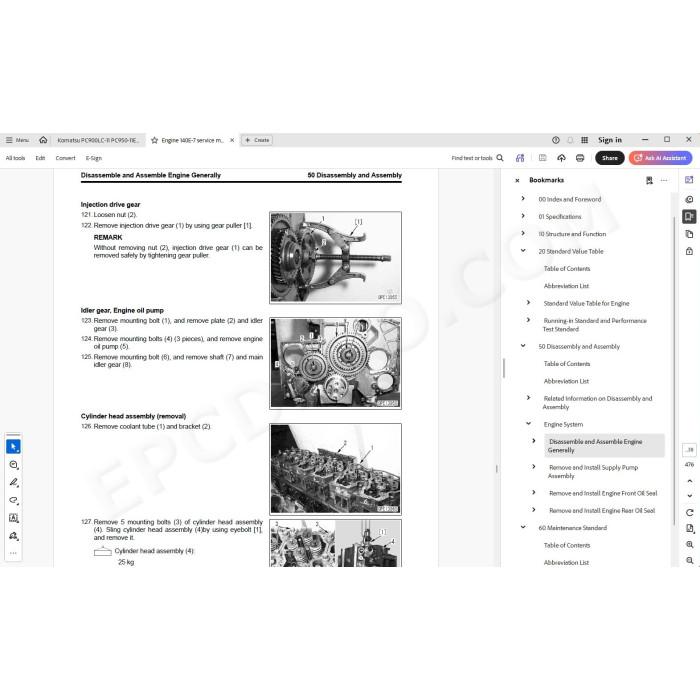

Engine SAA6D140E-7 workshop service manual
