Komatsu Excavator PC100-6 PC120-6 PC120LC-6 PC130-6 service manual

Description Komatsu Excavator PC100-6 PC120-6 PC120LC-6 PC130-6 service manual

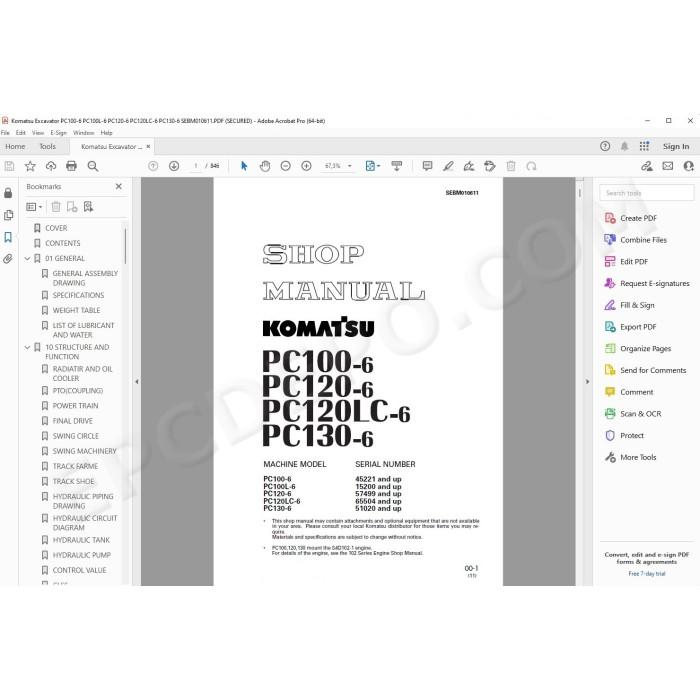

Komatsu Hydraulic Excavator PC100-6, PC120-6, PC120LC-6, PC130-6 pdf workshop service repair manual + operation & maintenance manual

Serial numbers:
PC100-6 40001 and up, 45221 and up
PC100L-6 15200 and up
PC120-6 45001 and up, 57499 and up
PC120LC-6 65504 and up
PC130-6 51020 and up

Specifications, testing, adjusting, troubleshooting, maintenance, technical documentation, electrical wiring diagrams, hydraulic schematics, assembly, disassembly, removal, installation instructions and other information

MANUAL CONTENT:
GENERAL
Specification dimension drawings
Weight table
List of lubricants and water

STRUCTURE AND FUNCTION
Radiator and oil cooler
PTO (Coupling)
Power train
Swing circle
Swing machinery
Track frame
Idler
Idler cushion
Carrier roller
Track roller
Track shoe
Hydraulic piping drawing

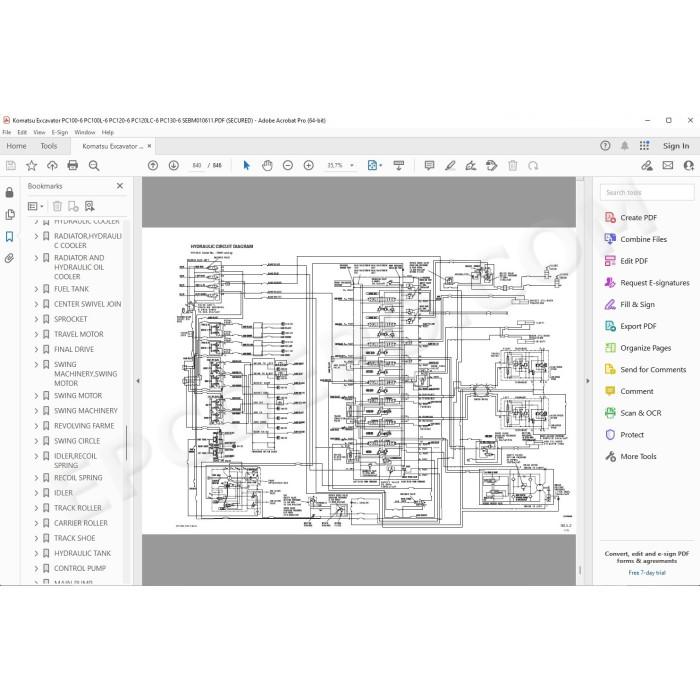

Hydraulic circuit diagram
Hydraulic tank
Hydraulic pump
Control valve
CLSS
Swing motor
Center swivel joint

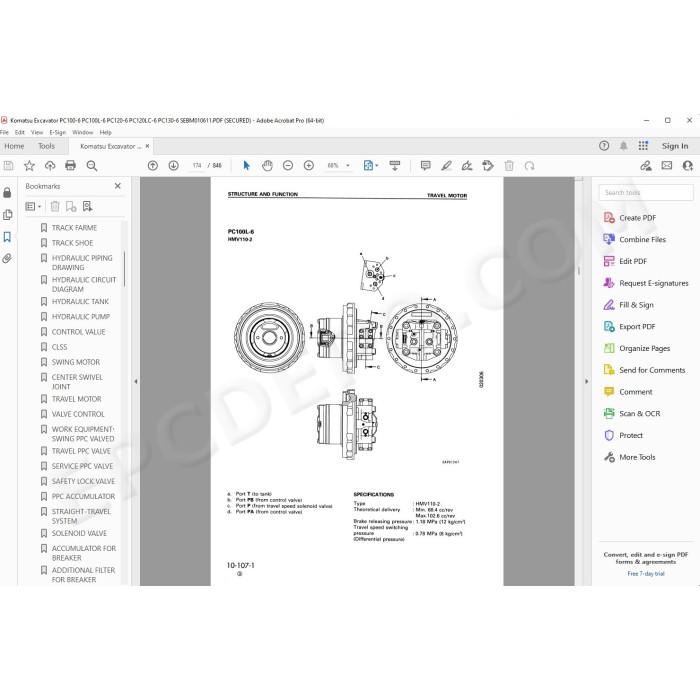

Travel motor
Valve control
Work equipment Swing PPC valve
Travel PPC valve
Service PPC valve
Safety lock valve
PPC accumulator
PPC shuttle Travel junction valve
EPC Solenoid valve
Boom holding valve
Hydraulic cylinder
Accumulator for breaker
Additional filter for breaker
Work equipment
Electrical wiring diagram
Electrical circuit diagram
Engine control system
Electronic control system
Machine monitor system

TESTING AND ADJUSTING
Table of judgement standard value
Standard value table for electrical parts
Tools for testing, adjusting, and troubleshooting
Measuring engine speed
Measuring exhaust gas color
Adjusting valve clearance
Measuring compression pressure
Measuring blowby pressure
Testing and adjusting fuel injection timing
Measuring engine oil pressure
Testing and adjusting fan belt tension
Testing and adjusting belt tension for air conditioner compressor
Adjusting engine speed sensor
Testing and Adjusting governor motor lever stroke
Testing clearance of swing circle bearing
Testing and adjusting track shoe tension
Testing and adjusting hydraulic pressure in
work equipment, swing, travel circuit
Testing and adjusting TVC valve output pressure (Servo piston input pressure)
Testing and adjusting LS valve output pressure (Servo piston input pressure) and LS differential pressure
Testing and adjusting variable throttle valve
Testing and adjusting control pump circuit oil pressure
Testing EPC valve solenoid valve output pressure
Measuring PPC valve output pressure and testing PPC shuttle valve
Adjusting work equipment swing PPC valve
Adjusting travel lever
Testing travel deviation
Testing locations causing hydraulic drift of work equipment
Measuring oil leakage
Releasing remaining pressure in hydraulic circuit
Bleeding air
Troubleshooting

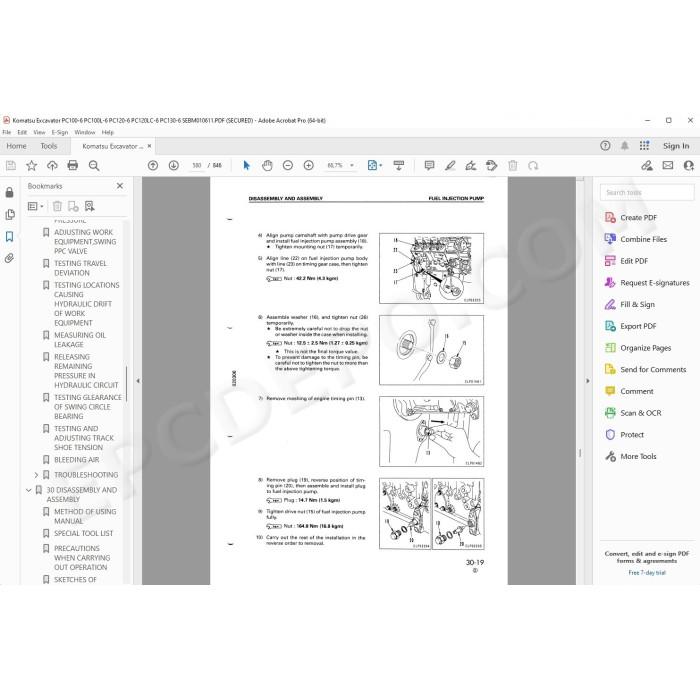

DISASSEMBLY AND ASSEMBLY
PRECAUTIONS WHEN CARRYING OUT OPERATION
SPECIAL TOOL LIST
STARTING MOTOR ASSEMBLY
ALTERNATOR
AIR CONDITIONER COMPRESSOR
CONDENSER
ENGINE OIL COOLER CORE
FUEL INJECTION PUMP
WATER PUMP
NOZZLE HOLDER
TURBOCHARGER
THERMOSTAT
ENGINE FRONT OIL SEAL
ENGINE REAR OIL SEAL
GOVERNOR MOTOR
CYLINDER HEAD
ENGINE HYDRAULIC PUMP
HYDRAULIC OIL COOLER
RADIATOR HYDRAULIC OIL COOLER
FUEL TANK
CENTER SWIVEL JOINT
SPROCKET
TRAVEL MOTOR

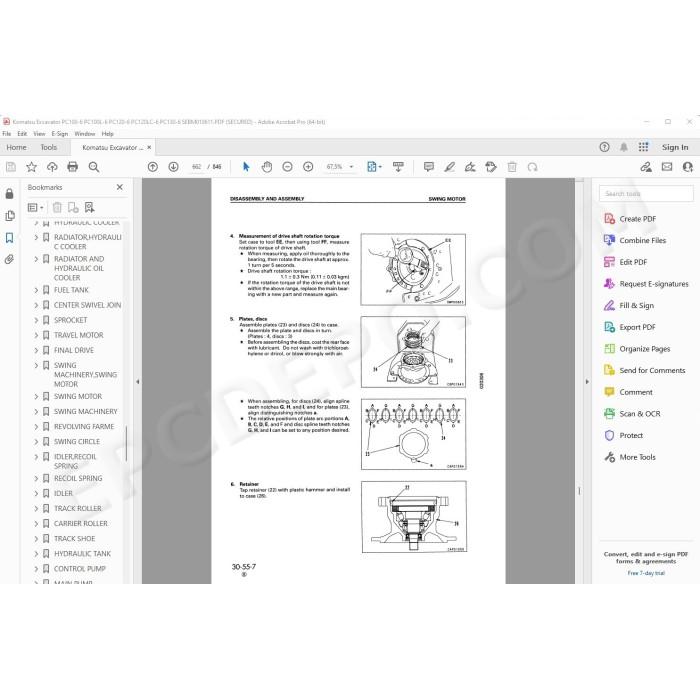

SWING MACHINERY SWING MOTOR
SWING MACHINERY
SWING MOTOR
REVOLVING FRAME
SWING CIRCLE
IDLER RECOIL SPRING
RECOIL SPRING

MAINTENANCE STANDARD
Swing machinery
Swing circle
Track frame
Idler
Carrier roller
Track roller
Sprocket
Track shoe
Hydraulic pump
Control valve
Swing motor
Center swivel joint
Work equipment swing PPC valve
Travel PPC valve
Service PPC valve
PPC shuttle travel junction valve
EPC solenoid valve
Boom holding valve
Hydraulic cylinder
Work equipment

Hydraulic circuit diagram
Electrical circuit diagram

Engine S4D95L-1, S4D102-1 series workshop service repair manual
