Komatsu Bulldozer D475A-5 service & repair manual

Description Komatsu Bulldozer D475A-5 service & repair manual

Komatsu Bulldozer D475A-5 pdf workshop service repair manual + operation & maintenance manual

Serial number 20001 and up

SERVICE MANUAL CONTENT:
GENERAL
SPECIFICATION DRAWINGS
SPECIFICATIONS
WEIGHT TABLE
FUEL, COOLANT AND LUBRICANTS

STRUCTURE, FUNCTION AND MAINTENANCE STANDARD
RADIATOR AND OIL COOLER
ENGINE MOUNT
POWER TRAIN
POWER TRAIN HYDRAULIC
EQUIPMENT ARRANGEMENT
DIAGRAM
DAMPER AND UNIVERSAL JOINT
POWER TRAIN UNIT
TORQUE CONVERTER AND PTO
TORQUE CONVERTER VALVE
TORQUE CONVERTER LOCK-UP
CONTROL SYSTEM
SCAVENGING PUMP
TRANSMISSION CONTROL
TRANSMISSION
TRANSMISSION ECMV
TRANSMISSION CLUTCH ECMV
PRIORITY VALVE
LUBRICATING OIL RELIEF VALVE
POWER TRAIN, LUBRICATION PUMP
STEERING, BRAKE CONTROL
FINAL DRIVE
STEERING UNIT
STEERING ECMV
STEERING CLUTCH ECMV
STEERING BRAKE ECMV
PARKING BRAKE VALVE
SUDDEN STOP PREVENTION VALVE
SPROCKET
TRACK FRAME
RECOIL SPRING
IDLER
TRACK ROLLER
CARRIER ROLLER
TRACK ROLLER BOGIE
TRACK SHOE
MAIN FRAME
SUSPENSION
WORK EQUIPMENT HYDRAULIC

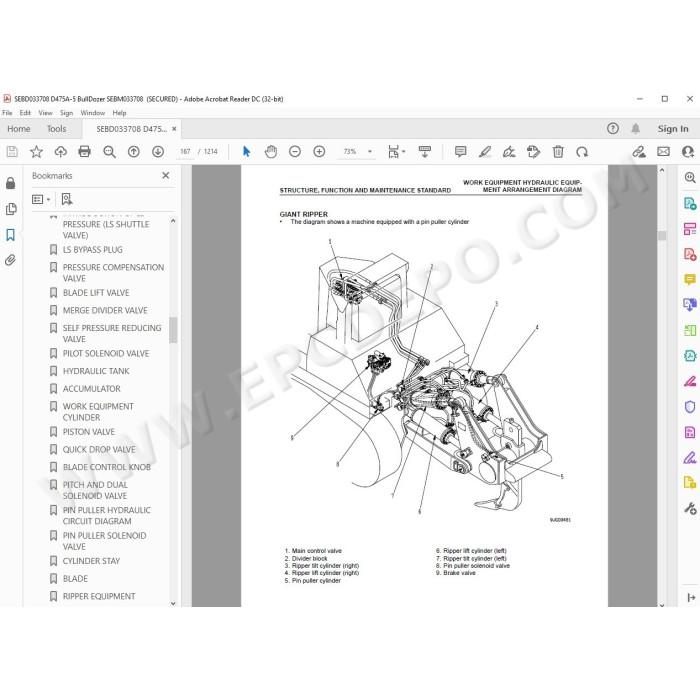

EQUIPMENT ARRANGEMENT
DIAGRAM
PPC CONTROL PIPING DIAGRAM
WORK EQUIPMENT CONTROL
WORK EQUIPMENT PUMP
COOLING FAN PUMP
COOLING FAN MOTOR
PPC VALVE
ELECTRIC LEVER (STEERING)
CONTROL VALVE
MAIN RELIEF VALVE
CLSS
UNLOAD VALVE
INTRODUCTION OF LS PRESSURE (LS SHUTTLE VALVE)
LS BYPASS PLUG
PRESSURE COMPENSATION VALVE
BLADE LIFT VALVE
MERGE DIVIDER VALVE
SELF PRESSURE REDUCING VALVE
PILOT SOLENOID VALVE
HYDRAULIC TANK
ACCUMULATOR
WORK EQUIPMENT CYLINDER
PISTON VALVE
QUICK DROP VALVE
BLADE CONTROL KNOB
PITCH AND DUAL SOLENOID VALVE
PIN PULLER HYDRAULIC CIRCUIT DIAGRAM
PIN PULLER SOLENOID VALVE
CYLINDER STAY
BLADE
RIPPER EQUIPMENT
CAB MOUNT
CAB
AIR CONDITIONER
ENGINE CONTROL
ENGINE CONTROL SYSTEM
DECELERATION POTENTIOMETER
ENGINE CONTROL SYSTEM WITH
ELECTRONIC ENGINE THROTTLE
CONTROLLER
FUEL INJECTION PUMP WITH
ELECTRONIC GOVERNOR
MONITOR SYSTEM
MONITOR PANEL
SENSORS

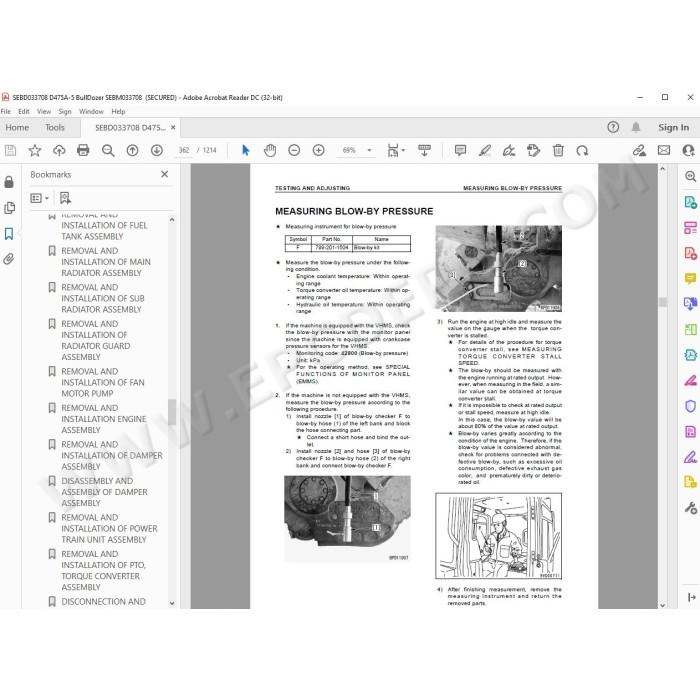

TESTING AND ADJUSTING
STANDARD VALUE TABLE FOR ENGINE
STANDARD VALUE TABLE FOR CHASSIS
TESTING AND ADJUSTING
TROUBLESHOOTING

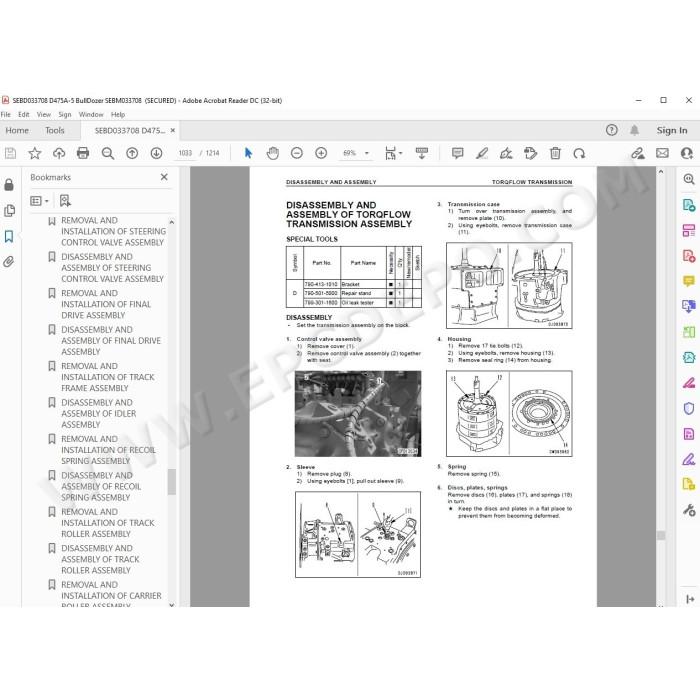

DISASSEMBLY AND ASSEMBLY

OTHERS
POWER TRAIN HYDRAULIC CIRCUIT DIAGRAM
WORK EQUIPMENT HYDRAULIC CIRCUIT DIAGRAM

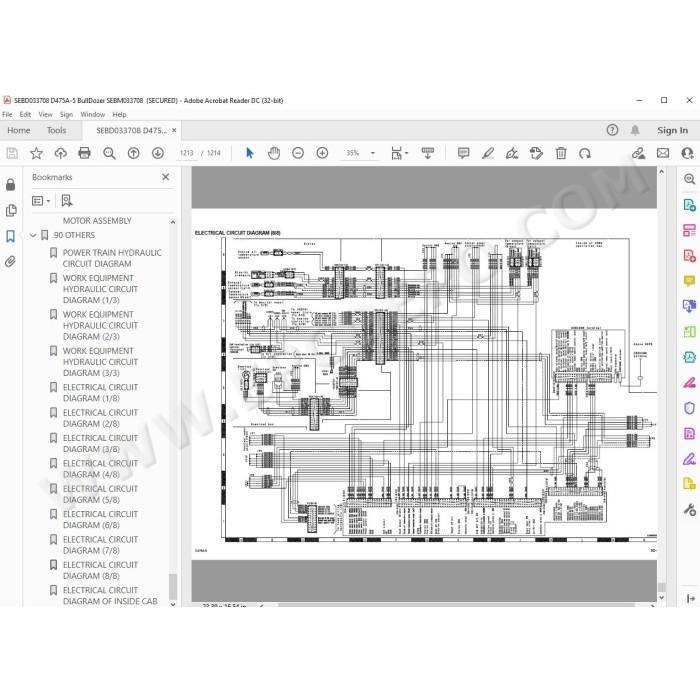

ELECTRICAL CIRCUIT DIAGRAM
ELECTRICAL CIRCUIT DIAGRAM OF INSIDE CAB
