Description JLG Compact Crawler Boom X20JP spare parts manual
03.2022 / All Regions / 1 CD / Windows OS, MacOS, Linux / 32 & 64 bit

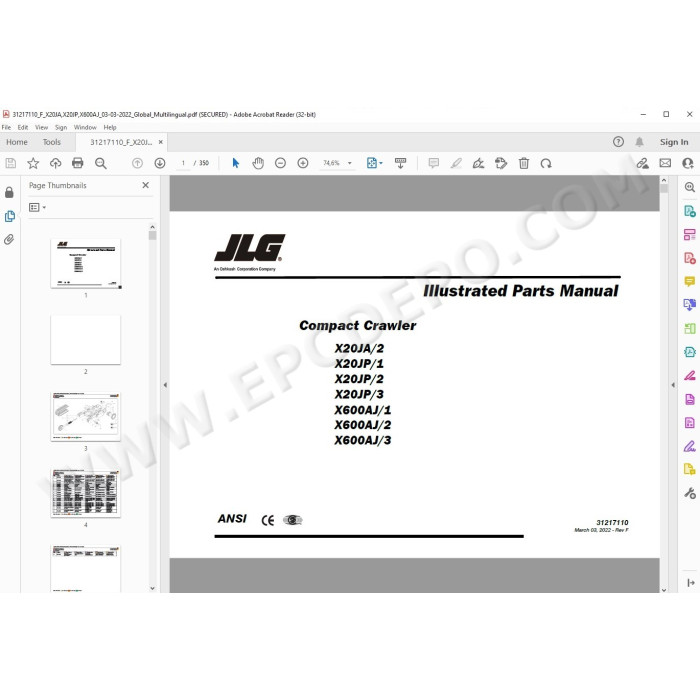

JLG Compact Crawler Boom X20JP PDF spare parts manual
Language: English
PARTS MANUAL CONTENT:
TRACKED UNDERCARRIAGE
HYDRAULIC EXTENSION

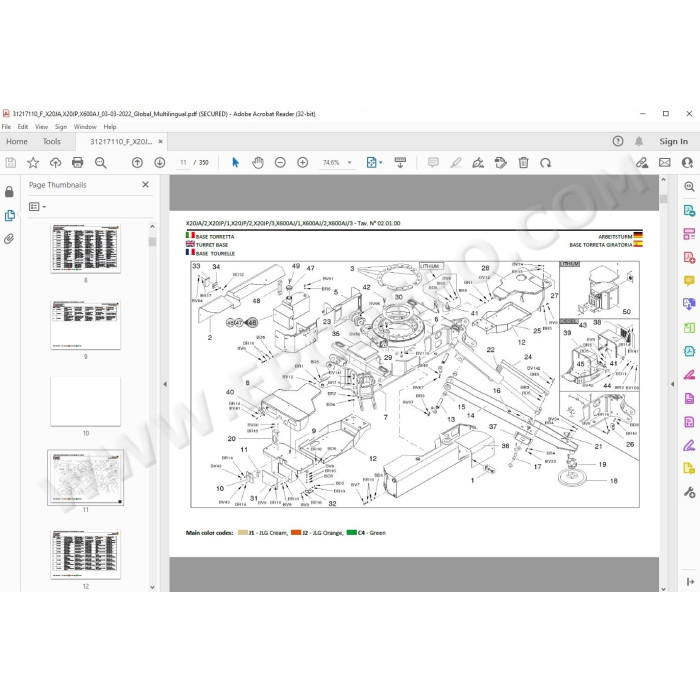

TURRET BASE
OIL TANK
CHASSIS ELECTRICAL COMPONENTS
ARMS SUPPORT

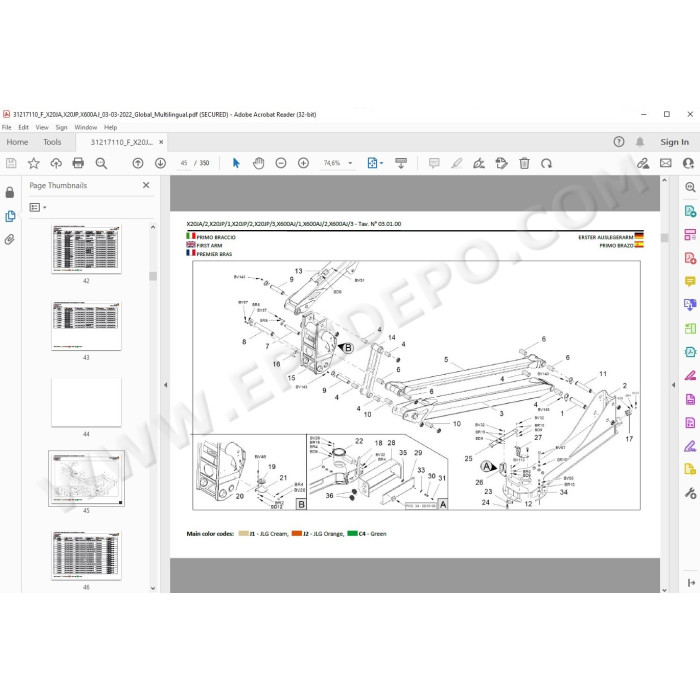

FIRST ARM
SECOND ARM
THIRD ARM
FIRST EXTENSION ARM
SECONDO EXTENSION ARM
ARMS SUPPORT
ENGINE COUPLING

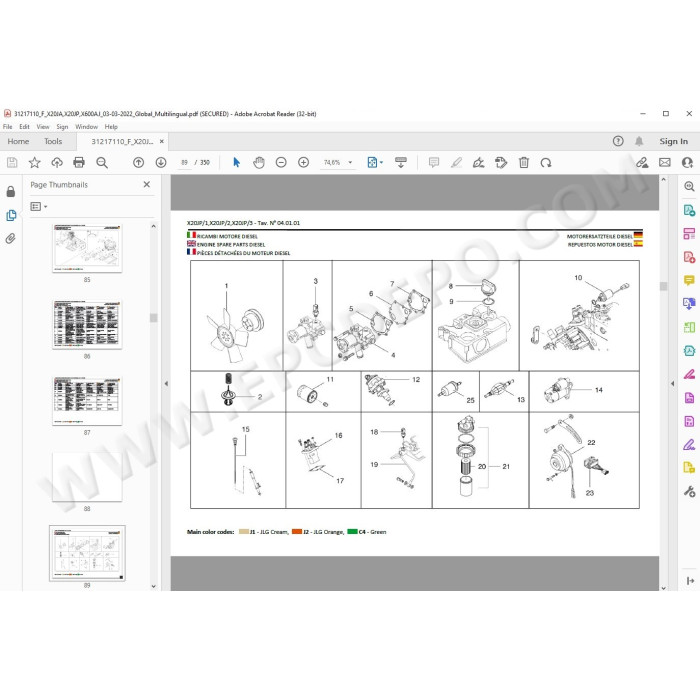

ENGINE SPARE PARTS
ELECTRIC MOTOR
SUPPLY AND DISCHARGE HYDRAULIC SYSTEM
HYDRAULIC DISTRIBUTORS
HYDRAULIC SYSTEM FOR TRACTION
HYDRAULIC SYSTEM UNDERCARRIAGE EXPANSION
STABILIZERS CYLINDERS HYDRAULIC SYSTEM
1-2 ARMS HYDRAULIC SYSTEM
3 ARM HYDRAULIC SYSTEM
TELESCOPIC HYDRAULIC SYSTEM
JIB HYDRAULIC SYSTEM
LEVELING CYLINDERS HYDRAULIC SYSTEM
CAGE ROTATION HYDRAULIC SYSTEM
COMPRESSED AIR HYDRAULIC SYSTEM
CYLINDERS

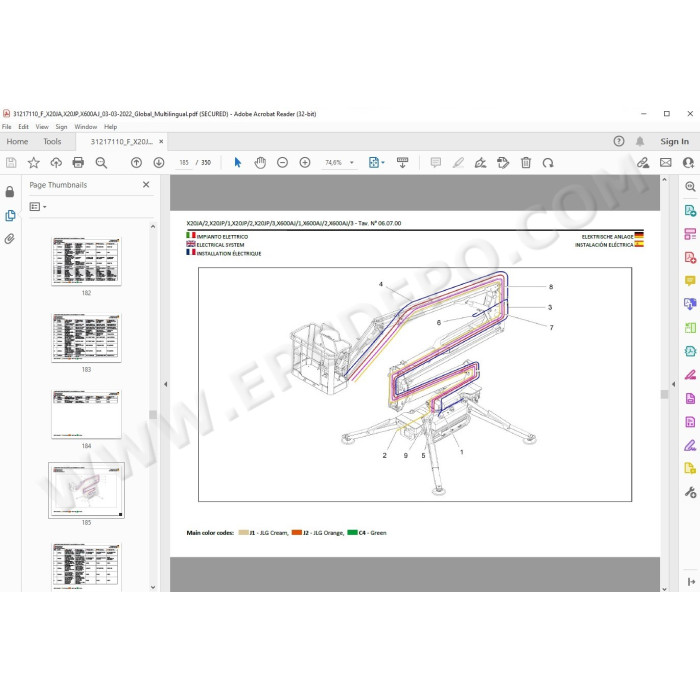

ELECTRICAL SYSTEM COMPONENTS
REMOTE CONTROL
ELECTRICAL SYSTEM DIESEL
STICKER
