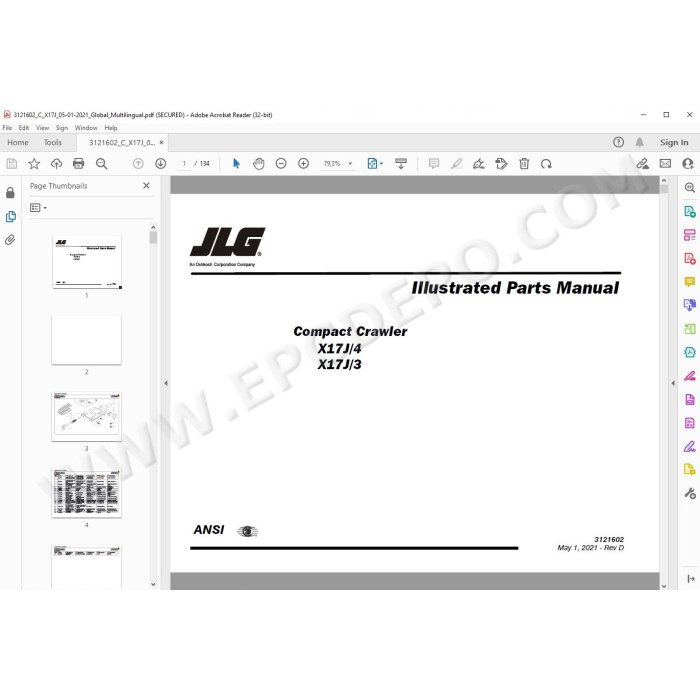

Description JLG Compact Crawler Boom X17J spare parts manual
JLG Compact Crawler Boom X17J pdf spare parts manual
Generation 3 & 4
PARTS MANUAL CONTENT:
TRACKED UNDERCARRIAGE
HYDRAULIC EXTENSION

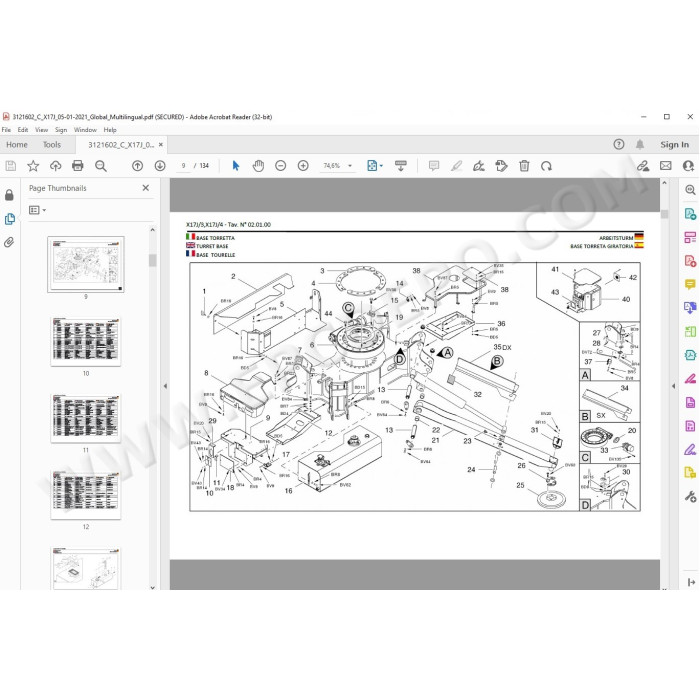

TURRET BASE
OIL TANK
CHASSIS ELECTRICAL COMPONENTS
ARMS SUPPORT
FIRST ARM
SECOND ARM
THIRD ARM
FIRST EXTENSION ARM
SECONDO EXTENSION ARM
ARMS SUPPORT

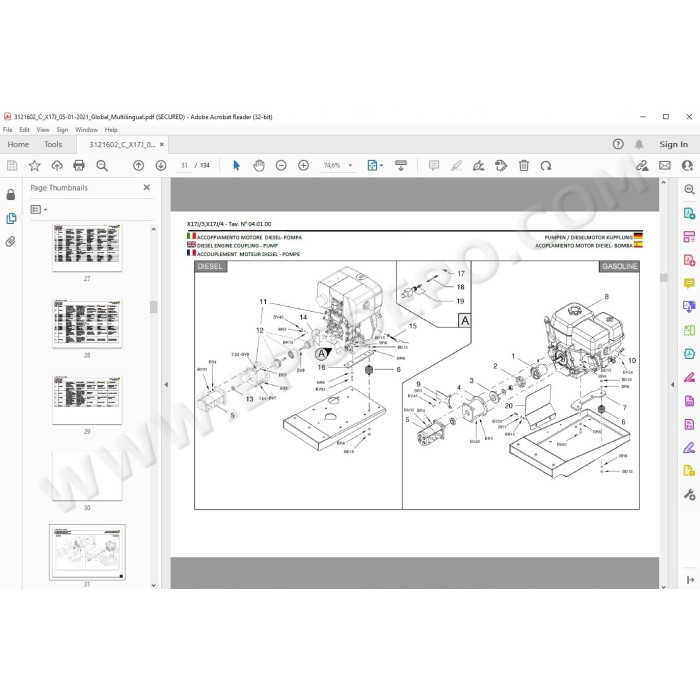

ENGINE COUPLING
ENGINE SPARE PARTS
ELECTRIC MOTOR
SUPPLY AND DISCHARGE HYDRAULIC SYSTEM
HYDRAULIC DISTRIBUTORS
HYDRAULIC SYSTEM FOR TRACTION
HYDRAULIC SYSTEM UNDERCARRIAGE EXPANSION
STABILIZERS CYLINDERS HYDRAULIC SYSTEM
1-2 ARMS HYDRAULIC SYSTEM
3 ARM HYDRAULIC SYSTEM
TELESCOPIC HYDRAULIC SYSTEM
JIB HYDRAULIC SYSTEM

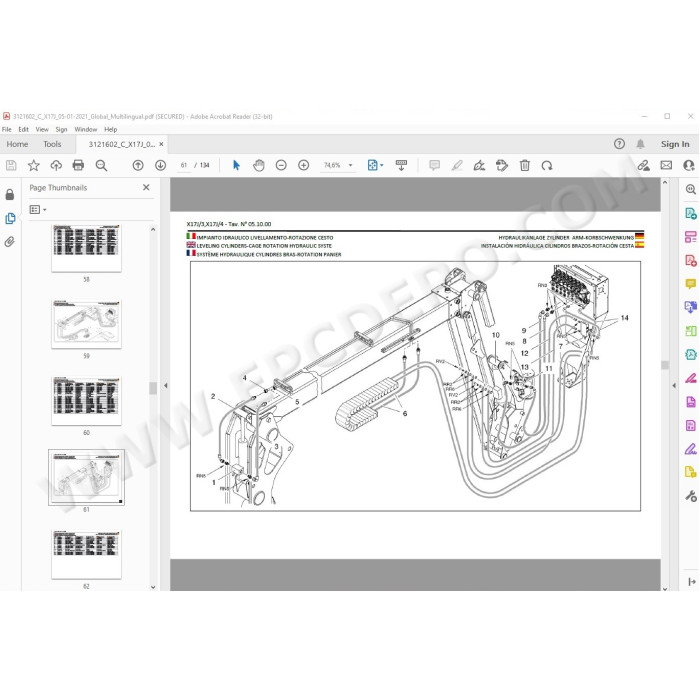

LEVELING CYLINDERS HYDRAULIC SYSTEM
CAGE ROTATION HYDRAULIC SYSTEM
COMPRESSED AIR HYDRAULIC SYSTEM
CYLINDERS
ELECTRICAL SYSTEM COMPONENTS
REMOTE CONTROL
ELECTRICAL SYSTEM DIESEL
STICKER
Main attributes JLG Compact Crawler Boom X17J spare parts manual
Release Date
Release Date
05.2021
Market
Market
All Regions
Language
Language
English, German, French, Italian, Spanish
Size
Size
15 MB
OS
Operating system
Any
Type
Type
Spare parts manual
Vehicle - Equipment type
Vehicle type
JLG compact crawler boom
Delivery
Delivery
Downloading or usb stick by mail
