Hitachi Excavator Zaxis ZX135US ZX135US-E ZX135USK spare parts manual

Description Hitachi Excavator Zaxis ZX135US ZX135US-E ZX135USK spare parts manual

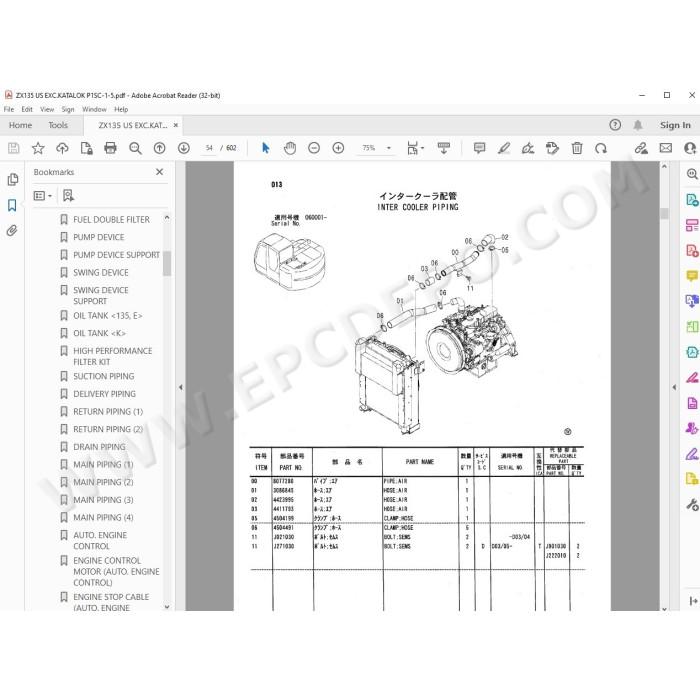

Hitachi Hydraulic Excavator Zaxis ZX135US, ZX135US-E, ZX135USK pdf spare parts manual

PARTS MANUAL CONTENT:
UPPERSTRUCTURE
FRAME
BOOM FOOT PIN
CENTER JOINT SUPPORT (UPPERSTRUCTURE)
COUNTERWEIGHT
ADDITIONAL COUNTERWEIGHT 0.8t
ENGINE
ENGINE SUPPORT
OIL FILTER PIPING
INTER COOLER PIPING
INTER COOLER NET
RADIATOR
RADIATOR SUPPORT
RADIATOR COVER
RESERVE TANK
AIR CLEANER
AIR CLEANER SUPPORT
MUFFLER
FUEL TANK
FUEL TANK SUPPORT
FUEL PIPING
FUEL FEED PUMP
FUEL DOUBLE FILTER
PUMP DEVICE
PUMP DEVICE SUPPORT
SWING DEVICE
SWING DEVICE SUPPORT
OIL TANK
HIGH PERFORMANCE FILTER KIT
SUCTION PIPING
DELIVERY PIPING
RETURN PIPING
DRAIN PIPING
MAIN PIPING
AUTO. ENGINE CONTROL
ENGINE CONTROL MOTOR (AUTO. ENGINE CONTROL)
ENGINE STOP CABLE (AUTO. ENGINE CONTROL)
MANUAL ENGINE CONTROL
MANUAL ENGINE CONTROL PARTS
CONTROL LEVER (FRONT, SWING)
CONTROL LEVER (TRAVEL)
BLADE CONTROL LEVER
LOCK LEVER
CONTROL VALVE
CONTROL VALVE SUPPORT
SOLENOID VALVE
PILOT PIPING
CONSOLE
CONSOLE COVER (AUTO. ENGINE CONTROL)
CONSOLE COVER (MANUAL ENGINE CONTROL, BLADE)
RIGHT COVER
RADIO (AM/FM)
RADIO LESS PARTS
ELECTRIC PARTS
ELECTRIC PARTS (AUTO. ENGINE CONTROL)
ELECTRIC PARTS (MANUAL ENGINE CONTROL)
SWITCH BOX (AUTO. ENGINE CONTROL)
SWITCH BOX (MANUAL ENGINE CONTROL)
BATTERY
SATELLITE DATA COMMUNICATOR PARTS
FRONT HEAD LAMP
REAR HEAD LAMP
REAR HEAD LAMP (FUSE) [EU]
ROTATING BEACON [EU]
FUSE BOX
BOOM LIGHT HARNESS
BOOM LIGHT
HORN
SWING MOTION ALARM
TRAVEL MOTION ALARM
AIR CONDITIONER
AIR-CON. UNIT
CONDENSER NET
HEATER PIPING
CAR HEATER
HEATER UNIT
DUCT
REAR COVER
REAR COVER PARTS
REAR COVER PARTS (FOR HEATER, HEATERLESS, SWING ALARM, POWER UNIT 12V)
POWER UNIT (12V)
CAB GROUP
CAB
CAB <K>
CAB [NA]
CAB [EU]
CAB (WITH GUARD SEAT) [EU]
CAB (WITH VANDAL HOOK) [EU]
CAB (1) <135, E> [NA, EU]
CAB (1) <K>
CAB (2) <135, E> [NA, EU]
CAB (2) <K>
CAB (3)
CAB (4)
CAB (5) [STD]
CAB (5) [NA, EU]
CAB (6) <135, E>
CAB (6) <K>
CAB (6) [NA, EU]
CAB (7)
HEAD-GUARD
FRONT GUARD (UPPER)
FRONT GUARD (LOWER)
WINDOW GUARD [NA, EU]
CAB MIRROR
REARVIEW MIRROR
WINDOW WASHER
SUNSHADE
SUNVISOR [EU]
ROLLER CURTAIN
FLOOR PARTS
FLOOR PLATE
FLOOR MAT
SEAT (CLOTH)
SEAT (VINYL)
SUSPENSION SEAT
AIR-SUSPENSION SEAT (WITH HEATER)
HEATER SEAT PARTS
SEAT STAND <135, K>
SEAT STAND <E>
SEAT STAND (SUSPENSION)
ARM REST (SUSPENSION)
COVER
ENGINE COVER
UNDER COVER <135, E, EU, NA>
UNDER COVER (HEAVY DUTY TYPE) <K>

UNDERCARRIAGE
TRACK FRAME <135, E>
TRACK FRAME <K>
TRACK GUARD
TRACK UNDER COVER
STEP <K>
ADDITIONAL STEP
SWING BEARING
SWING BEARING PARTS
TRAVEL DEVICE
TRAVEL DEVICE SUPPORT
FRONT IDLER
ADJUSTER
UPPER ROLLER
LOWER ROLLER
TRACK-LING VARIOUS
PAD CRAWLER B500 (SEPARATE-TYPE)
RUBBER PAD (CITY PAD)
CENTER JOINT
CENTER JOINT SUPPORT (TRACK)
TRAVEL PIPING
TRAVEL MOTOR COVER
TOOL BOX

FRONT-END ATTACHMENTS
STD. BOOM
K BOOM
ARM 2.10m
ARM 2.52m
ARM 3.01m
K ARM 2.52m
3.01m ARM PARTS
LINK A <135, E>
LINK A (WITH HOOK) <K>
LINK B <135, E>
LINK B <K>
FRONT PIPING
BOOM CYLINDER
ARM CYLINDER
BUCKET CYLINDER
LUBRICATE PIPING
BUCKET 0.19m3 [JIS 94]
BUCKET 0.30m3 [JIS 94]
BUCKET 0.40m3 [JIS 94]
BUCKET 0.45m3 [JIS 94]
BUCKET 0.50m3 [JIS 94]
BUCKET 0.59m3 [JIS 94]
BUCKET 0.66m3 [JIS 94]
K BUCKET 0.50m3 [JIS 94]
SIDE-PIN TYPE BUCKET 0.50m3 [JIS 94]
ONE-POINT RIPPER
SLOPE-FINISHING BUCKET
V-Type BUCKET 0.35m3 [JIS 94]
HOSE RUPTURE VALVE PIPING (BOOM) (ISO SPEC.)
HOSE RUPTURE VALVE PIPING (ARM)
OVER LOAD ALARM DEVICE (LINE)

BREAKER & CRUSHER PARTS
CONTROL PEDAL (BREAKER, CRUSHER)
PILOT PIPING (BREAKER, CRUSHER)
MAIN PIPING (BREAKER, CRUSHER)
BOOM PIPING (BREAKER, CRUSHER)
ARM PIPING (BREAKER, CRUSHER)
ARM PIPING (BREAKER, CRUSHER) (2.10m ARM) [EU]
ARM PIPING (BREAKER, CRUSHER) (2.52m ARM) [EU]
ARM PIPING (BREAKER, CRUSHER) (3.01m ARM) [EU]
HSB BREAKER PIPING
HSB COMMON PIPING (BREAKER, CRUSHER)
PILOT PIPING (FLOW RATE SELECTOR)
PILOT PIPING (FLOW RATE SELECTOR, BLADE
PILOT PIPING (PTO, FLOW RATE SELECTOR, BLADE
ELECTRIC PARTS (FLOW RATE SELECTOR)

BLADE PARTS
RETURN PIPING (BLADE)
MAIN PIPING (BLADE)
PILOT PIPING (BLADE)
TRACK FRAME (BLADE)
CENTER JOINT (BLADE)
CENTER JOINT SUPPORT (BLADE)
BLADE (BOLT-ON CUTTING-EDGE)
BLADE PIPING

ASSIST PIPING
ADD. GEAR PUMP PIPING
ASSIST PIPING (BOOM) [EU]
ASSIST PIPING (2.10m ARM) [EU]
ASSIST PIPING (2.52m ARM) [EU]
ASSIST PIPING (3.01m ARM) [EU]
2 WAY MULTI LEVER
2 WAY MULTI LEVER PIPING
4 WAY MULTI LEVER
4 WAY MULTI LEVER PIPING

TOOLS

NAME-PLATE

Equipment components
PUMP
MOTOR
VALVE
CYLINDER
