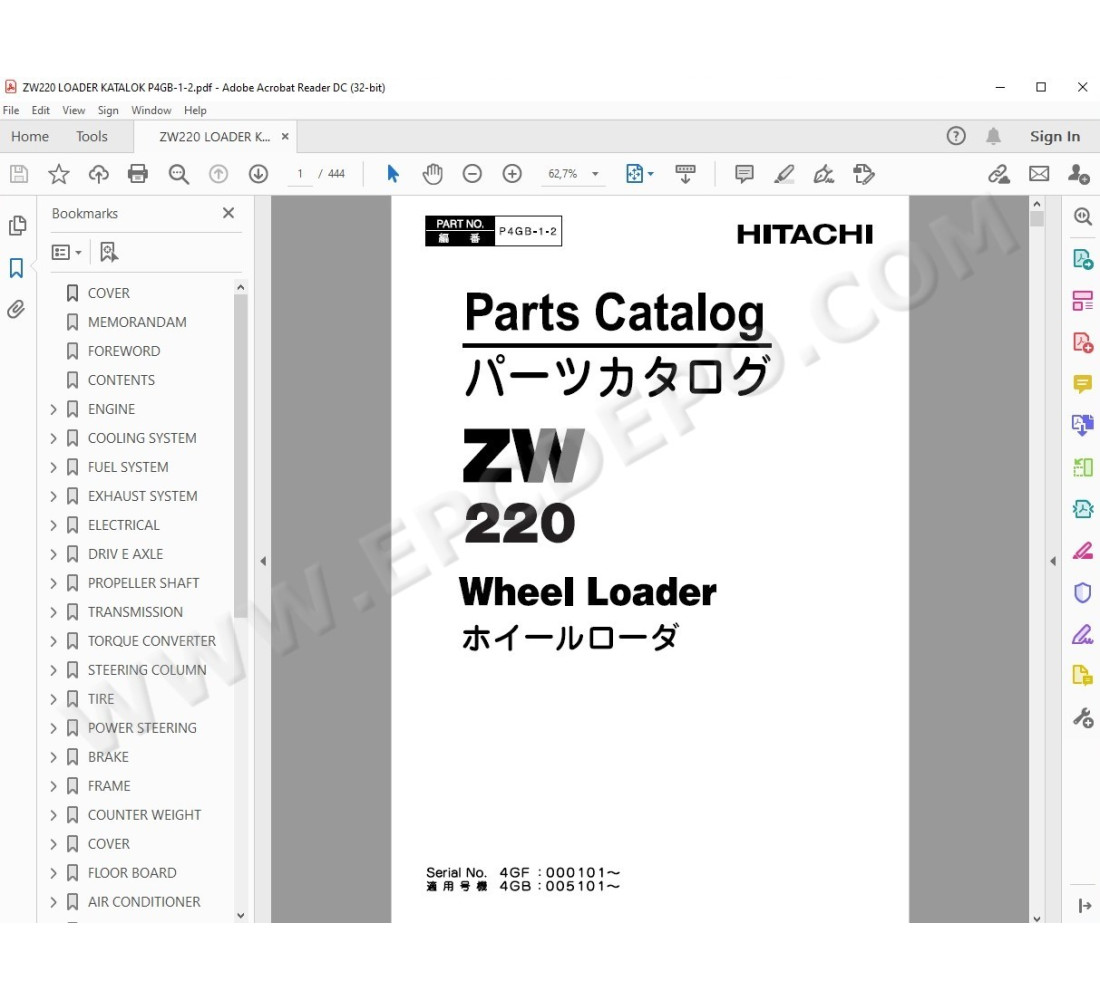

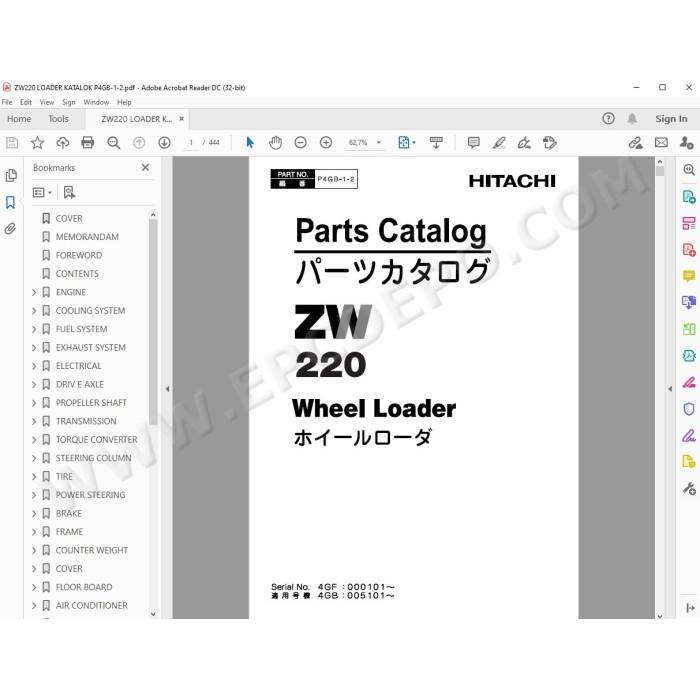

Hitachi Wheel Loader ZW220 parts manual

Description Hitachi Wheel Loader ZW220 parts manual

Hitachi Wheel Loader ZW220 pdf spare parts manual

Serial numbers:
000101 ~ up
005101 ~ up

MANUAL CONTENT:
ENGINE

COOLING SYSTEM
RADIATOR
FAN PIPING

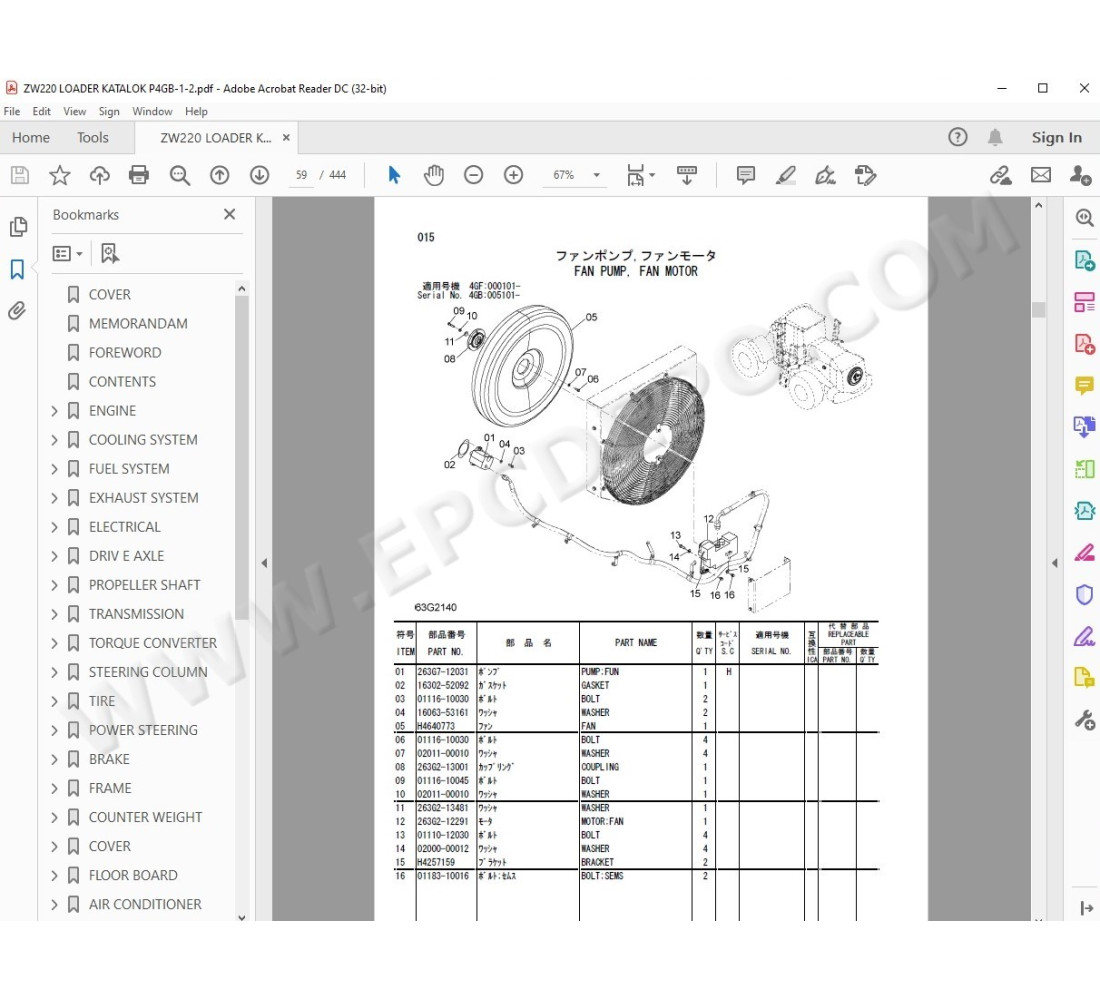

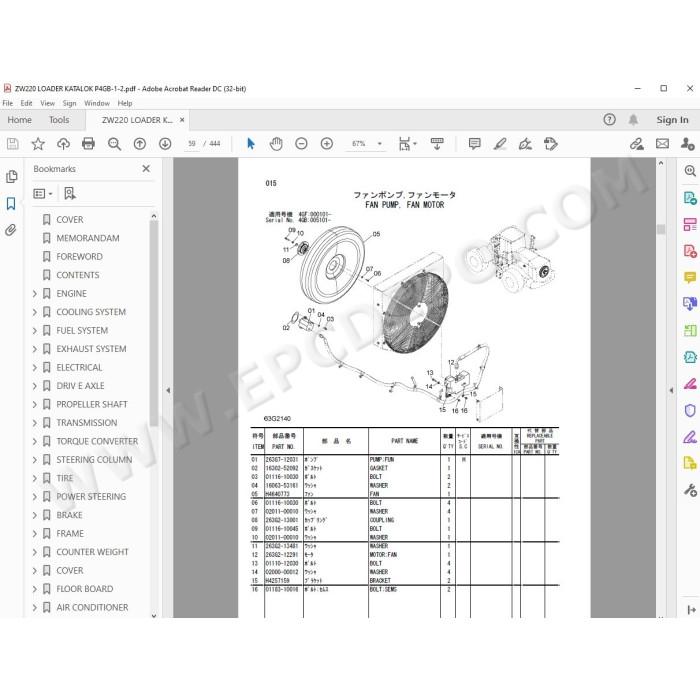

FAN PUMP, FAN MOTOR
MAT
FUEL SYSTEM
BREATHER

EXHAUST SYSTEM
RAINCAP
PRE CLEANER

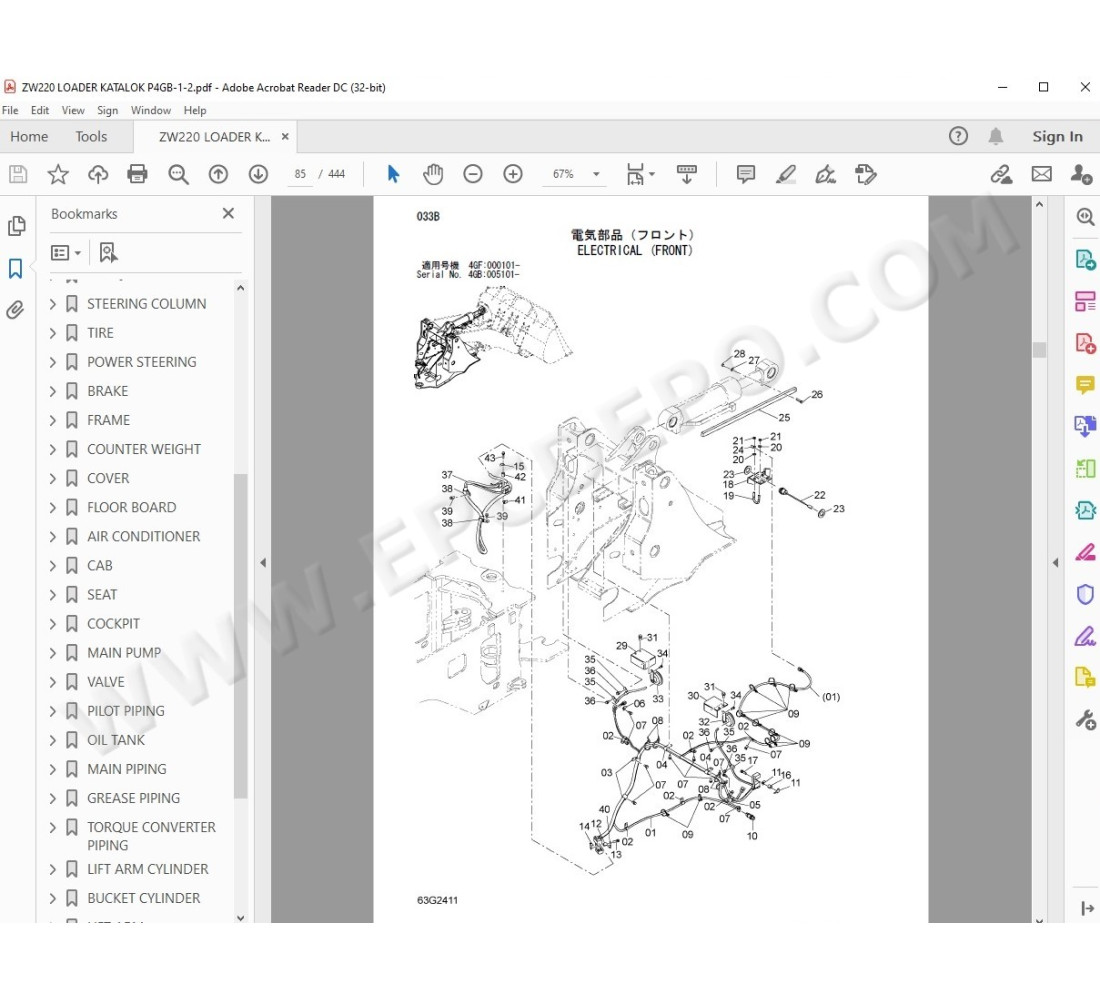

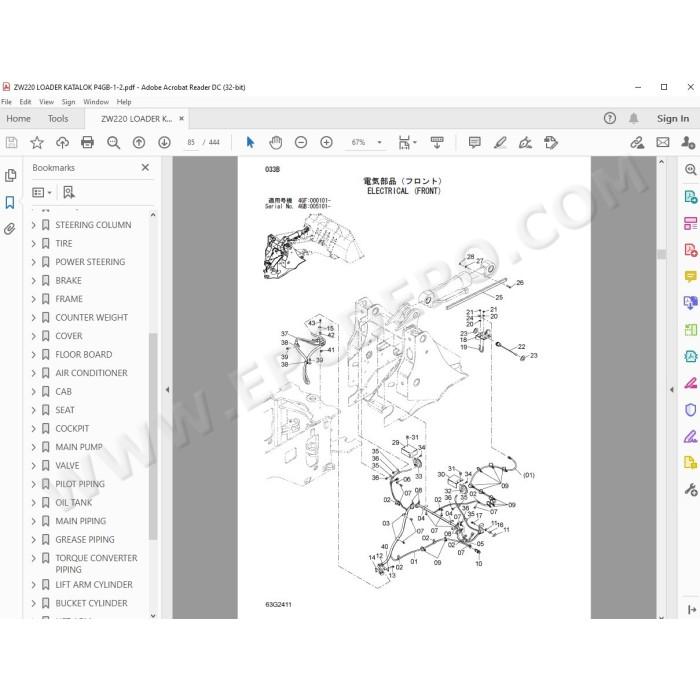

ELECTRICAL SYSTEM
ELECTRICAL (REAR)
ELECTRICAL (COCKPIT RIGHT CONSOLE)
BOOM KICK OUT
BATTERY (160F51 108Ah)
BATTERY (190H52 160Ah)
MAIN CONTROLLER
BACK BUZZER (90dB)
BACK BUZZER (97,107,112dB)
FRONT LAMP
REAR COMBINATION LAMP
12V POWER UNIT
GPS

AXLE
DRIVE AXLE (FRONT)

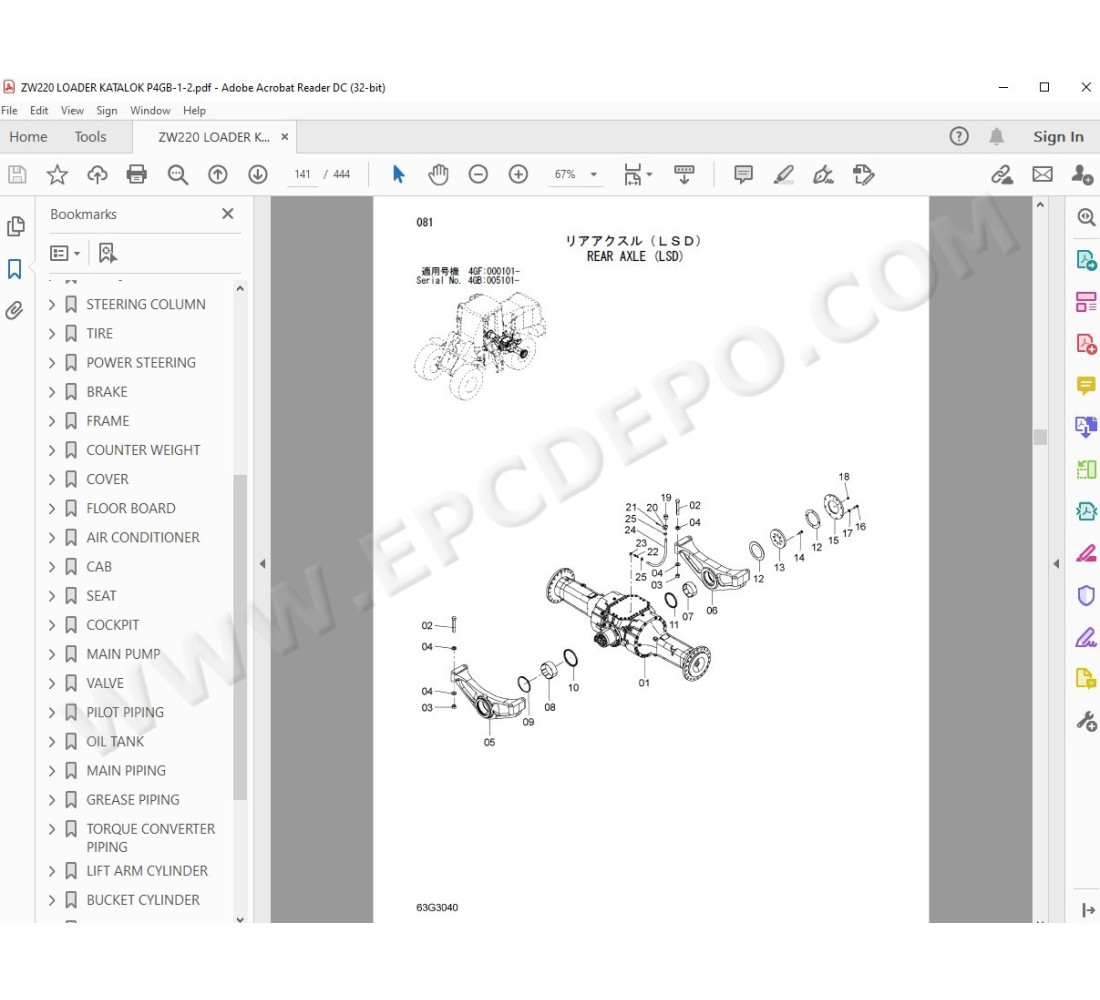

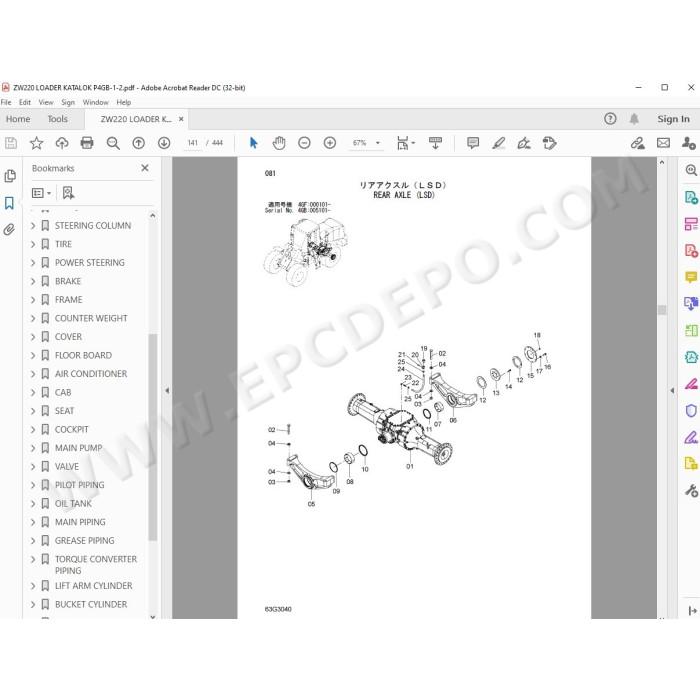

DRIVE AXLE (REAR)

PROPELLER SHAFT

TRANSMISSION

TORQUE CONVERTER

HANDLE

TIRE

POWER STEERING
STEERING CYLINDER
ORBITROLL
STEERING VALVE
STEERING PIPING
ACCUMULATOR (STEERING CYLINDER)
ACCUMLATOR (ORBITROLL)
EMERGENCY STEERING

BRAKE PIPING
BRAKE VALVE
CHARGE VALVE
PARKING

FRONT
FRONT FRAME
REAR FRAME

BALANCE WEIGHT

HOOD

GAS SPRING

FLOOR BOARD
FULL REAR FENDER

AIR CONDITIONER
AIR CONDITIONER PIPING

CAB
MIRROR
RADIO

SEAT
HEAD REST
SUSPENSION SEAT
AIR-SUSPENSION SEAT
HEAD REST
SUSPENSION SEAT WITH HEAD REST
AIR-SUSPENSION SEAT WITH HEAD REST

COCKPIT

VALVE
MAIN VALVE

VALVE CONTROL
PILOT PIPING
MULTI FUNCTION LEVER PILOT VALVE

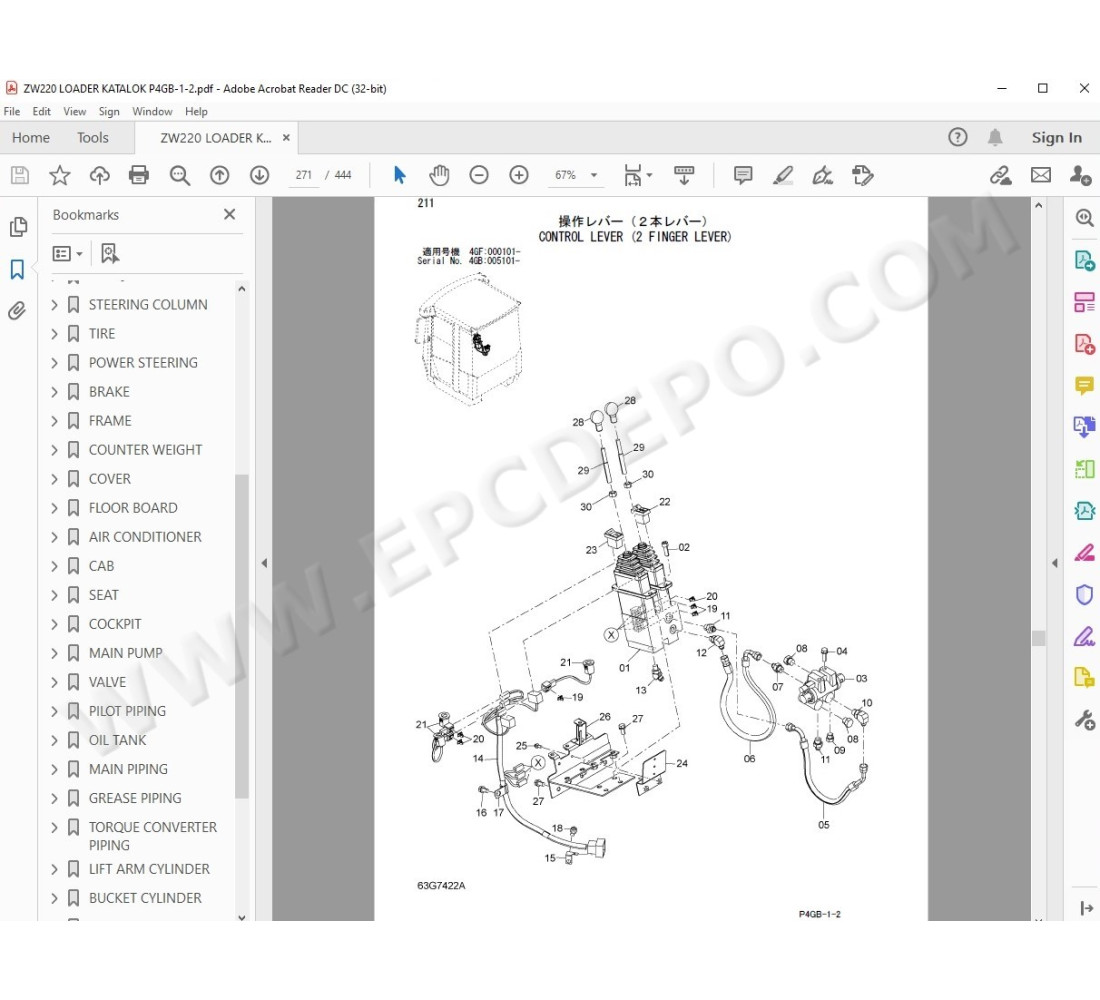

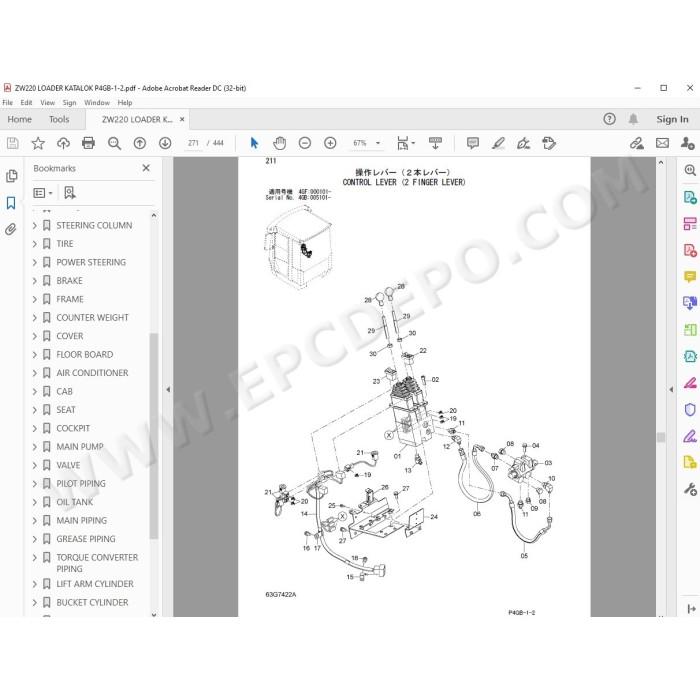

2 LEVER (FINGER) PILOT VALVE
VALVE CONTROLL PIPING
PILOT VALVE COVER (MULTI FUNCTION LEVER)
PILOT VALVE COVER (FINGER LEVER)

OIL TANK
REMOTE DRAIN

MAIN PIPING
FRONT FRAME COVER

GREASE PIPING

LIFT CYLINDER

BUCKET CYLINDER

LIFT ARM
STD. ARM
HIGHT LIFT ARM

BUCKET
ROUND BOTTOM BUCKET 2.5m3 (BOLT-ON TYPE)
ROUND BOTTOM BUCKET 2.5m3 (WEIDED TYPE)
ROUND BOTTOM BUCKET 2.7m3 (DOUBLE EDGE)
FLAT BOTTOM BUCKET 2.5m3 (BOLT-ON TYPE)
FLAT BOTTOM BUCKET 2.5m3 (WELDED TYPE)
FLAT BOTTOM BUCKET 2.7m3 (DOUBLE EDGE)
ROUND BOTTOM BUCKET 3.1m3 (BOLT-ON TYPE)
ROUND BOTTOM BUCKET 3.1m3 (WELDED TYPE)
ROUND BOTTOM BUCKET 3.3m3 (DOUBLE EDGE)
ROUND BOTTOM BUCKET 3.3m3 (BOLT-ON TYPE)
ROUND BOTTOM BUCKET 3.3m3 (WELDED TYPE)
ROUND BOTTOM BUCKET 3.5m3 (DOUBLE EDGE)
FLAT BOTTOM BUCKET 3.1m3 (BOLT-ON TYPE)
FLAT BOTTOM BUCKET 3.1m3 (WELDED TYPE)
FLAT BOTTOM BUCKET 3.3m3 (DOUBLE EDGE)
FLAT BOTTOM BUCKET 3.3m3 (BOLT-ON TYPE)
FLAT BOTTOM BUCKET 3.3m3 (WELDED TYPE)
FLAT BOTTOM BUCKET 3.5m3 (DOUBLE EDGE)
ROCK BUCKET 2.4m3 [EU]
BUCKET 3.0m3 (1 TYPE)
BUCKET 3.0m3 (3 TYPE)
BUCKET 3.2m3 (DOUBLE EDGE)
BUCKET 3.2m3 (1 TYPE)
BUCKET 3.2m3 (3 TYPE)
BUKCET 3.4m3 (DOUBLE EDGE)
ROCK BUCKET 2.7m3
ROCK BUCKET 2.9m3 (SPACE EDGE)
BUCKET 3.7m3 (DOUBLE EDGE)(FLOATING PIN)

DECAL

TOOLS
