Hitachi Excavator Zaxis ZX200-3 ZX225US-3 ZX225USR-3 ZX240-3 ZX270-3 service manual

Description Hitachi Excavator Zaxis ZX200-3 ZX225US-3 ZX225USR-3 ZX240-3 ZX270-3 service manual

Hitachi Hydraulic Excavator Zaxis class 200-3, 225US-3, 225USR-3, 240-3, 270-3 pdf workshop service manual + technical manual + operator manual

Models covered:
Zaxis 200-3, 210H-3, 210K-3, 210LCN-3, 240N-3
Zaxis 225US-3, 225USLC-3
Zaxis 225USR-3, 225USRLC-3, 225USRK-3, 225USRLCK-3
Zaxis 240-3, 240LC-3, 250H-3, 250LC-3, 250LCN-3, 250LCH-3, 250K-3, 250LCK-3
Zaxis 270-3, 270LC-3, 280LC-3, 280LCN-3

Specifications, maintenance, testing, technical documentation, troubleshooting, electrical wiring diagrams, hydraulic schematics, adjusting, assembly, disassembly, removal, installation instructions and other information

MANUAL CONTENT:
GENERAL

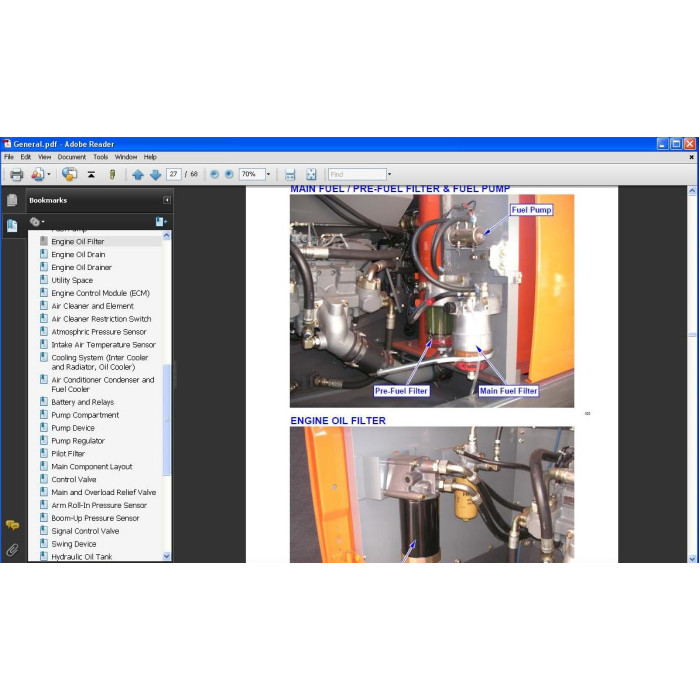

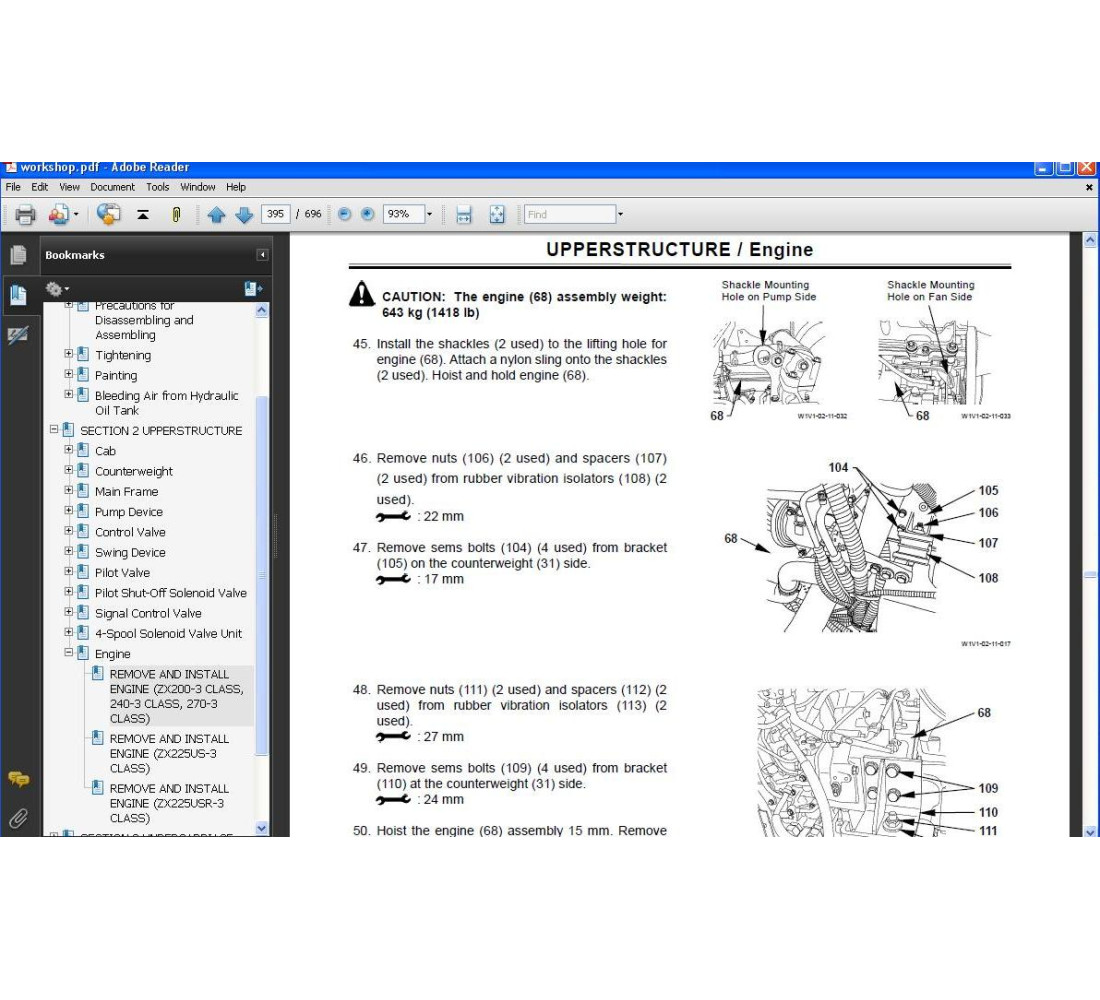

Precautions for disassembling and assembling
Tightening Torque
Painting
Bleeding Air from Hydraulic Oil Tank

UPPERSTRUCTURE
Cab
Counterweight
Main Frame

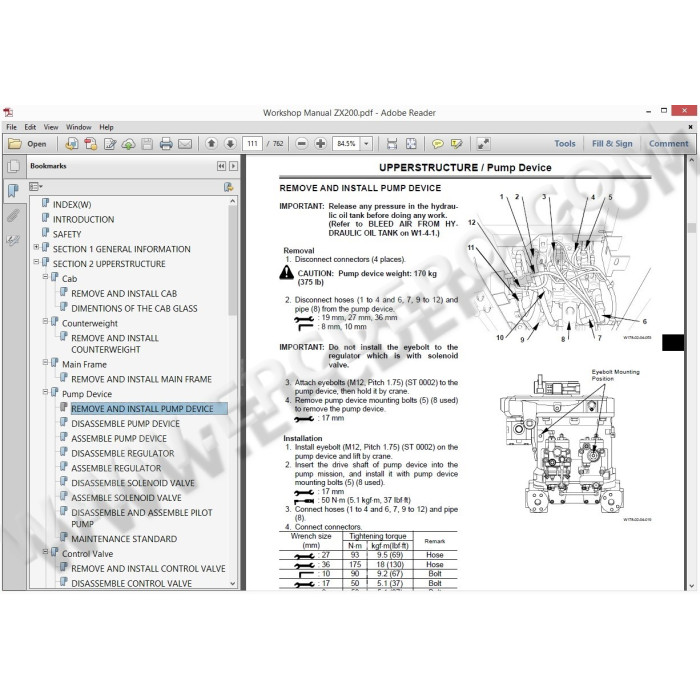

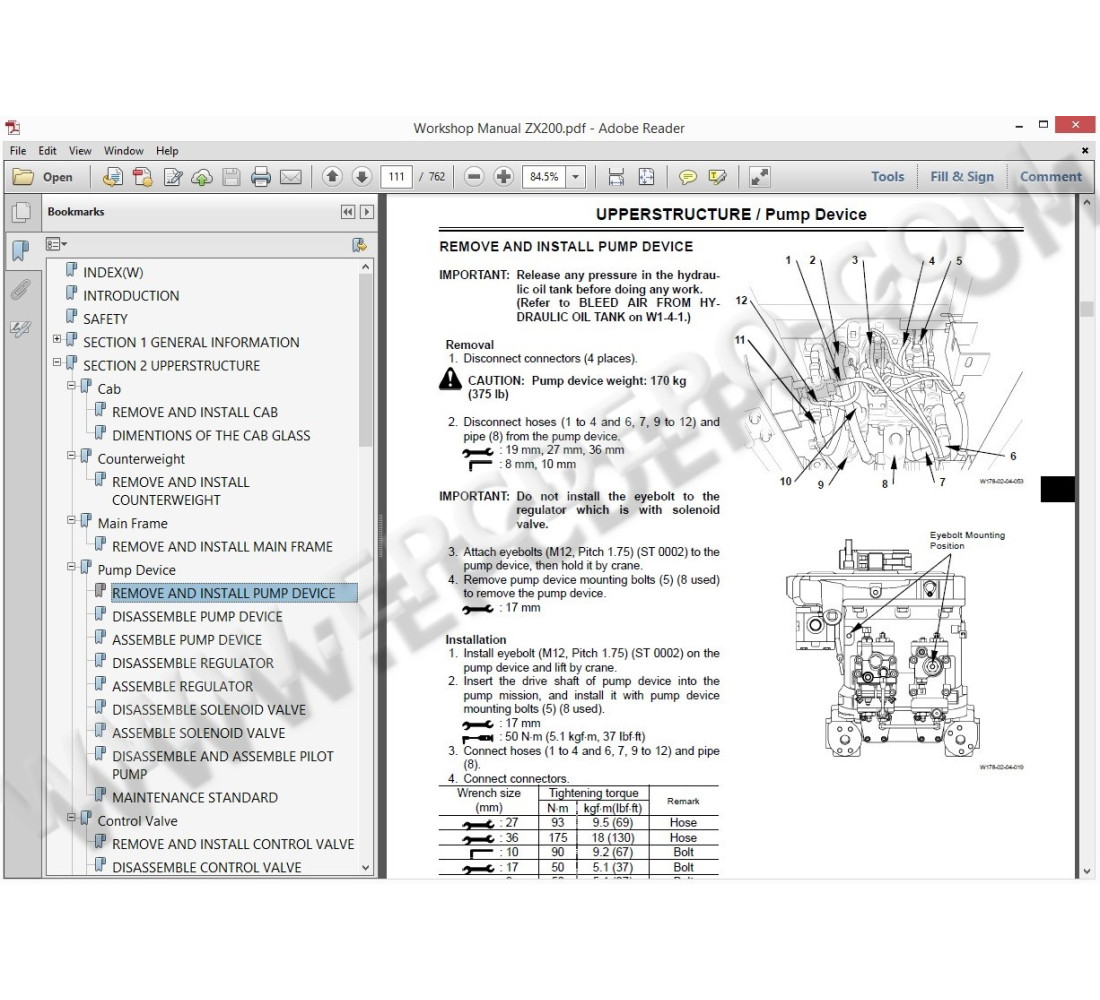

Pump Device
Control Valve
Swing Device
Pilot Valve
Pilot Shut-Off Solenoid Valve

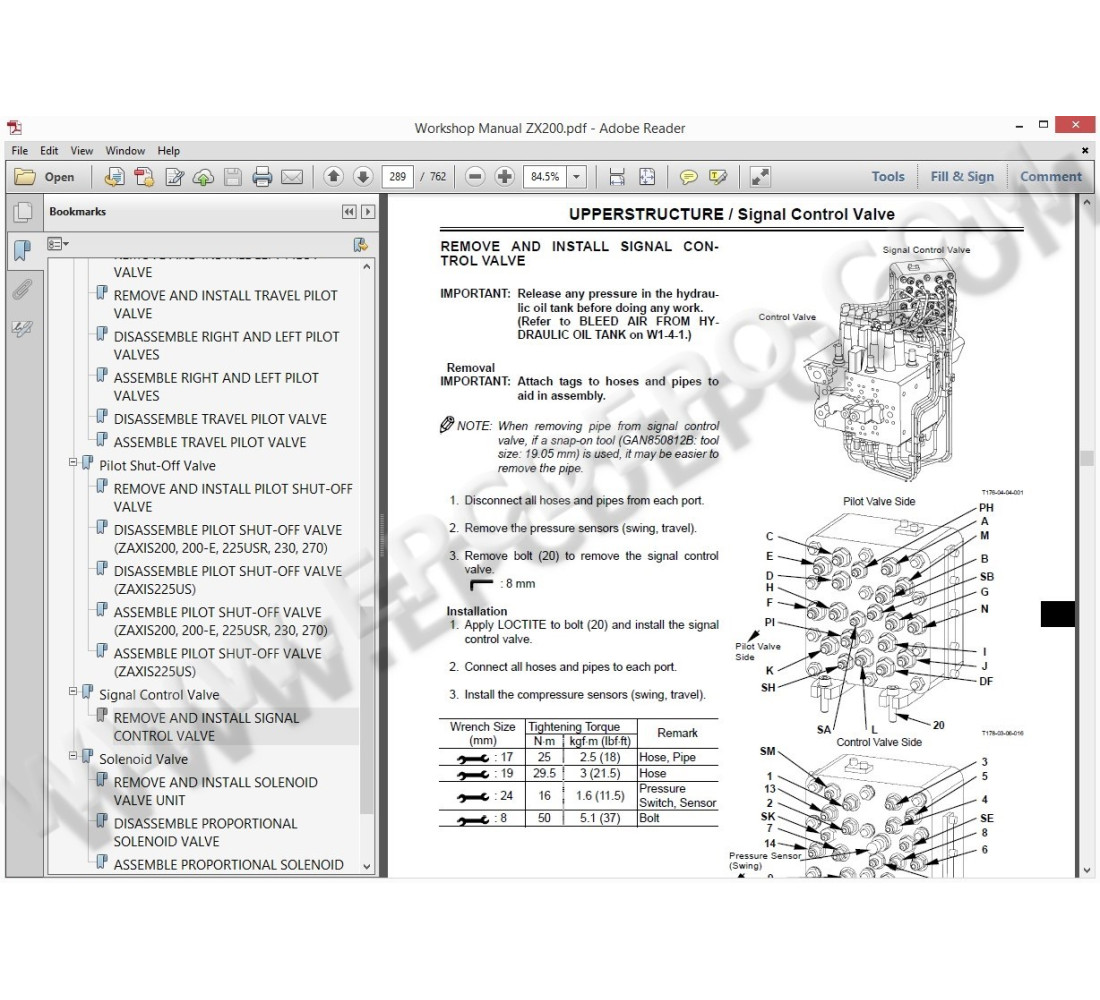

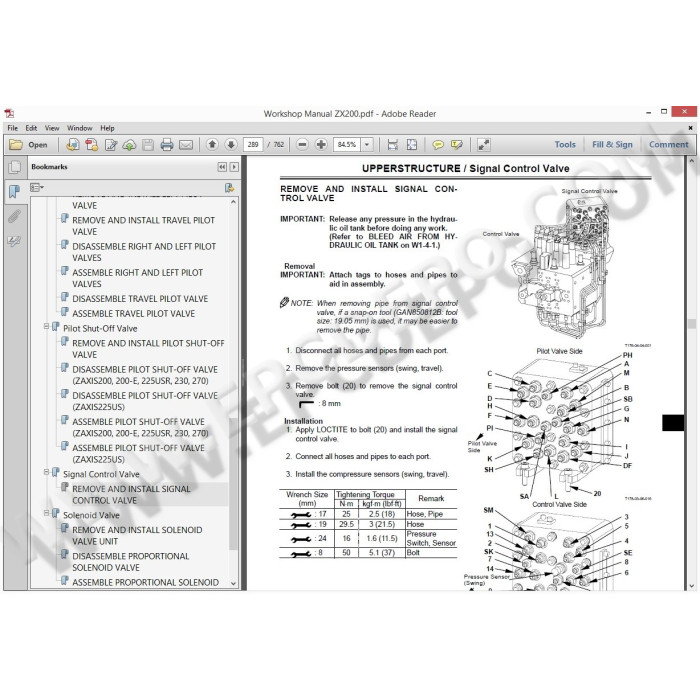

Signal Control Valve
4-Spool Solenoid Valve Unit

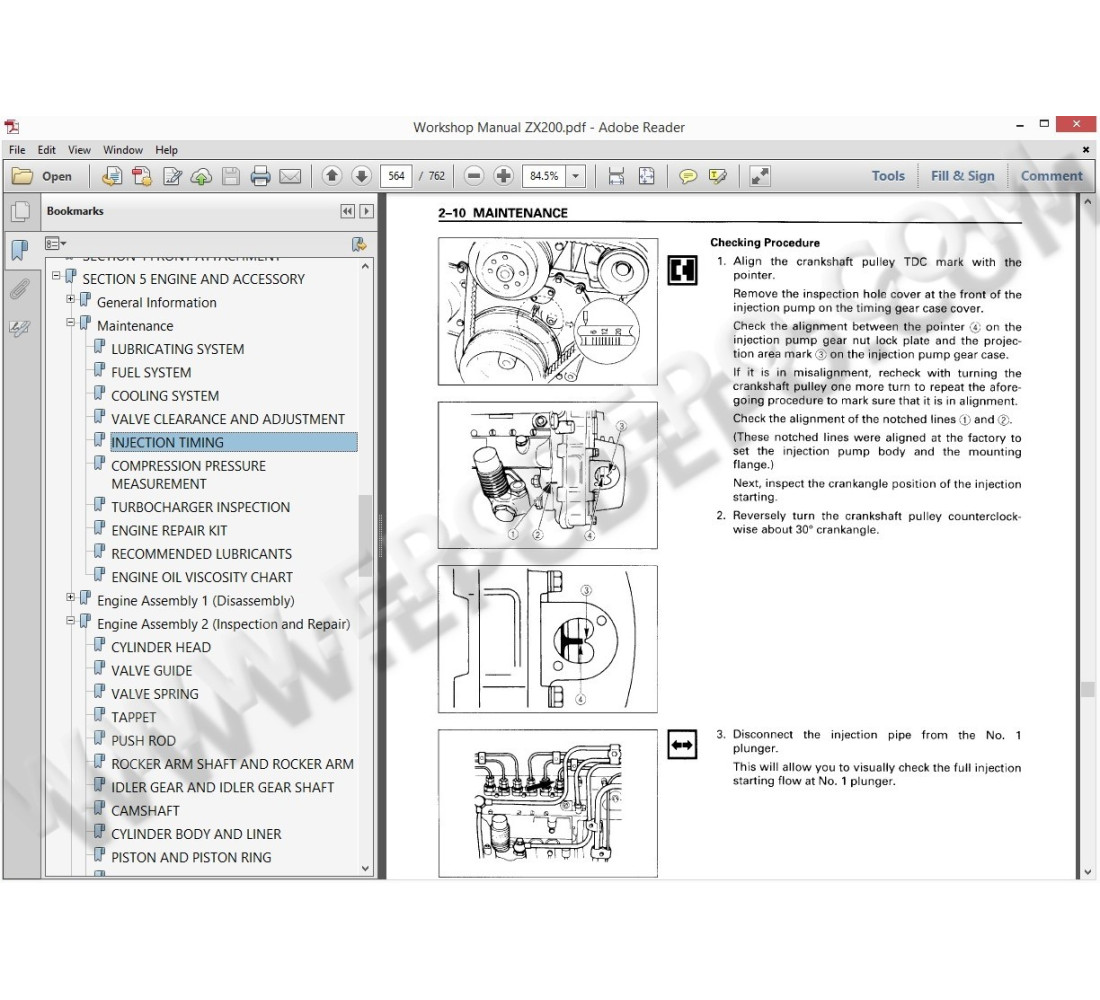

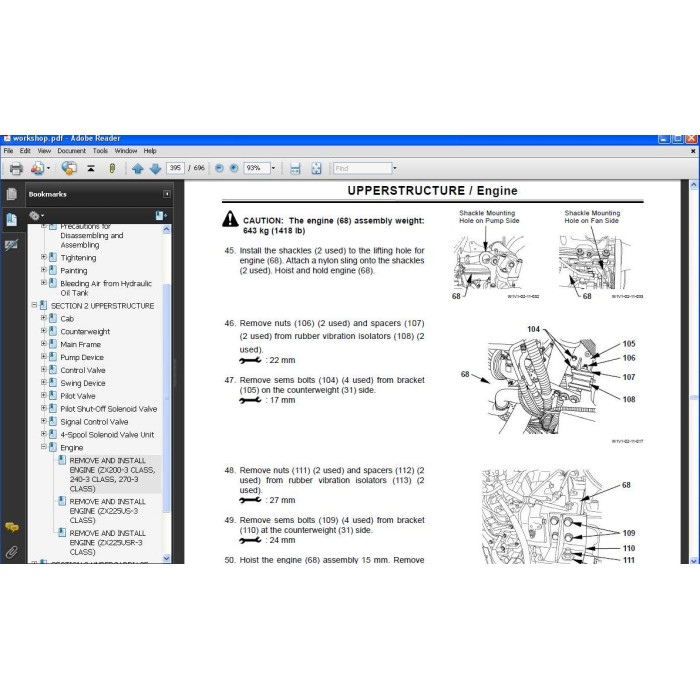

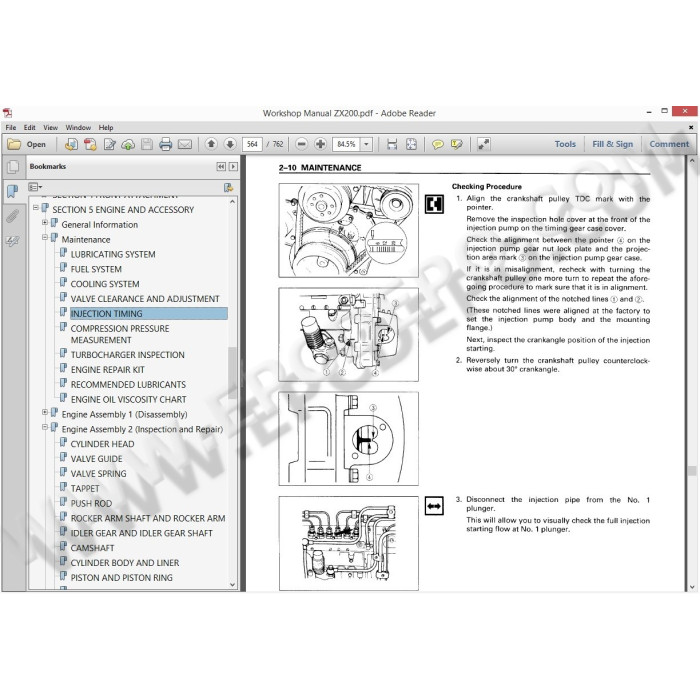

Engine

UNDERCARRIAGE
Swing Bearing
Travel Device
Center Joint
Track Adjuster
Front Idler
Upper and Lower Roller

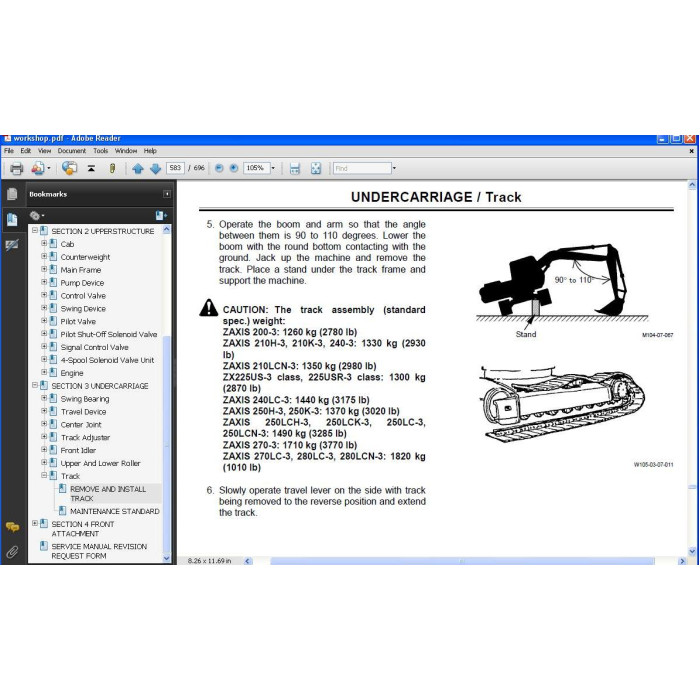

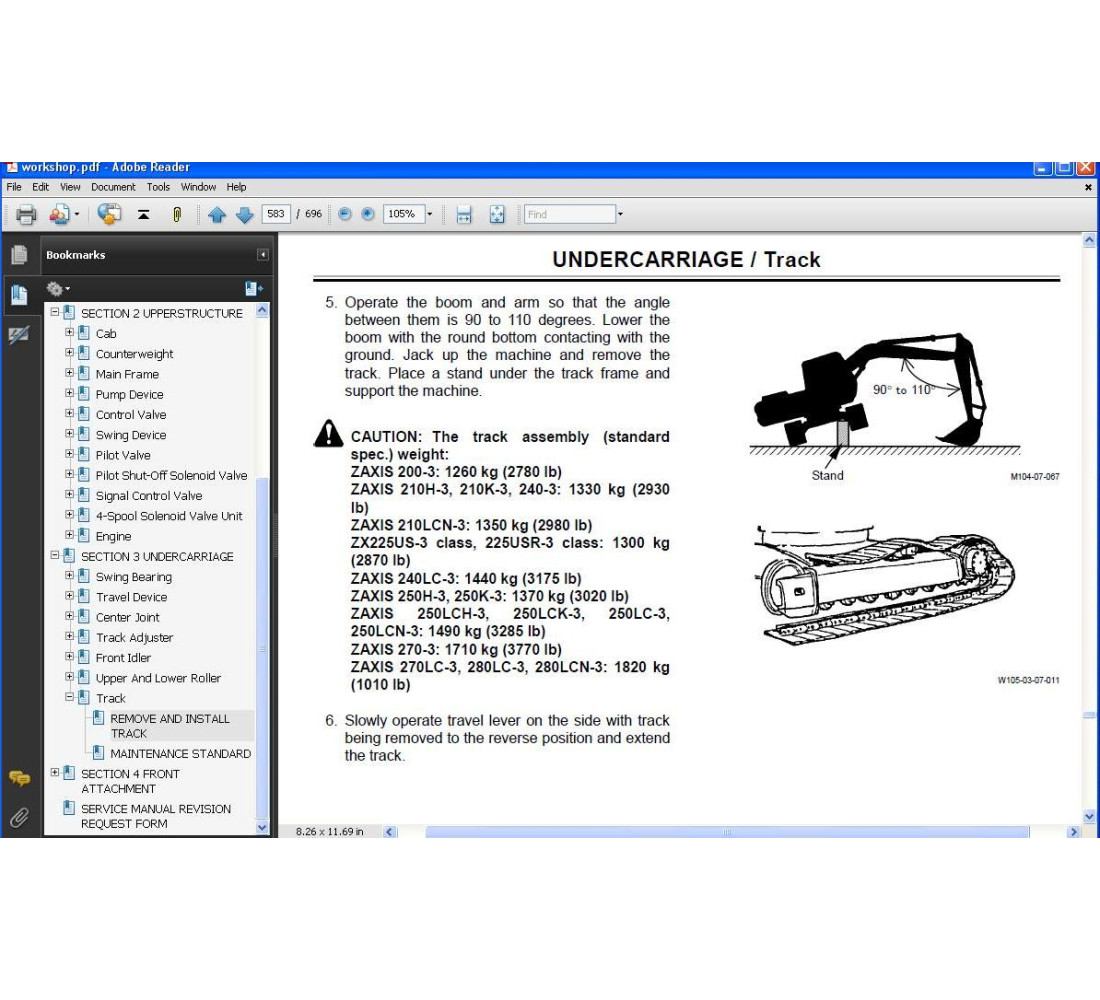

Track

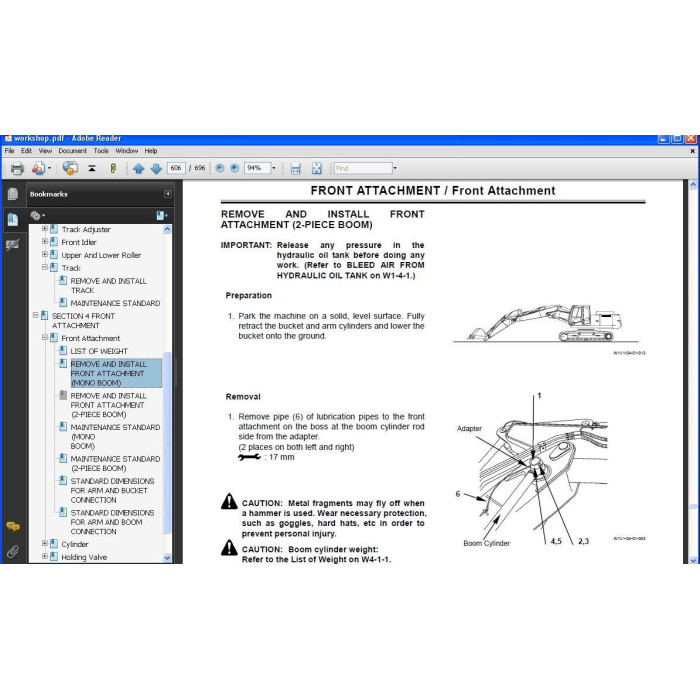

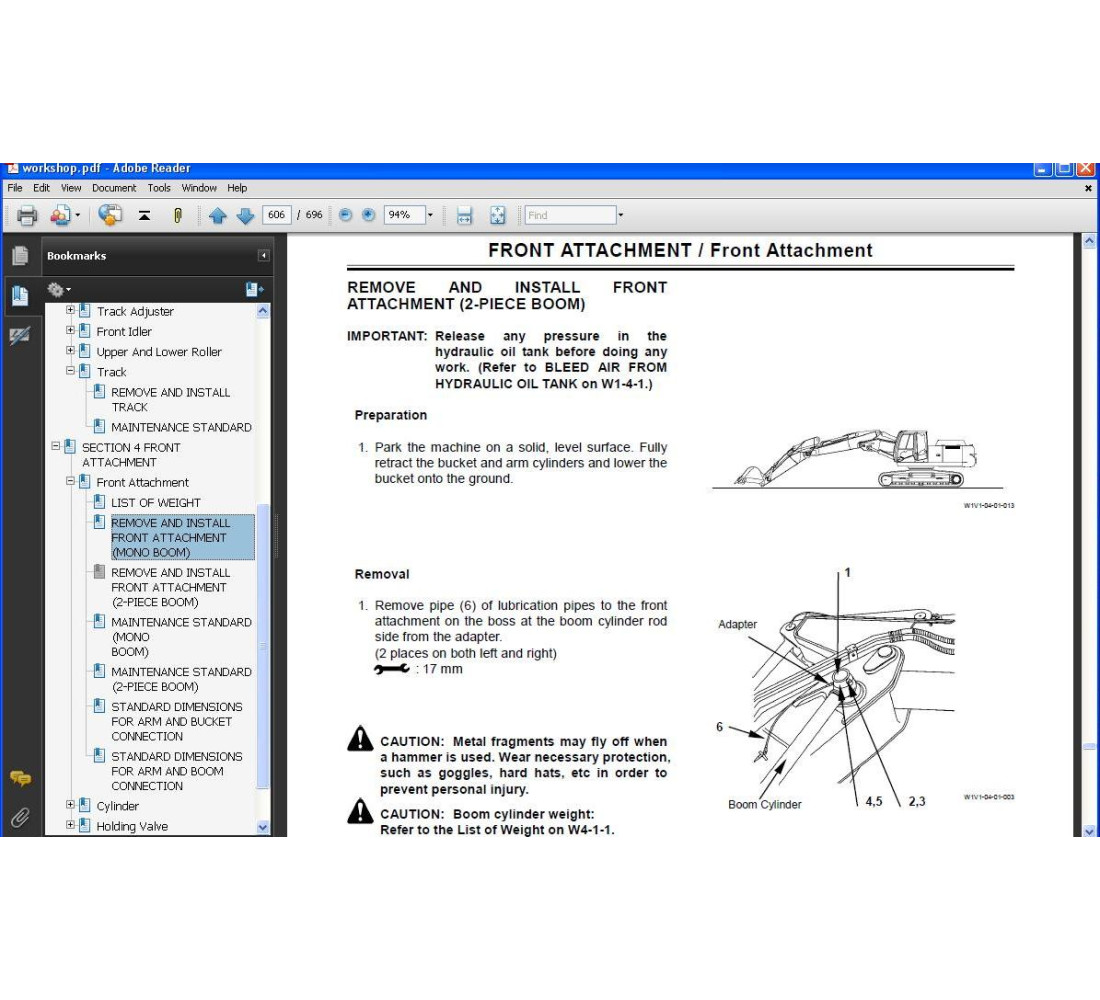

FRONT ATTACHMENT
Cylinder
Holding Valve

Technical Manual (Operational Principle)

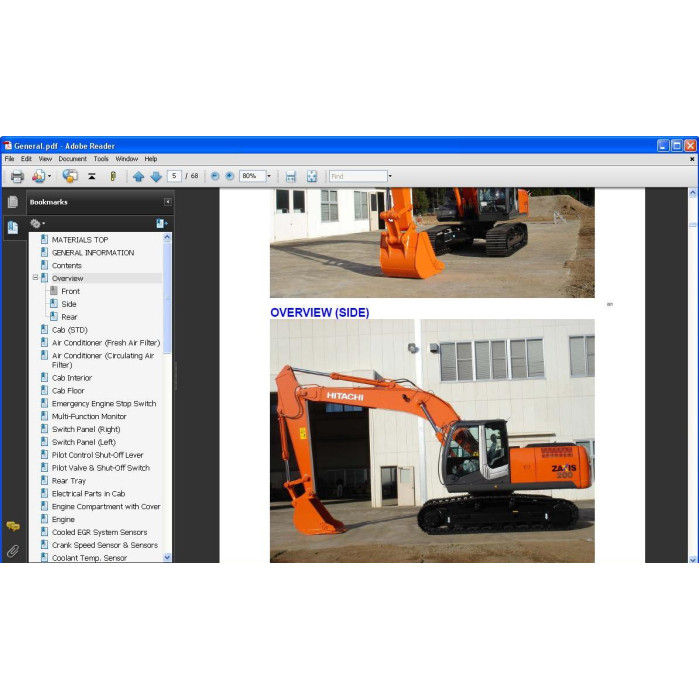

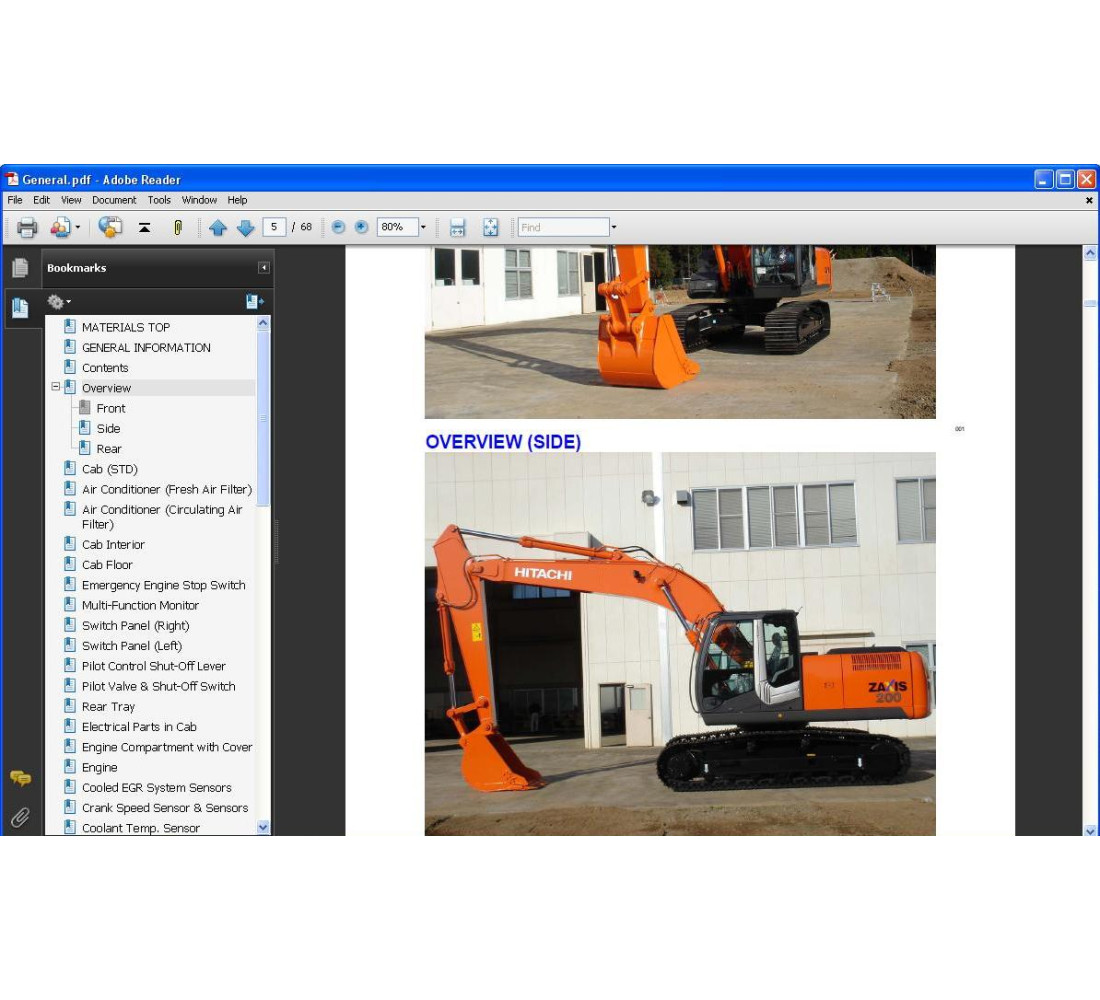

GENERAL
Specification

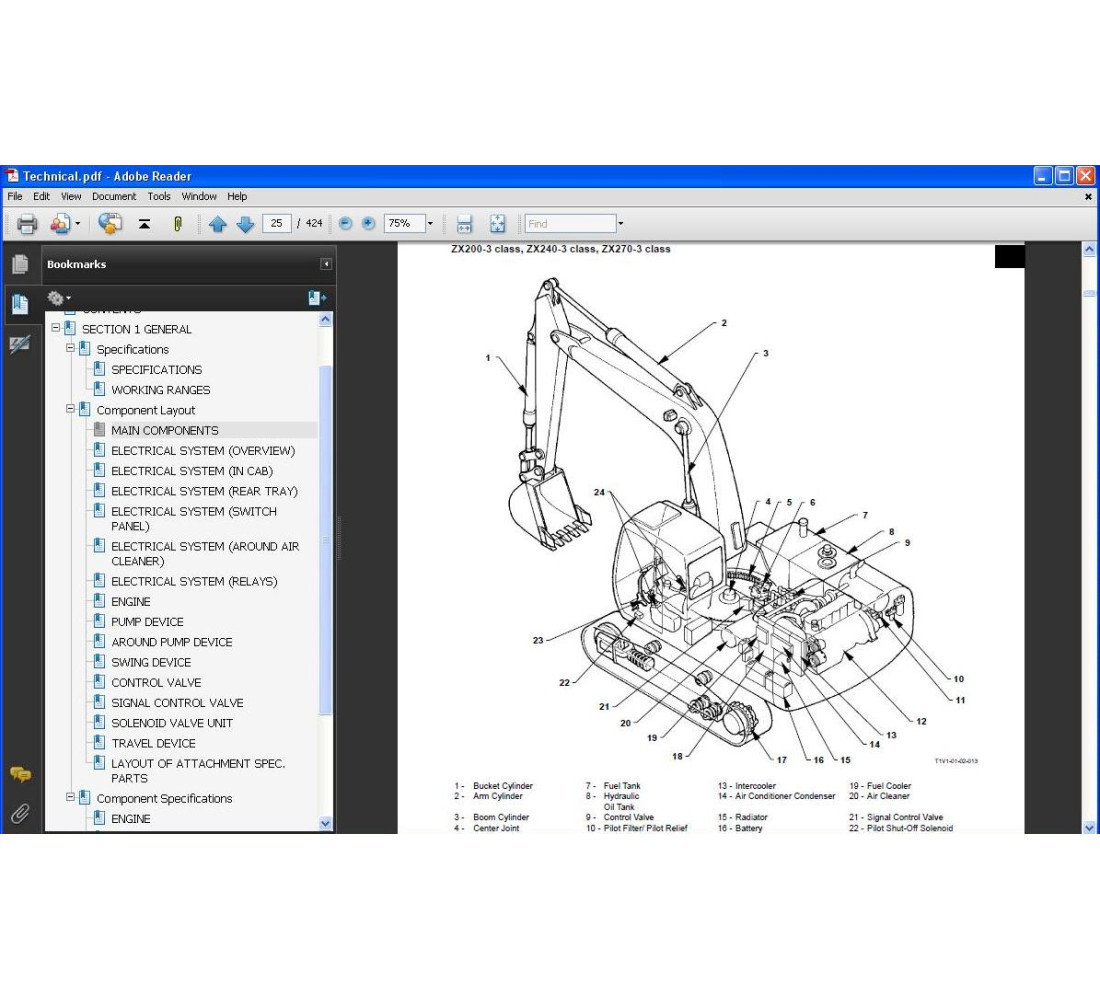

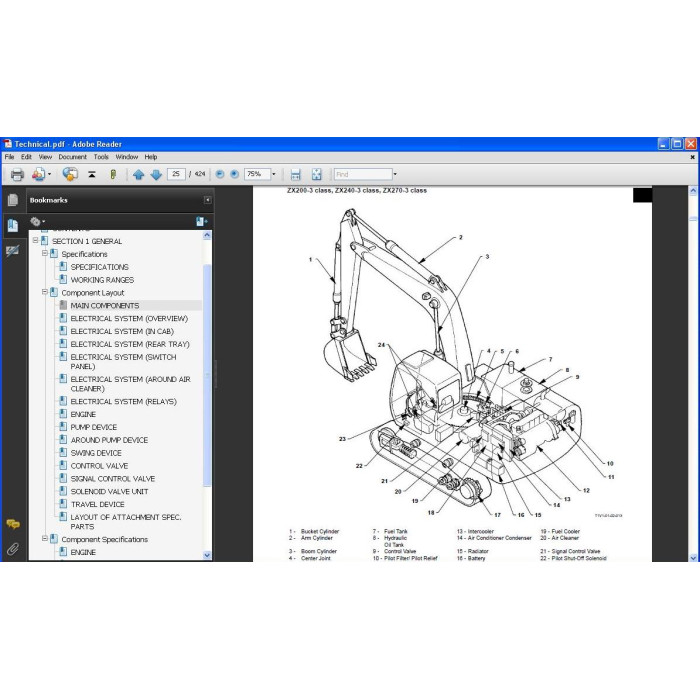

Component Layout
Component Specifications

SYSTEM
Controller
Control System
ECM System
Hydraulic System
Electrical System

COMPONENT OPERATION
Pump Device
Swing Device
Control Valve
Pilot Valve
Travel Device
Signal Control Valve

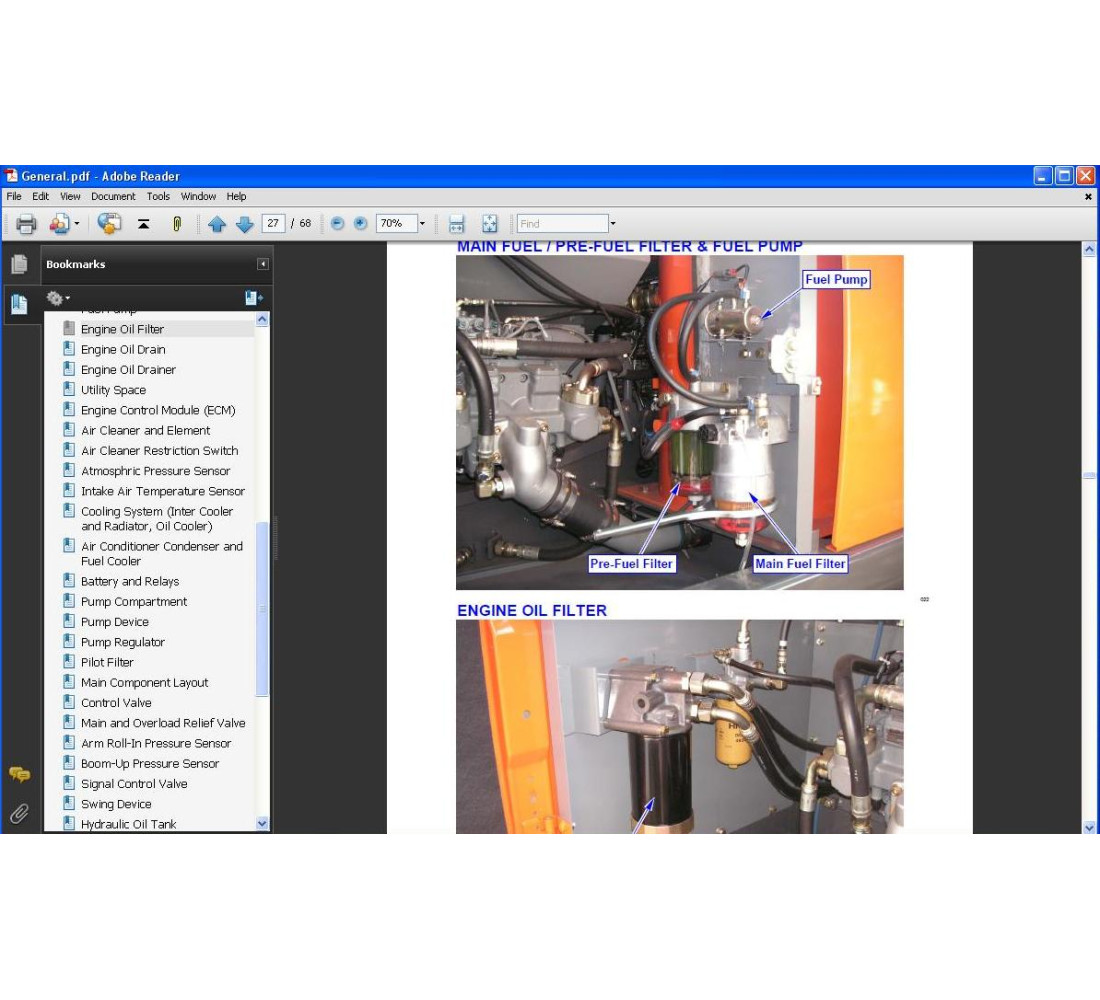

Others (Upperstructure)
Others (Undercarriage)

Technical Manual (Troubleshooting)
OPERATIONAL PERFORMANCE TEST
Introduction
GStandard
Engine Test
Excavator Test
Component Test

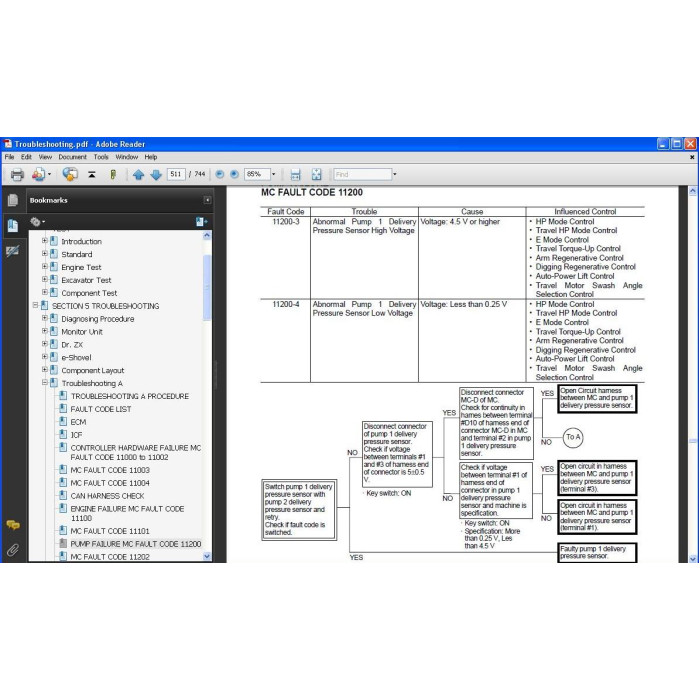

TROUBLESHOOTING
Diagnosing Procedure
Monitor Unit
Dr. ZX
e-Shovel
Component Layout

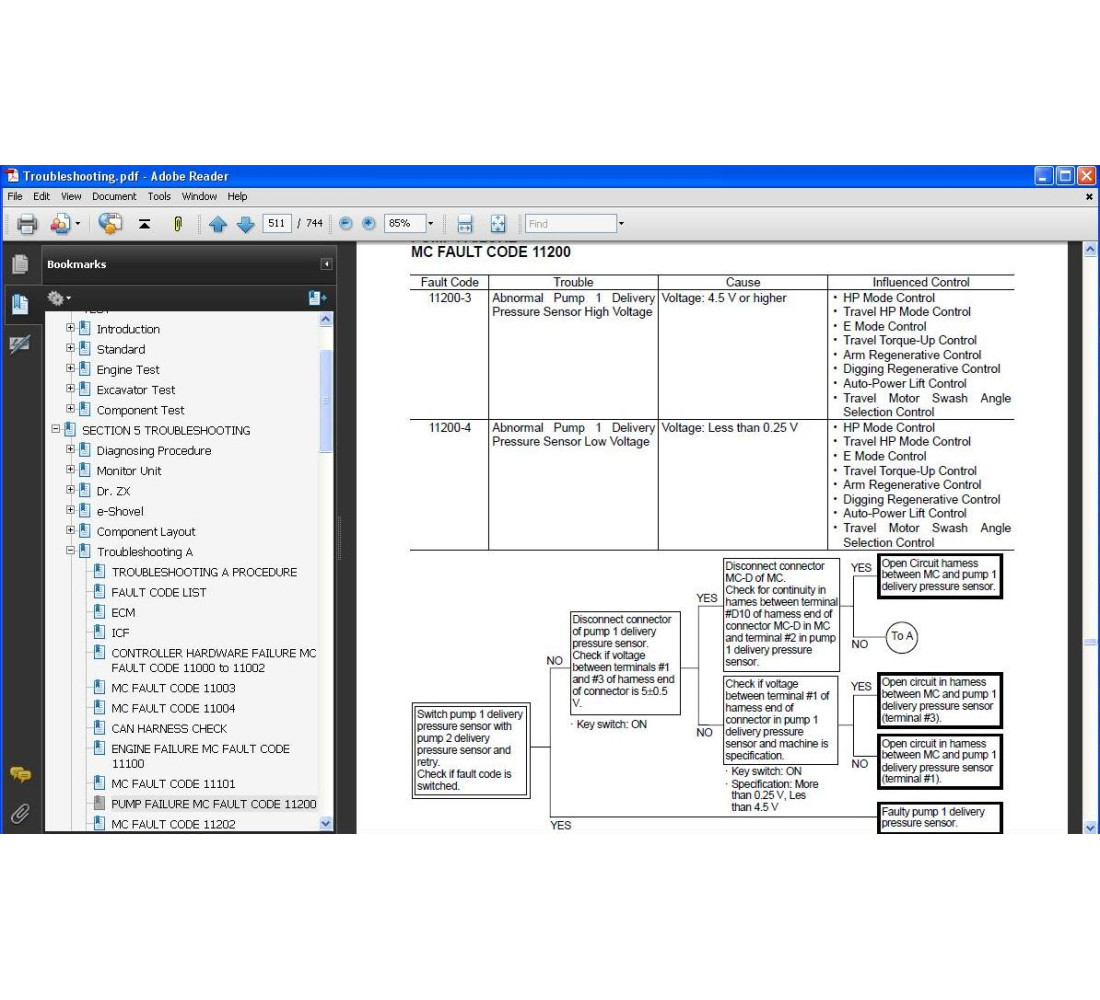

Troubleshooting A
Troubleshooting B
Electrical System Inspection

Electrical diagrams

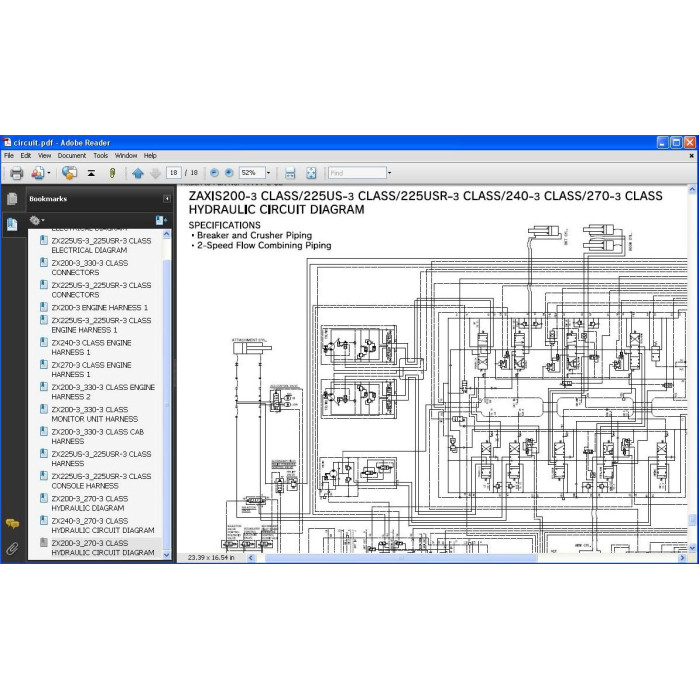

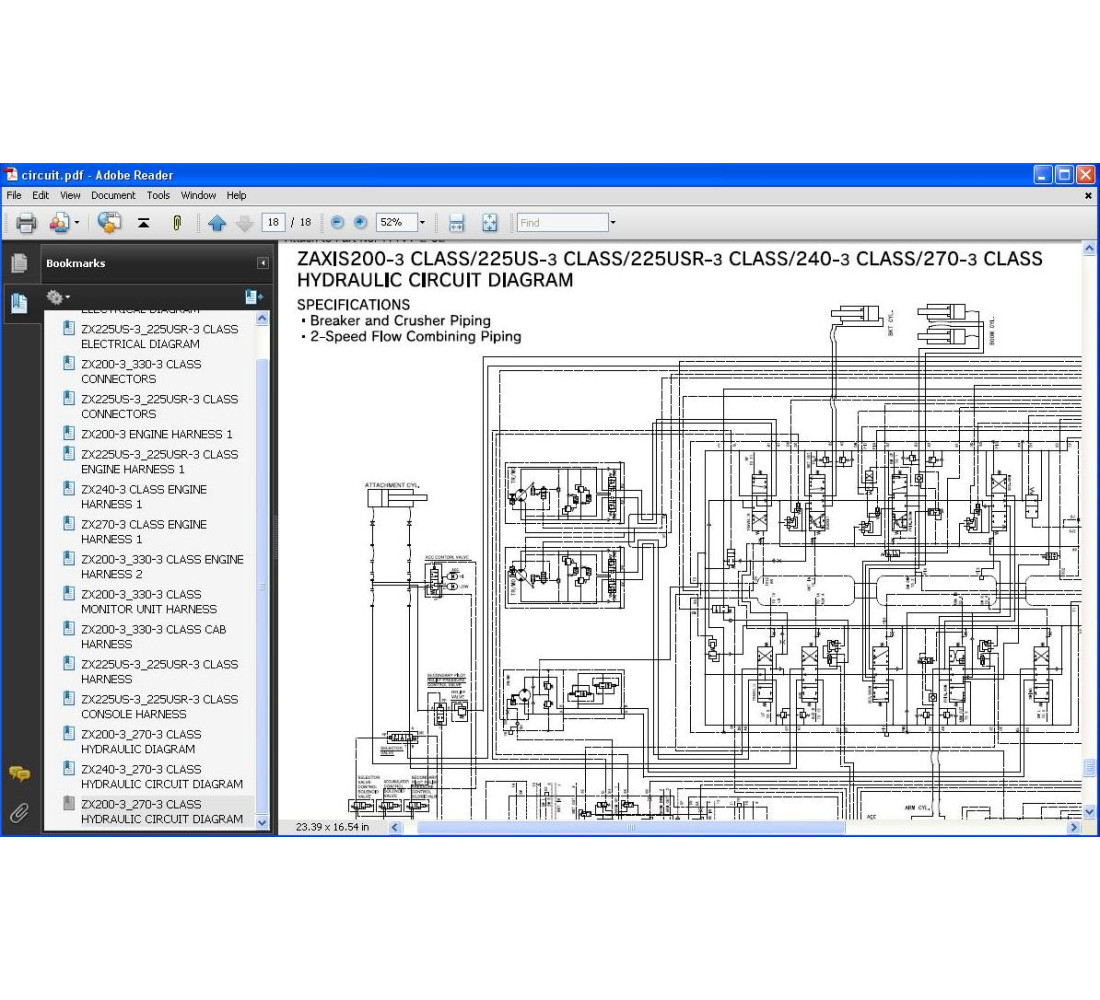

Hydraulic schematics
