12.2020 / All Regions / 1 DVD / Windows 10, Windows 8, Windows 7 / 32 & 64 bit
Cummins Insite 220.127.116.11

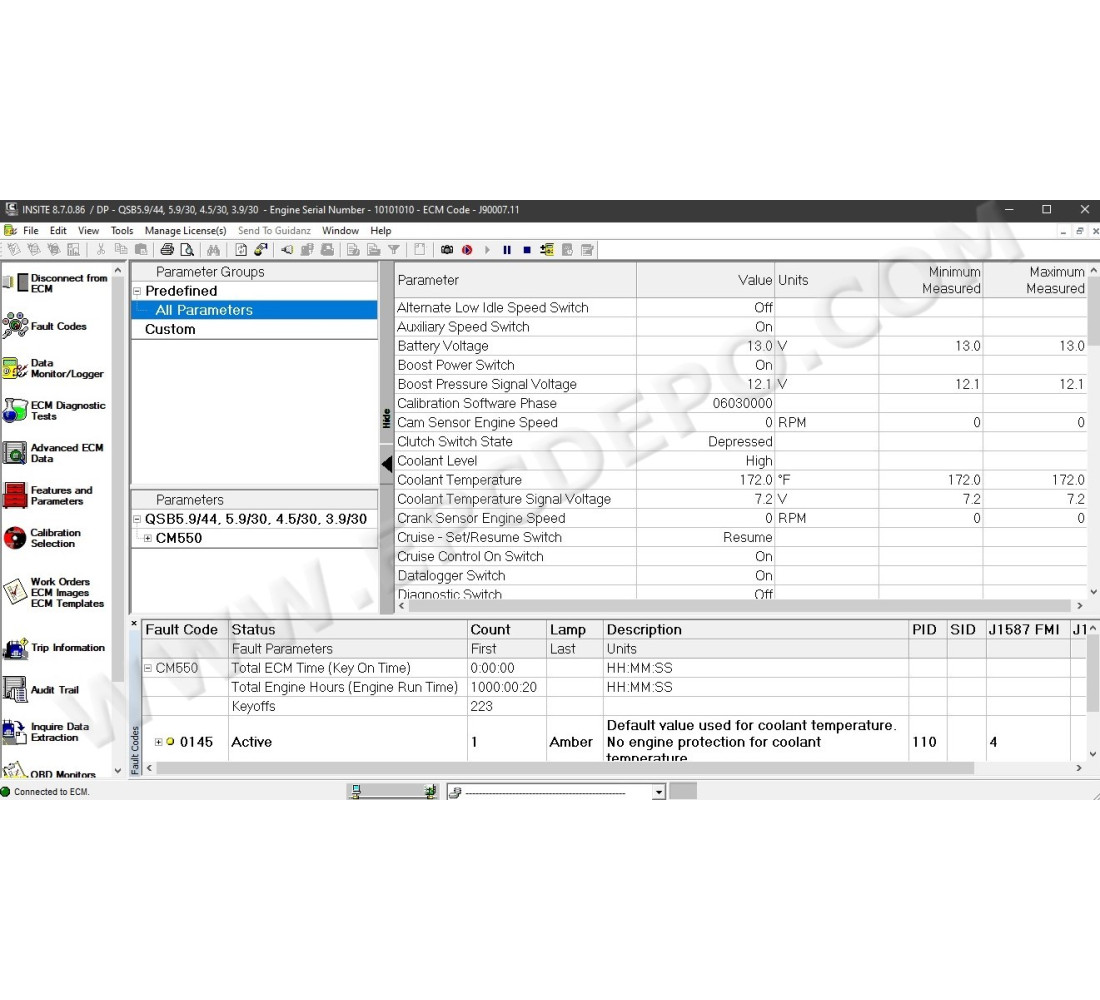

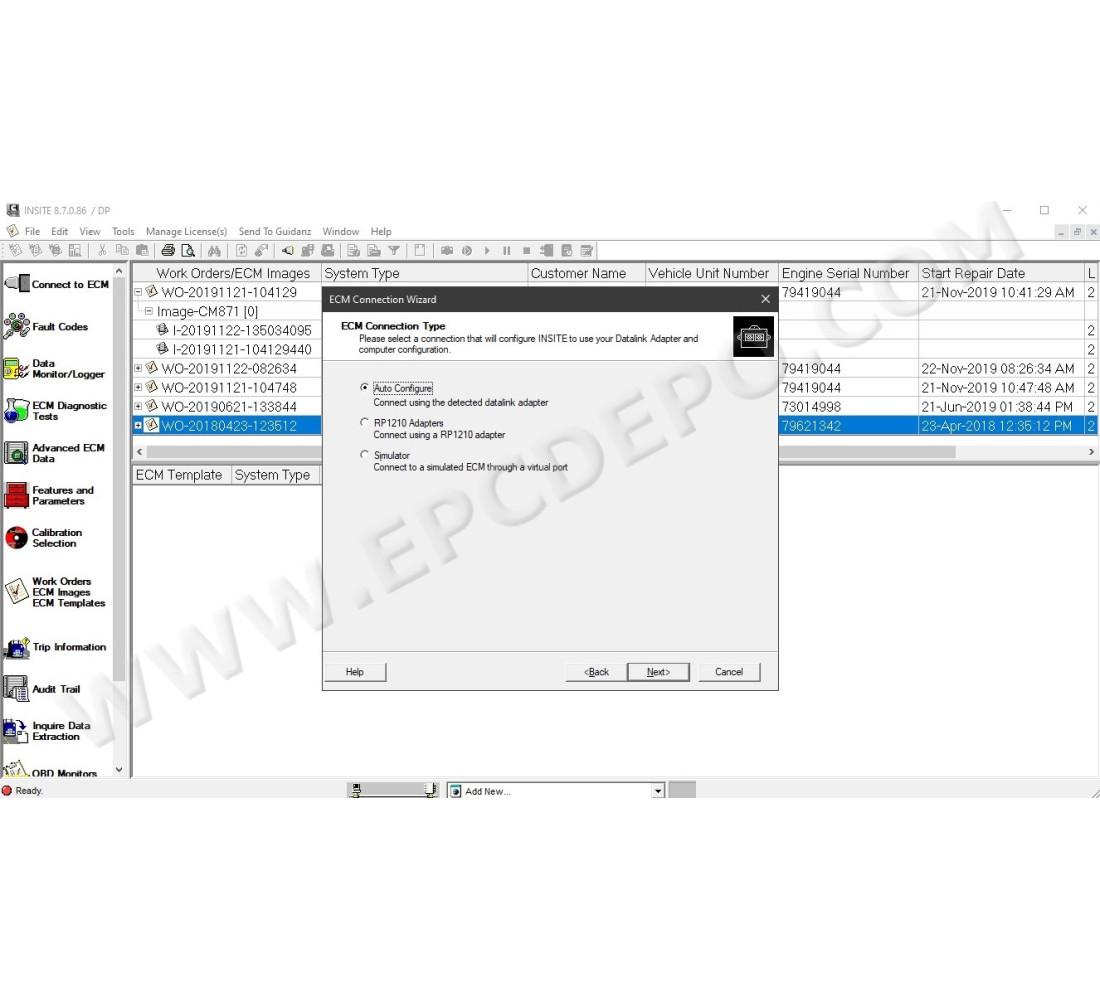

INSITE works with Cummins electronic control modules (ECMs) to diagnose and troubleshoot engine problems, store and analyze historical information about an engine, and modify an engine's operating parameters.
INSITE also enables you to download calibrations to an ECM.
New Insite features and parameters:
-Drive Away Protection
Provides the status of FDS Drive Away Protection Lamp for Agility Starter Lockout feature.
-Low Temperature Coolant Level
Allows monitoring of the Low Temperature Coolant Level.
-Auto Selected Fuel Density
Provides the ability to monitor auto selected fuel density for natural gas fuel delivery system fuel level calculation.
-Viscous Fan Drive Ratio
Provides Fan Drive Ratio Control adjustments for specific viscous fan types in the Fan Control feature.
-Push Button Start and Shutdown
Provides the ability to configure start and shutdown enable for Push Button Start and selection between datalink or hardwired push button types.
-Remote PTO Service Brake and Clutch Override
Allows disabling of Remote PTO by pressing the Service Brake or Clutch Switch.
-Maximum Vehicle Speed Switch Configuration
Allows use of Switch and Switch2 to set a switched limit for maximum vehicle speed.
-Maximum Vehicle Speed Multiplexing
Allows inputs via the datalink instead of a physical ECM input.
Provides interface for the ventilation feature on gas engines.
-Oil Filter Type
Allows selection if a Spin-On or Eliminator oil filter is installed on the engine.
-Fuel Usage Adjustment
Allows adjustment of the ECM Fuel Usage reading to correct for any deviation from the actual fuel usage.
-Fuel Level Configuration
Allows adjustment of settings for the fuel level and fuel characteristics in natural gas fuel delivery systems.
-Maximum Vehicle Speed Switch Configuration
Allows use of Switch1 and Switch2 to set switched limit for maximum vehicle speed.
New Product Support:
B3.9 CM2620 B171C
B6.7 CM2670 EUVI
F4.0 CM2620 NSVI
QSB6.7 CM2450 KT4
QSL8.9 CM2450 KT4
QSZ14 CM2670 CSIV
ISM11 CM876 M103
X15 CM2350 X132C
ISX15 CM2350 X129
Z13 NSV 2150E IAT
QSX15 CM2350 X130
Changes and new features:
-Aftertreatment SCR System Cleaning
Allows initiating a cleaning of the Aftertreatment SCR System on a multi-module configuration.
-Fuel Level Override Test
Overrides the fuel level value to check if the fuel gauge reflects the correct fuel level and allows adjustment of fuel level when test is running.
-Shut Off Valve Solenoid Actuator Test
Tests the function of the Shut-Off Valve Solenoid. The user can visually check the valve and solenoid operation while the test running.
-Aftertreatment SCR System Health Monitor
Allows monitoring of several different parameters including aftertreatment requests, Low Level/Moderate level counters, timers and white smoke status in order to manage heat in the engine. Can also be used to reset the SCR Catalyst parameters.
-Aftertreatment SCR Regeneration History
Stores and displays historical data from recent SCR regenerations.
-Aftertreatment DPF Passive Desoot Assist Time
Stores and displays historical data associated with the Maximum Aftertreatment Diesel Particulate Filter Soot Load and Maximum Aftertreatment Diesel Particulate Filter Outlet Temperature conditions.

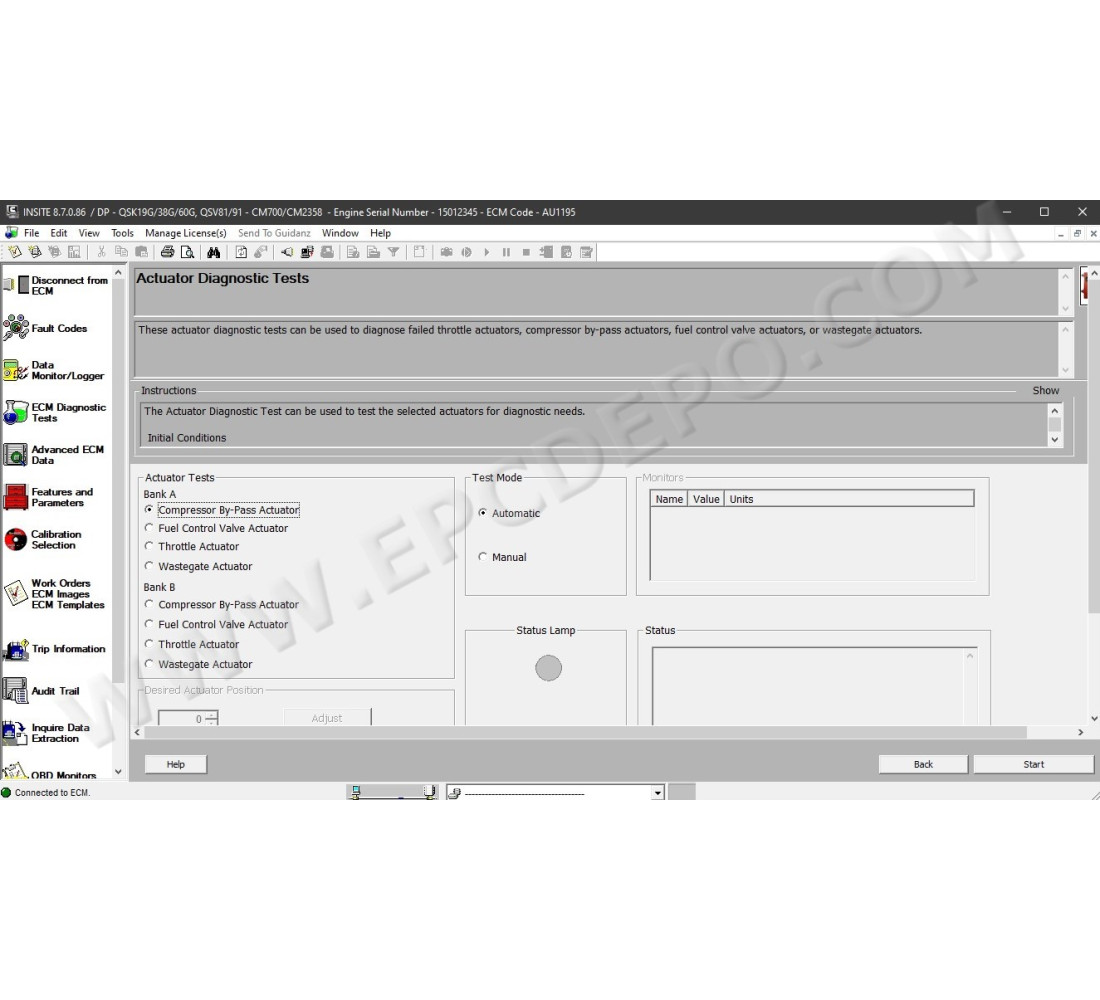

-Turbocharger Actuator – Calibration download only.

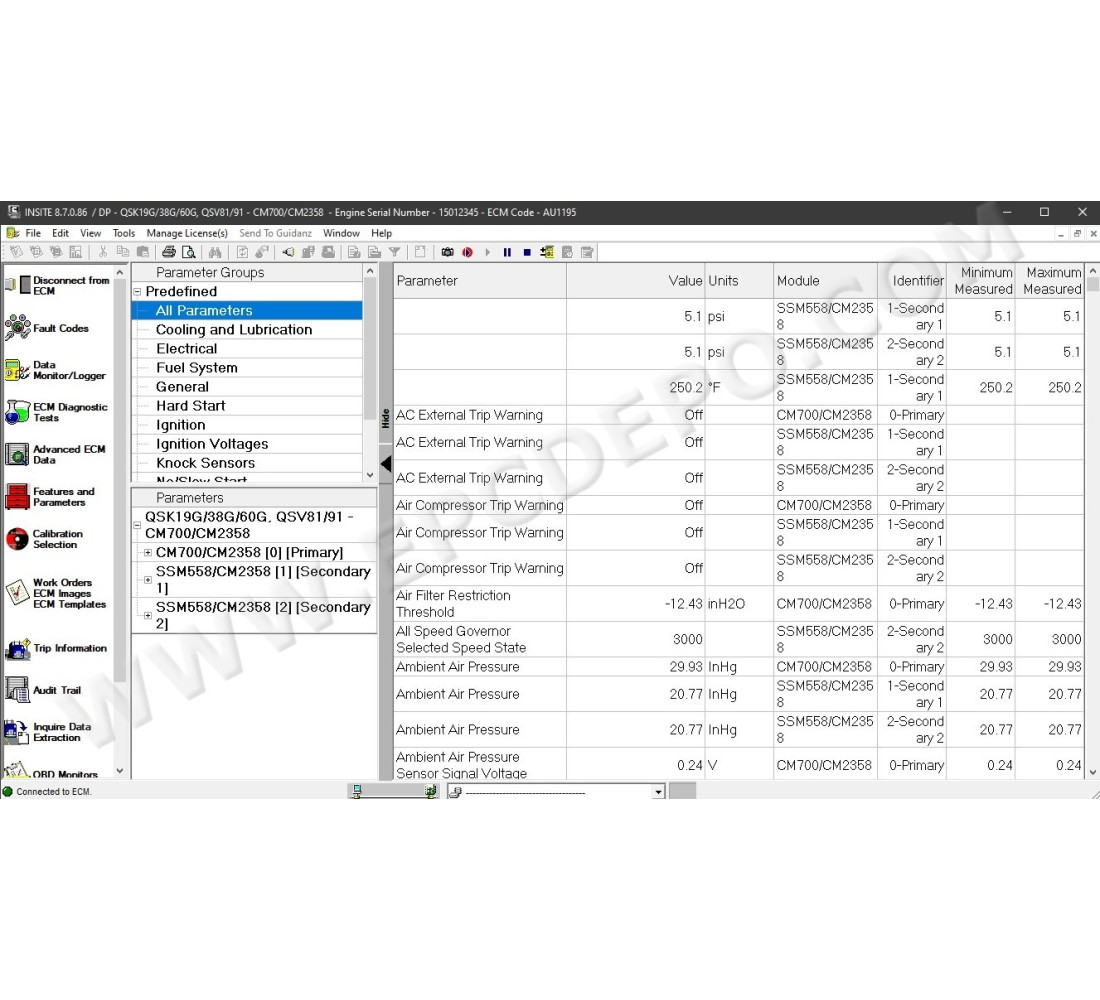

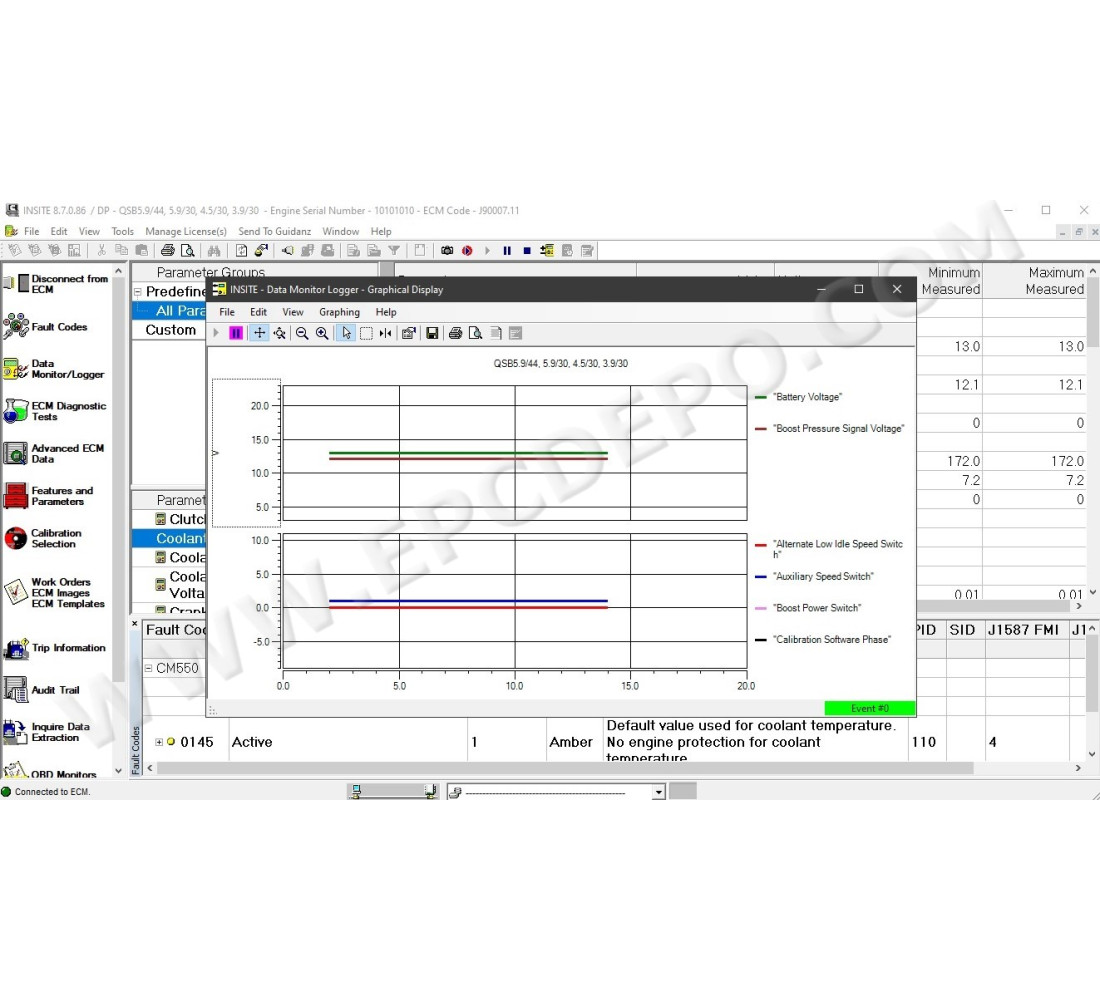

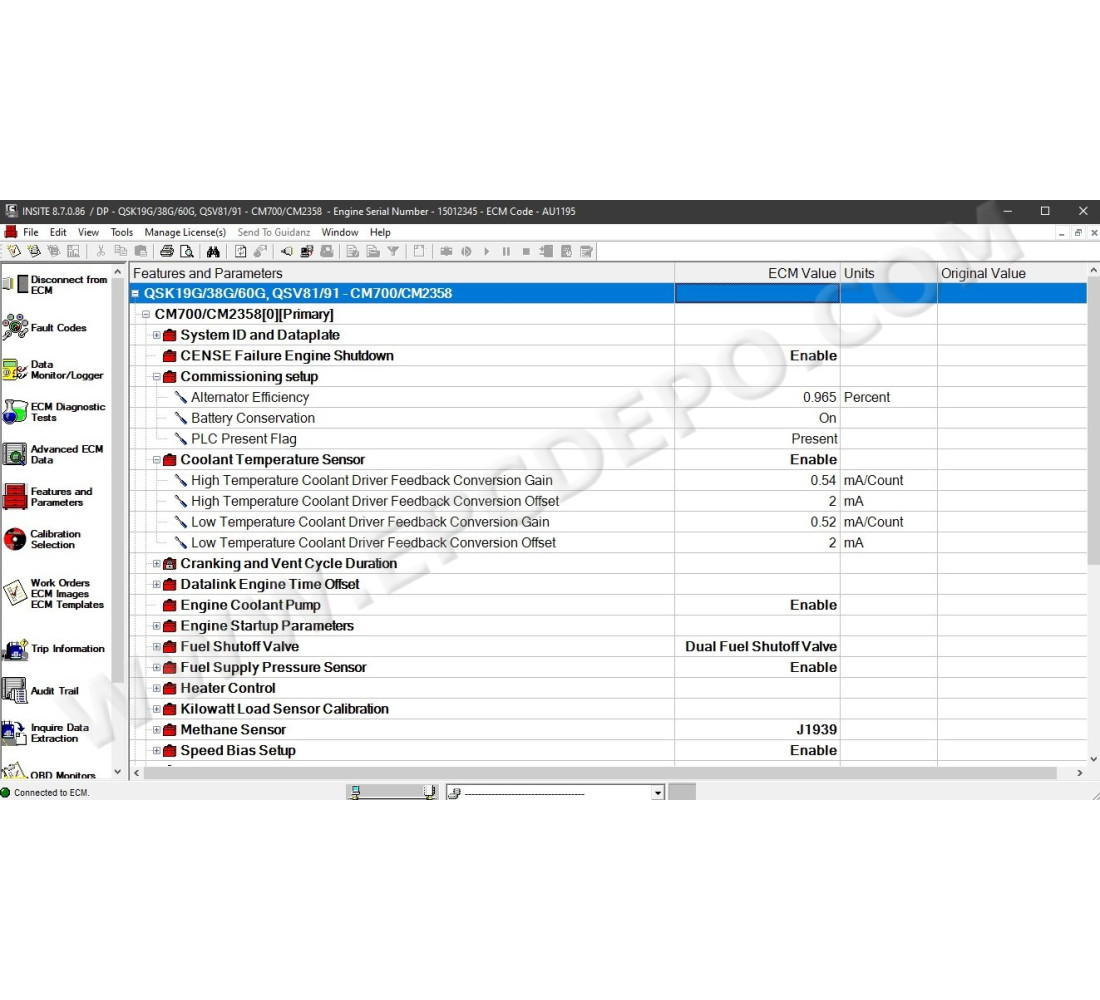

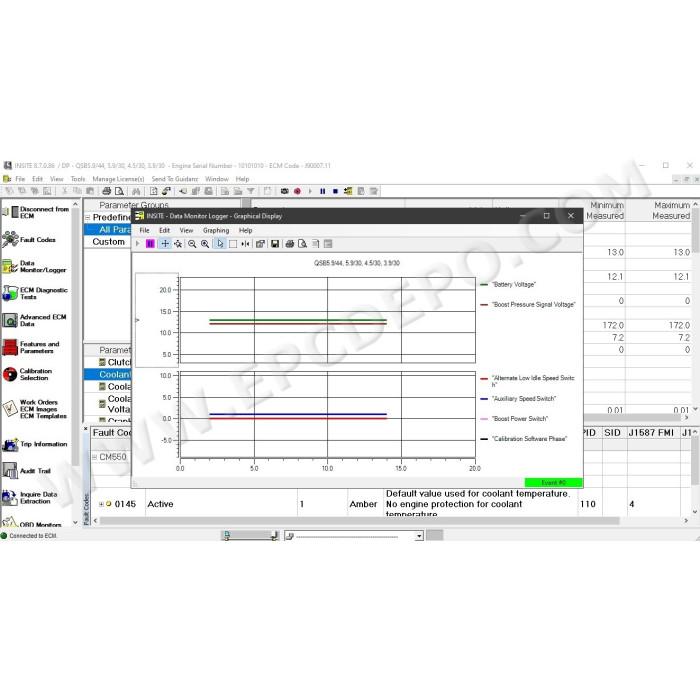

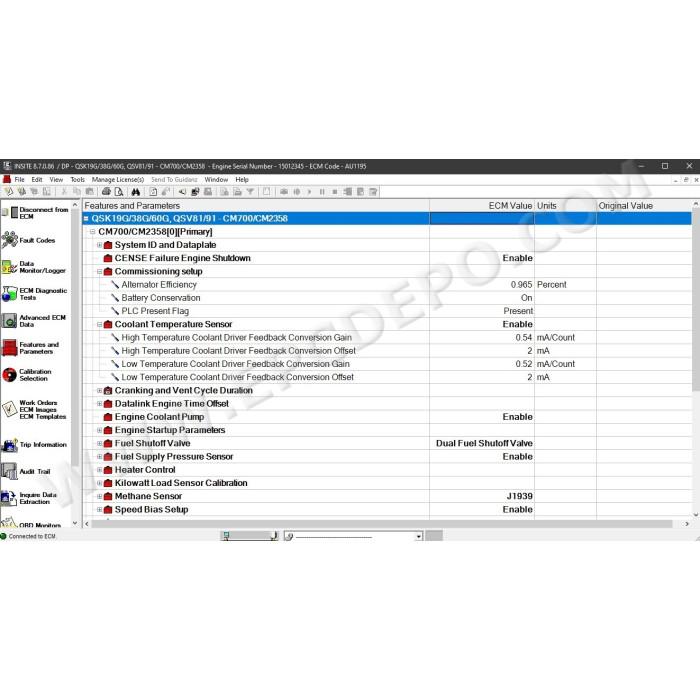

-The Features and Parameters and Data Monitor/Logger column widths will remain the same between INSITE sessions.
-The Out of Range window in Data Monitor/Logger has been removed.

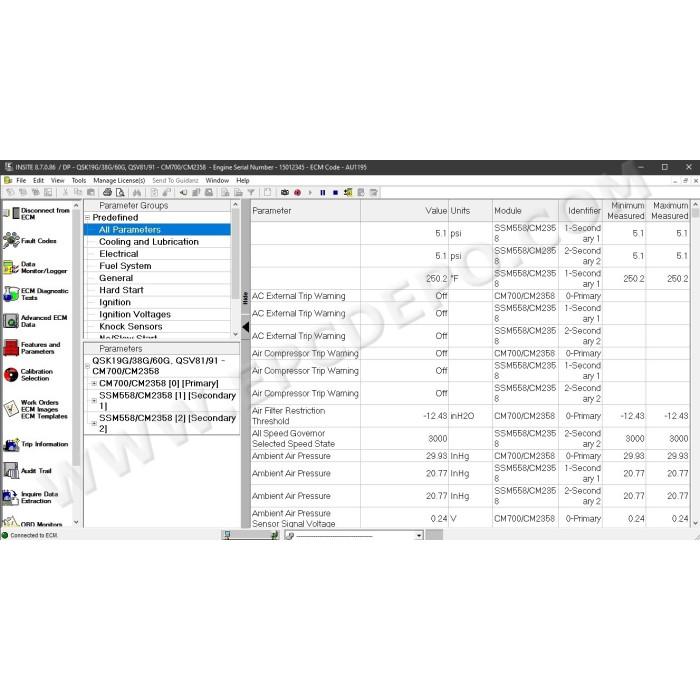

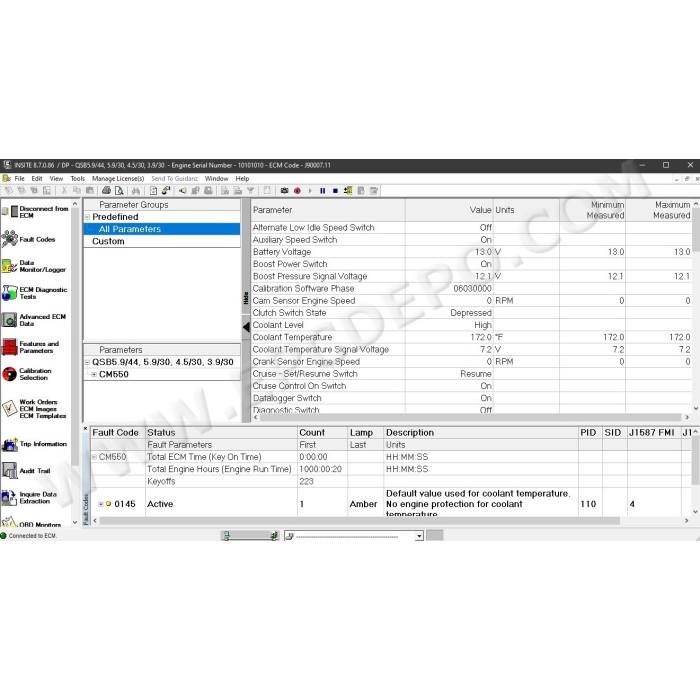

-The Upper and Lower limit columns have been modified to display the Minimum
Measured and Maximum Measured values read by INSITE while the parameters are being monitored.
-A performance improvement has been implemented for reading calibrations on network drives.
-The INTELECT folder now contains an INSITE Engine Feature file. The individual
engine help files have been eliminated. The INSITE Engine Feature file lists the help
descriptions for the engines Features and Parameters, Diagnostic Test and Advanced
ECM Data help content.

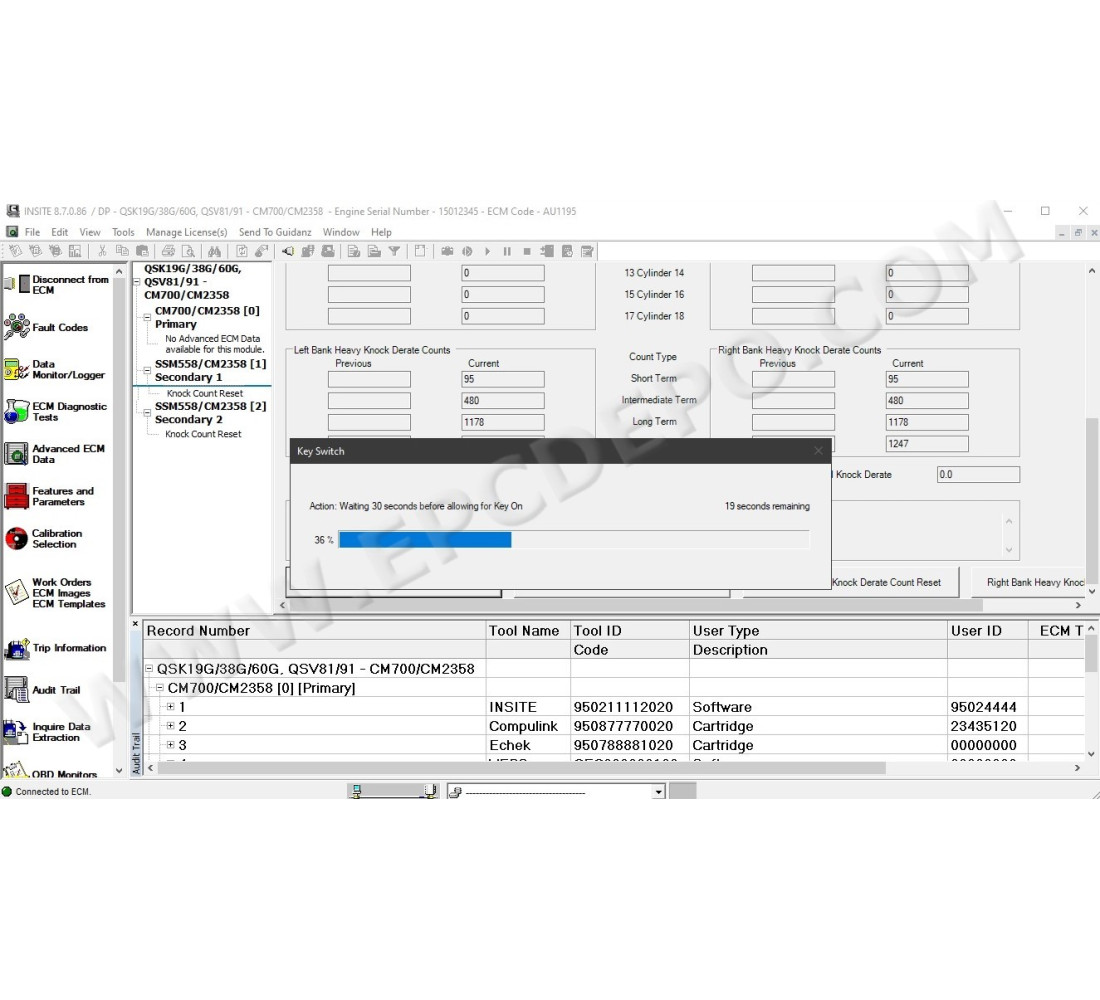

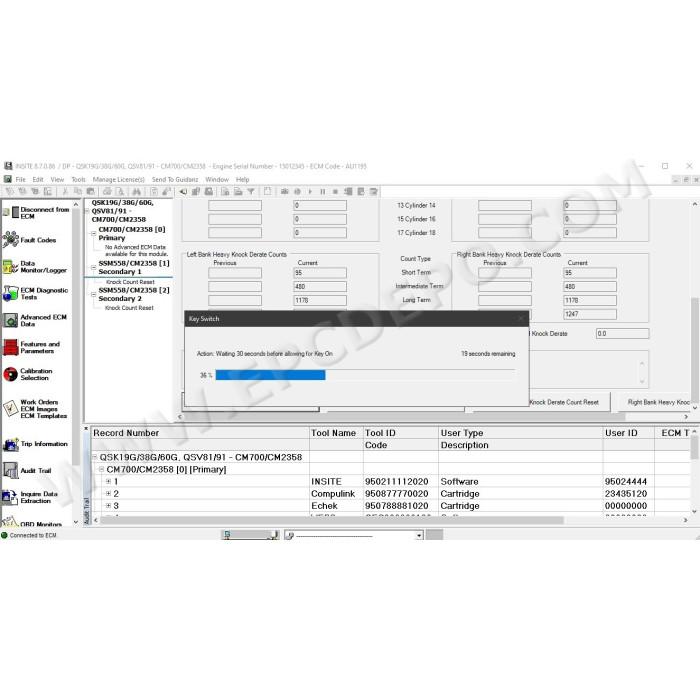

-The Audit Trail has been expanded to support up to 8 Audit Trail entries, if supported by the calibration.
-The Calibration Selection has been redesigned to include a separate section for
Programmable Datalink Device (PDD) Calibrations such as the Aftertreatment Device or
Turbocharger Actuator. This will allow users to bypass connecting to the ECM and download directly to a PDD.

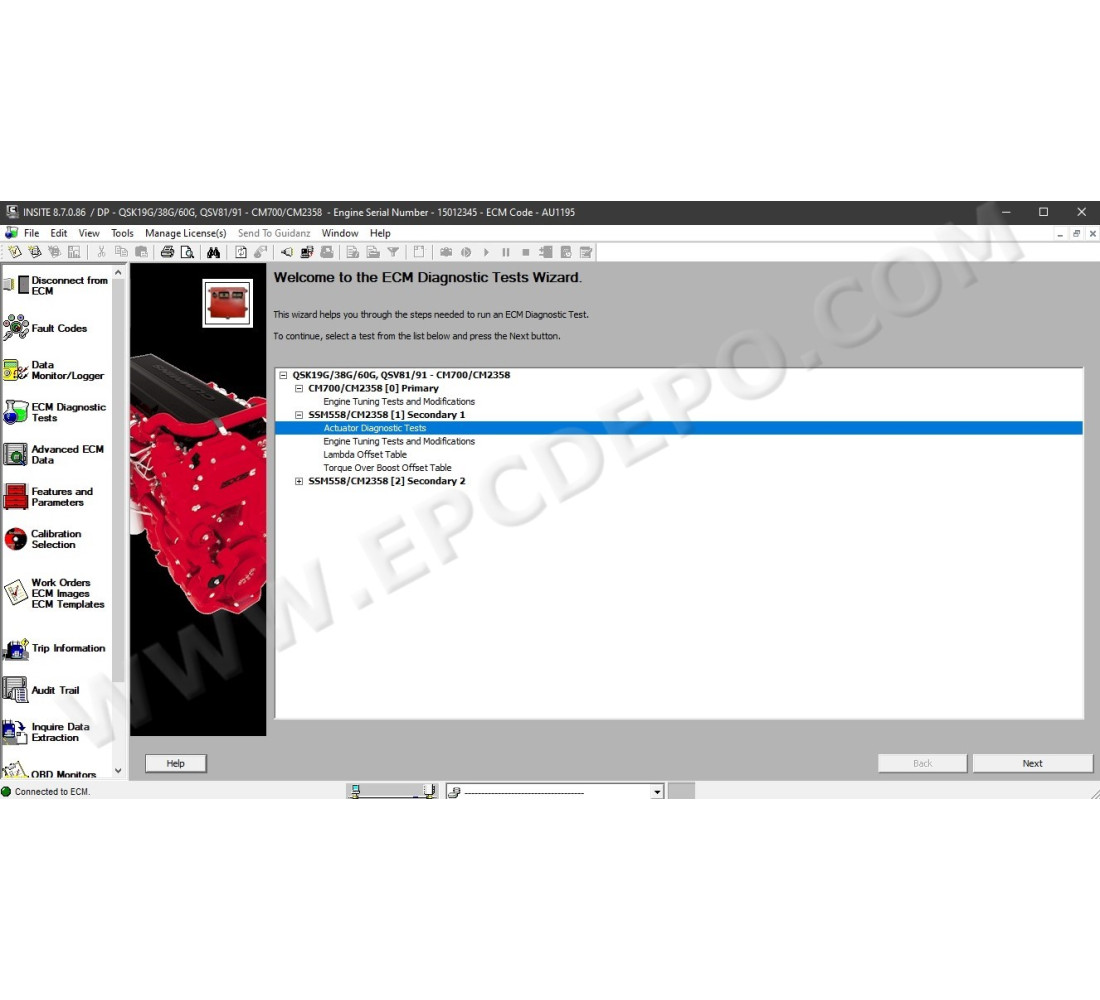

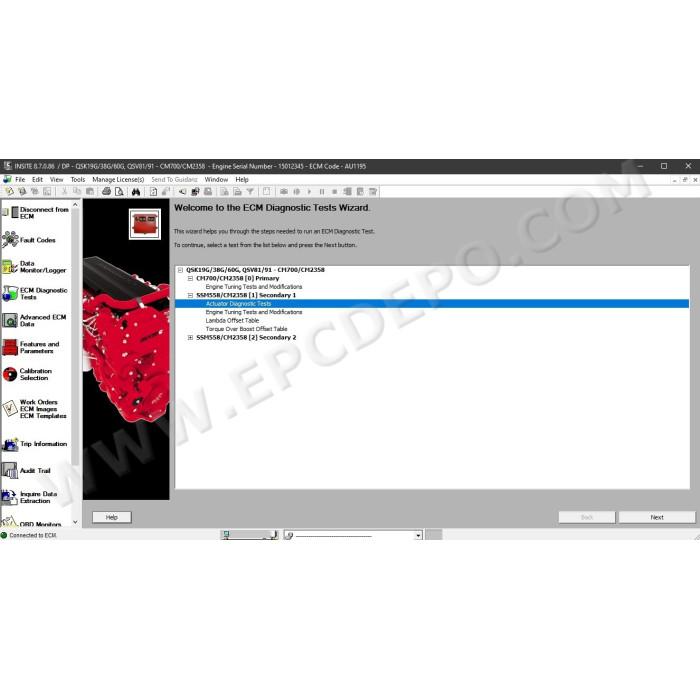

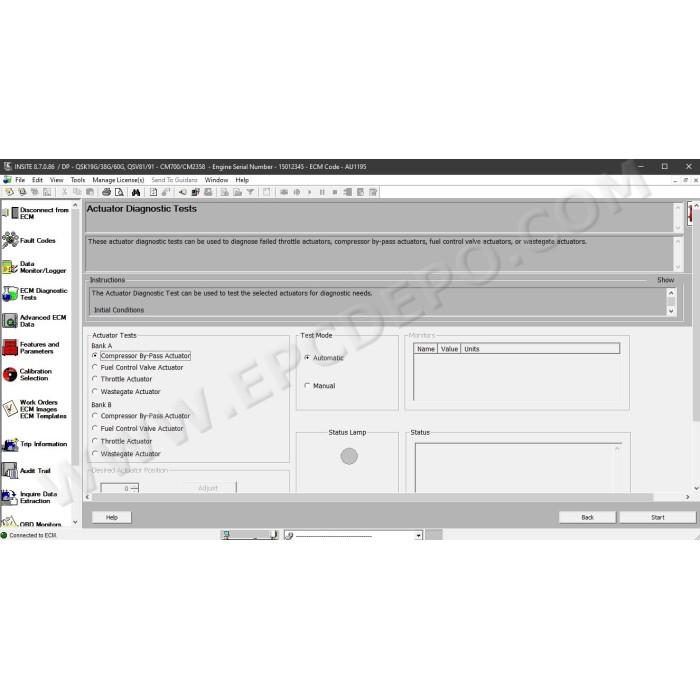

-INSITE will only display Advanced ECM Data features and ECM Diagnostic Tests if they are supported by the calibration.
-The ECM Key Off Time has been increased for certain functions in the tool.
-A print preview of a template has been added to the right-click menu in Work Orders.
Note: HTML is not translated!
