CUMMINS INPOWER PRO 14 DIAGNOSTIC TOOL

Description CUMMINS INPOWER PRO 14 DIAGNOSTIC TOOL

07.2023 / All Regions / 1 DVD / Windows 11, Windows 10 / 32 & 64 bit

Cummins INPOWER PRO 14

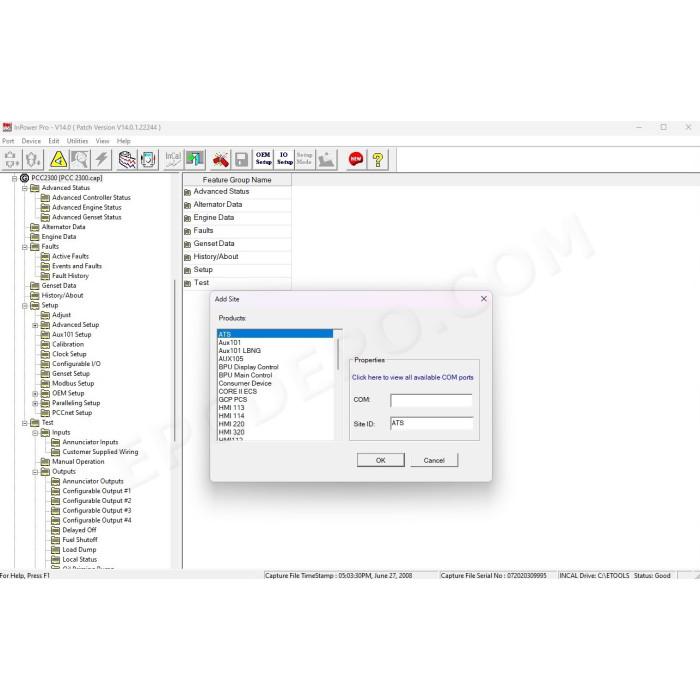

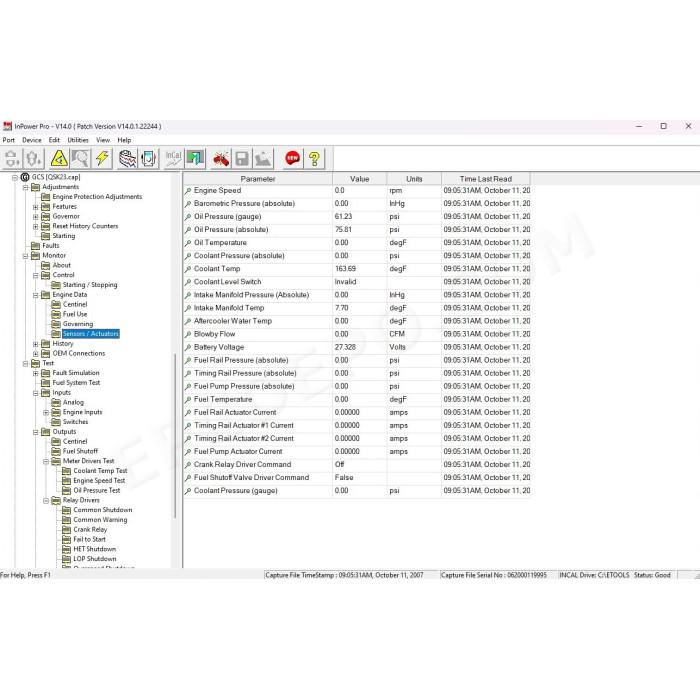

InPower is a service and diagnostic tool. This tool provides electronic service functions including; adjustments for trims and settings, monitoring, strip chart, data logging, viewing faults, and report capability.

The tool can also be used to save a device’s parameter trims and settings to a file. The stored settings can be viewed off-line and they can be used to setup multiple installations of the same application controller type.

InPower consists of a family of software products. Each product is designed to support a unique power generation related application, such as Generator Sets (Gensets), Generator Drive (G-Drive) and Automatic Transfer Switches. Each product is packaged and installed separately, and each one has a unique serial number and registration password, to provide software security.

The service PC, running InPower, is connected to the device (controller) via an RS-232 serial communications null-modem cable. The serial cable is connected to the (COM) port on the PC with a DB9 connector. The other end of the serial cable is connected with either a DB9 connector or a 9-Pin Deutsch connector, depending on the application.

InPower provides the following functions for monitored equipment:

•    Direct connection capability from a personal computer to PowerCommand genset controls, transfer controls, and system controls; For details on devices supported refer Technical Details tab.

•    Allows the monitored equipment to send alarm information to a connected computer.

•    Configurable for units of measurement, and level of user access (read only, read/change values, administrator).

•    Adjustment of nearly every adjustment parameter within the connected control system, including parameters such as voltage and frequency levels, gains, protection set-points and other values.

•    Convenient programming of configurable inputs in the controllers.

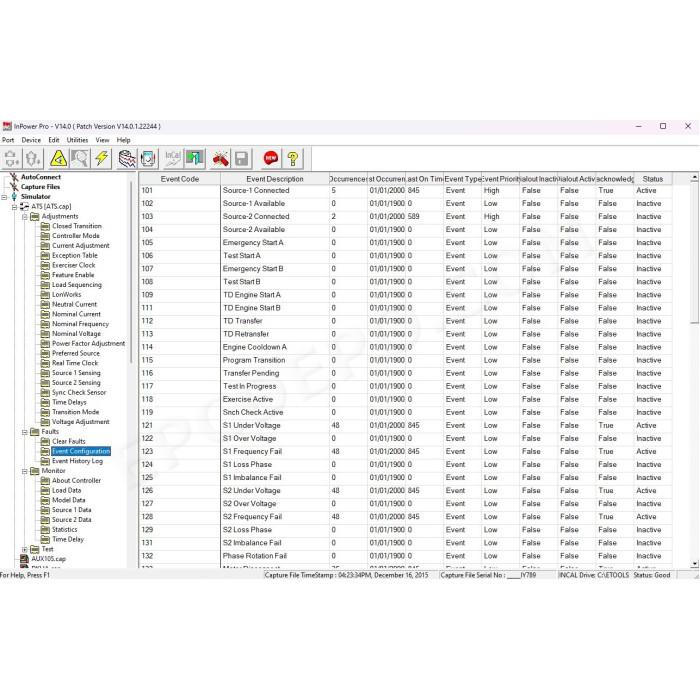

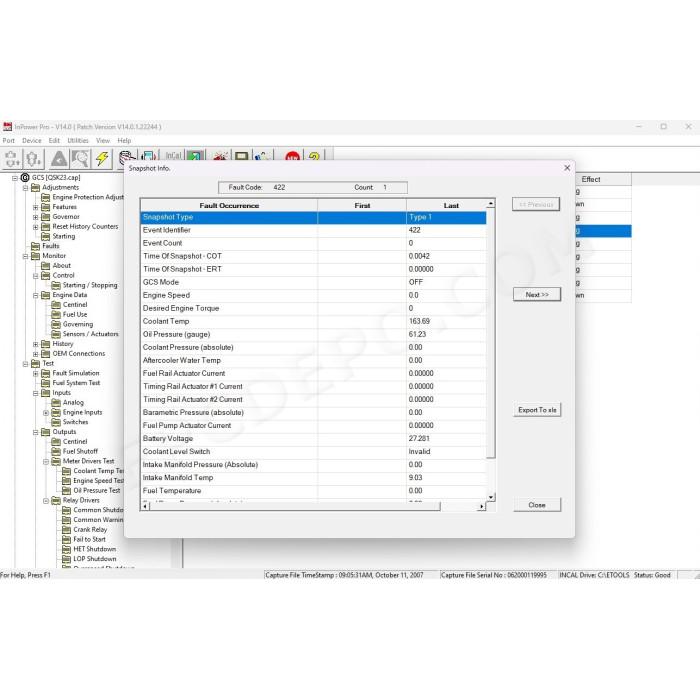

•    Viewing of equipment history, fault codes, and data associated with fault codes.

•    Generates reports of monitored data

•    Allows released firmware upgrades on Power Command genset controls.

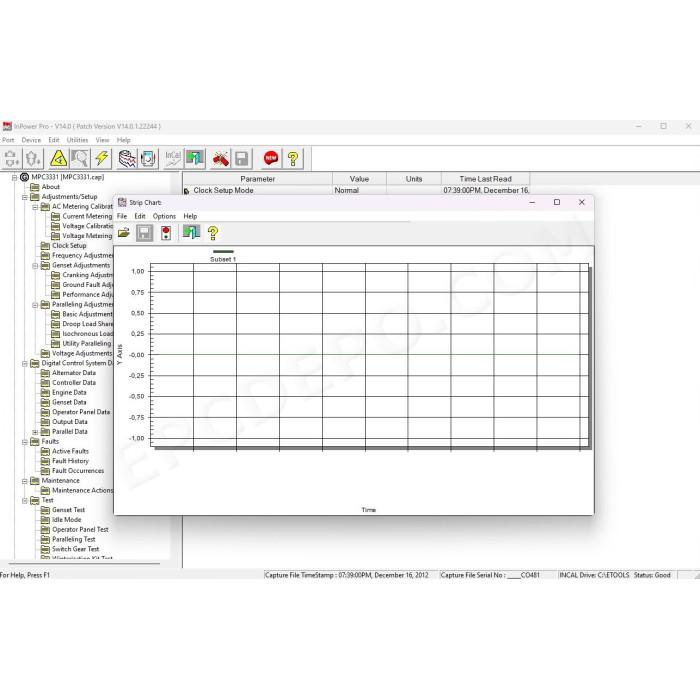

•    Plot critical parameters in a strip chart format, and export data to 3rd party software tools for manipulation and viewing.

•    Simulate fault conditions in genset controls in compliance to NFPA 110 requirements to demonstrate functionality of the controller and monitoring equipment in a facility.
