CHALLENGER COMBINE 660B, 670B SERVICE MANUAL

Description CHALLENGER COMBINE 660B, 670B SERVICE MANUAL

Challenger Rotary Combine 660B, 670B pdf service & repair manual

MANUAL CONTENT:
General Information
Safety
Signal Words
Shields and Latches
Header Lift Cylinder Stop
Rear Hook
Travel On Public Roads

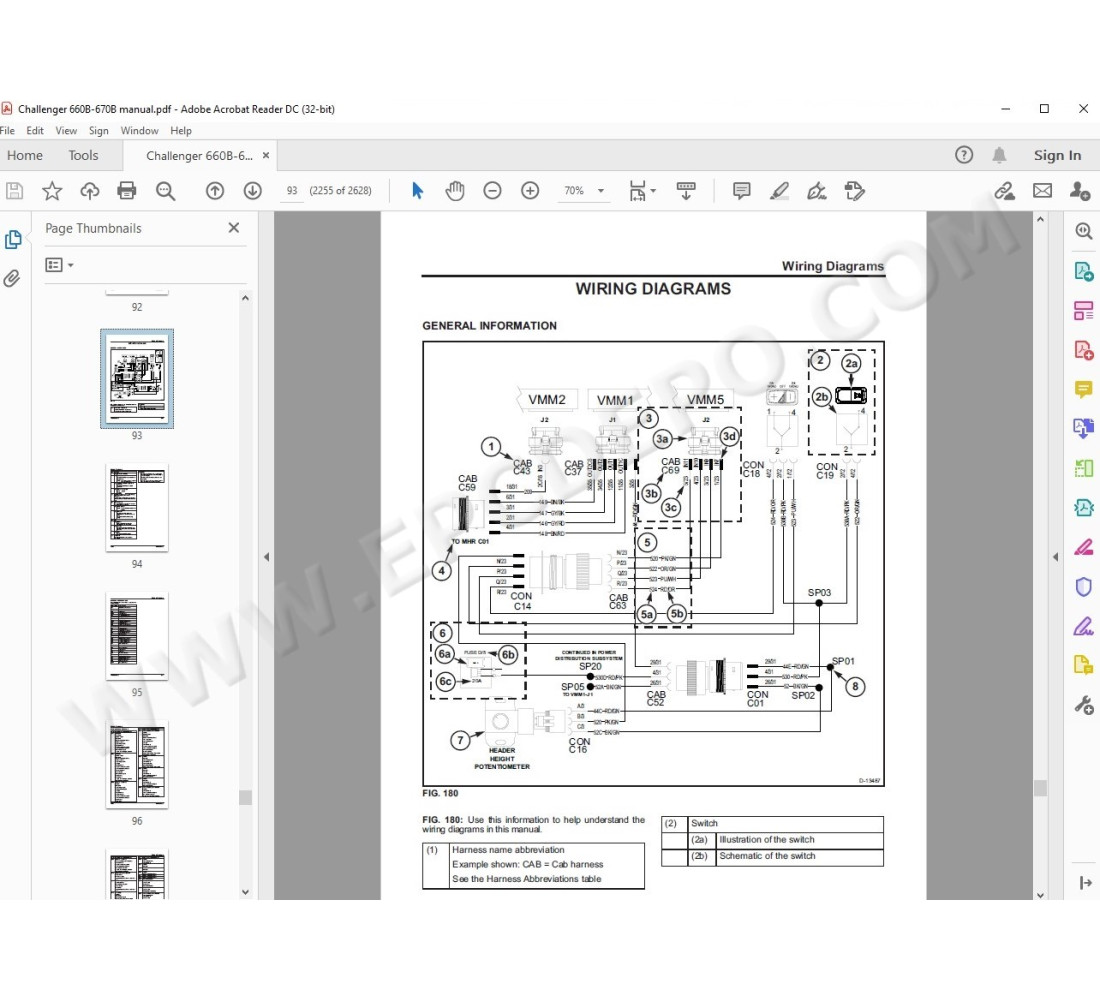

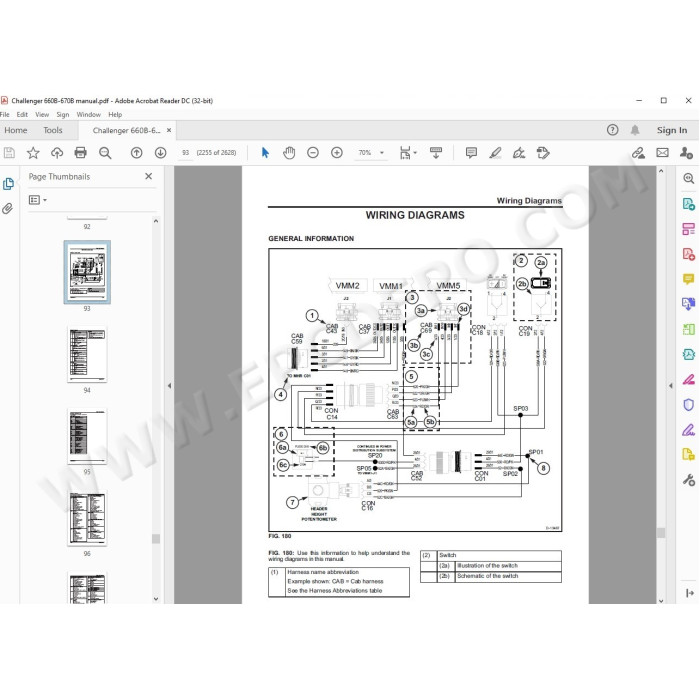

GENERAL INFORMATION

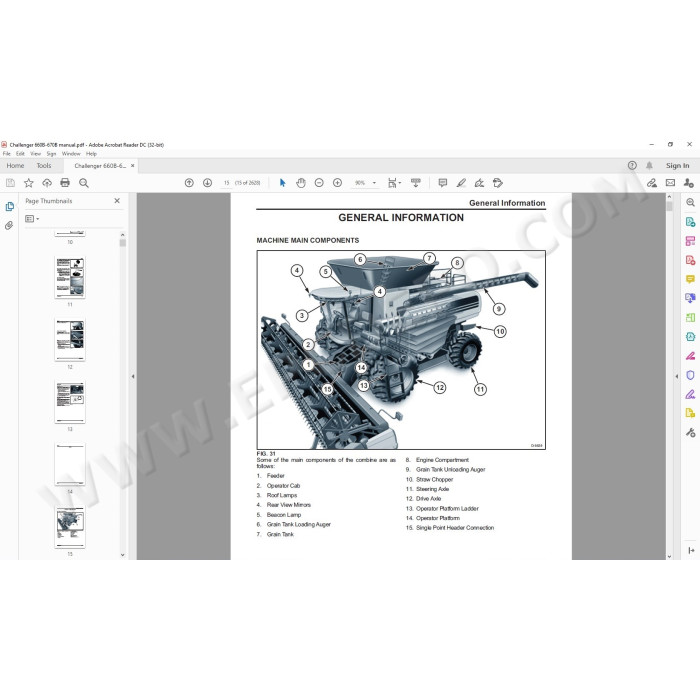

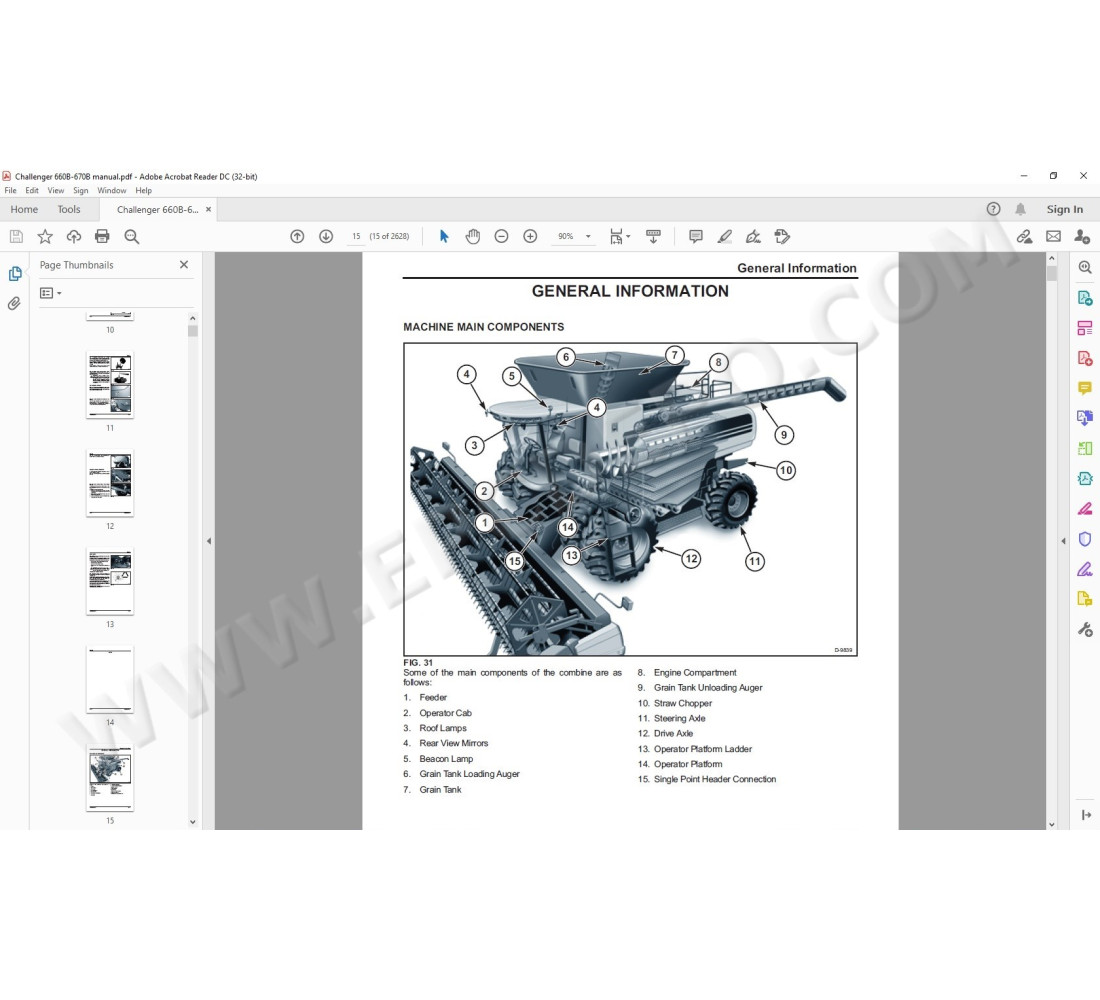

Machine Main Components
How A Combine Works

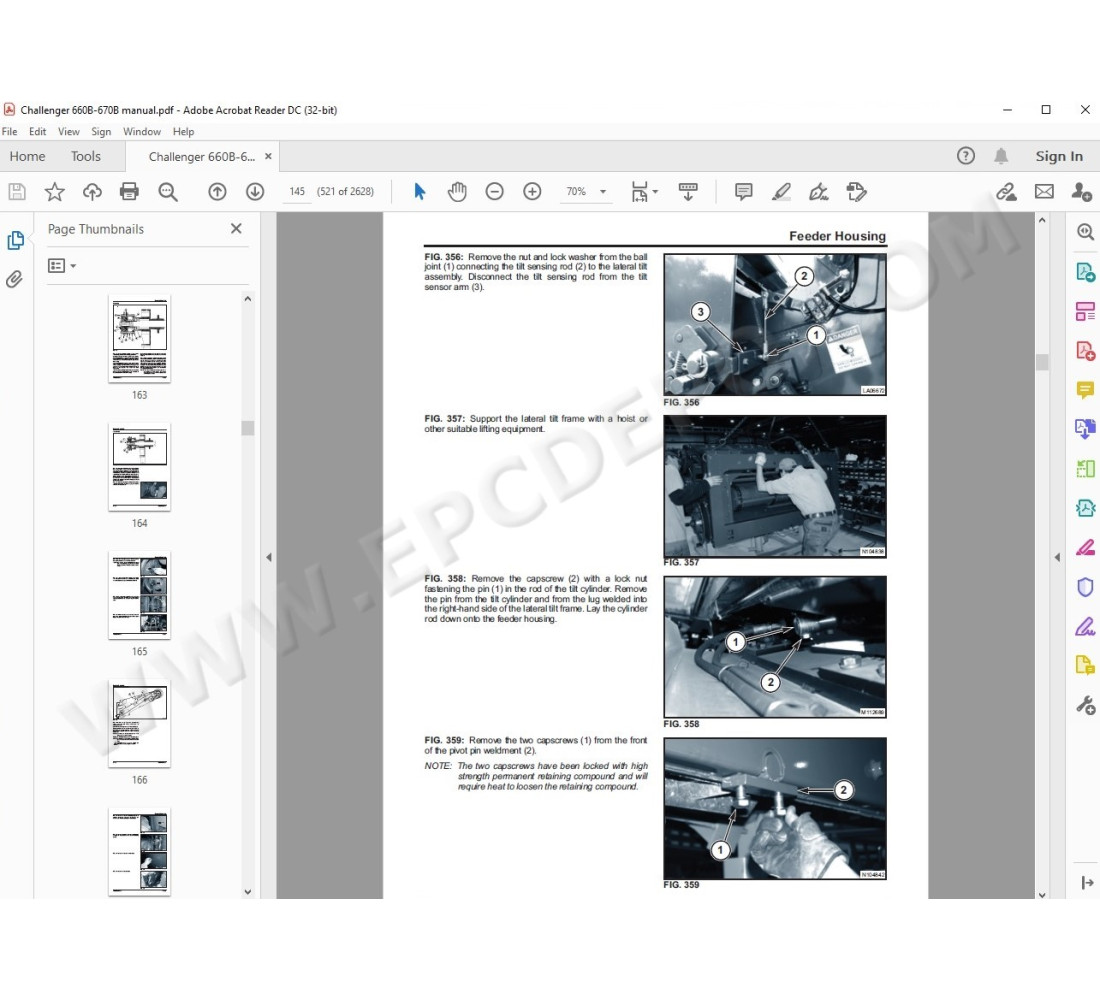

Cutting and Feeding
Cleaning

Combine Identification
Machine Serial Number
Engine Serial Number
Fuel Injection Pump Dataplate
ECM Dataplate
Transmission Serial Number
Final Drive Serial Number

Headers
Lubrication and Maintenance
Lubricants
Service Procedures
Service Periods
Lubrication and Maintenance

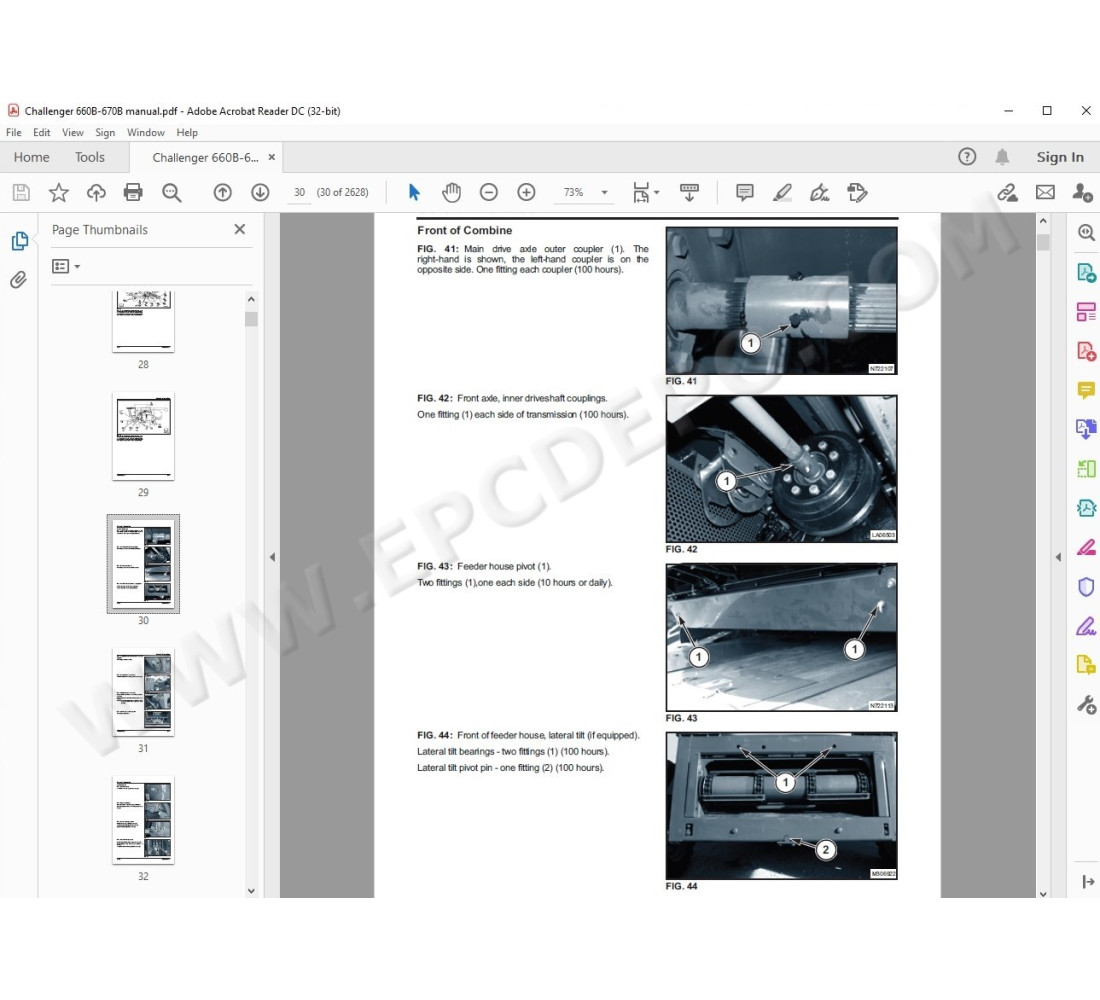

Lubrication Details
Front of Combine
Left-hand Side
Right-hand Side
Rear Axle

Auto Lube
Auto Lube Intervals
Auto Lube Diagnosis

Engine
Type of Engine Oil
Viscosity
Oil Additives
Checking Oil Level
Changing Engine Oil and Filters

Rotor Gearbox
Transmission
Checking and Changing Lubricant
Contents

Brakes
Master Cylinder Oil Reservoir
Bleeding Brake System
Final Drive
Tires and Wheels
Tire Pressure
Dual Tires
Maintenance of Tires
Removing Wheel from Combine
Wheel Installation
Tire Dimensions

Drive Belts
Banded Drive Belt
Maintenance of Belts

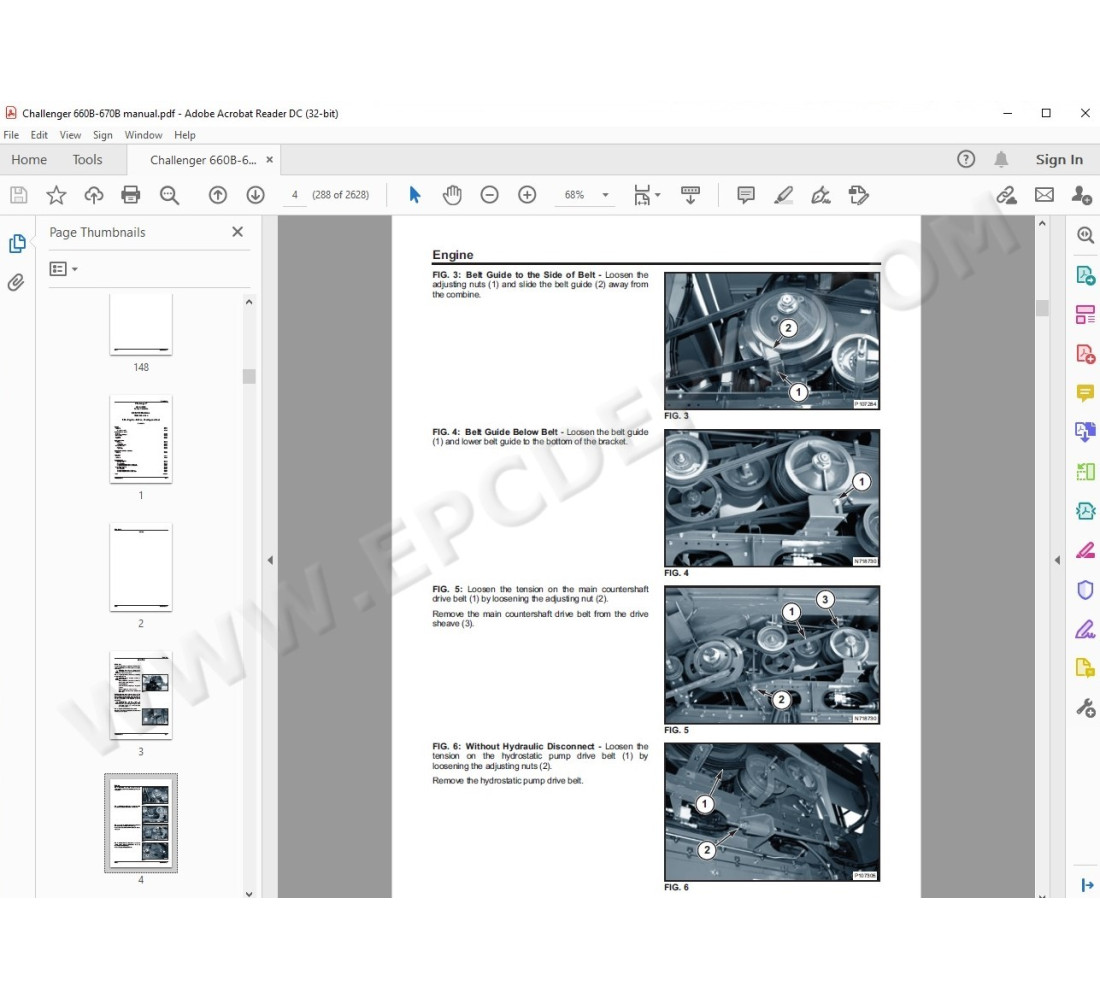

Belt Changing Guides
Belt Sheave Alignment
Belt Run In Procedure
Belt Troubleshooting
Belt Problem and Wear Guide

Roller Chains
Inspection of Drive Chains and Sprockets
Drive Chain Adjustment and Tightening
Drive Chain Sprocket and Idler Alignment
Drive Chain Elongation and Sprocket Wear
Normal Tooth
Not Normal Tooth Wear
Worn Chain on New Sprockets
Drive Chain Service Tips
Chain Replacement
Cleaning and Lubricating Chains
Drive Chain Lubrication
Drive Chain Lubricants
Good Drive Chain Lubrication
Roller Chain Drive Troubleshooting Guide

Speed of Components
Drives Listing and Specifications
Drives Speeds And Specifications
Engine Platform
Engine Platform Ladder
Engine Compartment

Fuel System
Fuel Handling
Fuel Vent Breather
Fuel Filter/Water Separator
Bleeding the Fuel System
Engine Cooling System
Coolant System Monitoring
Monitor Warnings
Anti-Freeze Type
Coolant Change Period

Engine Cooling System Coolant
Checking Coolant Level
Radiator
Thermostat
Draining System
Filling System

Engine Air Cleaner
Outer Filter Element
Inner Filter Element

Hydraulic
Checking Oil Level
Hydraulic Oil Filter
Changing Hydraulic Oil
Contents
Removing Air From Hydraulic System
Hydraulic Pump
Steering Priority Valve
Main Hydraulic Control Valve
Unloader Auger Engagement Valve
Pump Drive Disconnect Valve
Accumulator
Hydrostatic Drives
Hydraulic Oil Cooler
Rotor Speed Control
Air Conditioning System
Compressor
Condenser
Receiver-Drier
Cab Filters
Cab Filter - Primary
Cab Filter - Secondary
Recirculation Filter
Air Filter Cleaning Procedure
Windshield Washer Reservoir
Cleaning Windshield
Storage Preparation
Combine
Engine
Preparation For Use After Storage
Combine
Torque Charts
Standard Torque Specifications
Metric Capscrew Markings and Torque Values
Metric Conversions
Fractions, Decimals, and Millimeters Conversion Chart
Decimal Equivalents of 8ths, 16ths, 32nds, and 64ths
Decimal Equivalents Of Letter Size Drills
Decimal Equivalents of Number Size Drills
Tap Drill Sizes - S.A.E. & Metric
American Standard Pipe Thread and Tap Drill Sizes
Electrical Formulas
Amperes (Current Flow)
Volts (Electromotive Force)
Ohms (Resistance)
Watts
Horsepower

Belt Speed Calculation Formulas
Geometrical Formulas
Circumference of a Circle
Area of a Circle
Volume of a Cylinder
Volume of a Sphere
Area of a Triangle

Metric to Imperial and Imperial to Metric Conversion Factors
Measures of Temperature
Measures of Power
Measures of Pressure
Measures of Length
Measures of Area
Measures of Volume (Dry)
Measures of Volume (Liquid)
Measures of Mass (Weight)
Measures of Effort (Torque)
Reference Tables
