• Brand:Allison
  • Product Code: Allison
  • Availability: In Stock
  • $150.00

  • Ex Tax: $150.00

09.2021 / All Regions / 1 DVD / Windows 11, Windows 10 / 32 & 64 bit

Allison Transmission DOC 2021 Diagnostic Optimized Connection

Allison DOC designed for use with Allisons 3000/4000 families transmissions, 1000/2000 families transmissions, TC10 transmissions using CEC5/CEC3/CEC2/CEC1 controls. Capable of communicating with Allison 6th Gen control system module (TCMs 1000/2000, 3000/4000), 5th Gen control system module, 4th Gen control system, WTEC II and WTEC III control units, H40/50 EP systems

Languages: English, German, French, Italian, Portuguese, Spanish, Thai, Korean, Chinese, Japanese, Russian, Polish

Monitors data from the HCMs, Engine, DPIM and Energy storage system
Adds basic support of Allison 6th Gen controls hardware and software ahead of full production
Adds interfaces for Allison product cybersecurity system
Display J1939 Data is enabled for 4th Gen and later 1000 series, 2000 series, 3000 series, 4000 series and TC10 product family transmission
Monitors 3000/4000 product families TCM
Monitors 1000/2000 product families TCM
Monitors TC10 TCM data
Monitors CEC5/CEC3/CEC2 ECU data
Monitors CEC ECU, using a proprietary protocol displays multiple transmission parameters
Reads engine faults

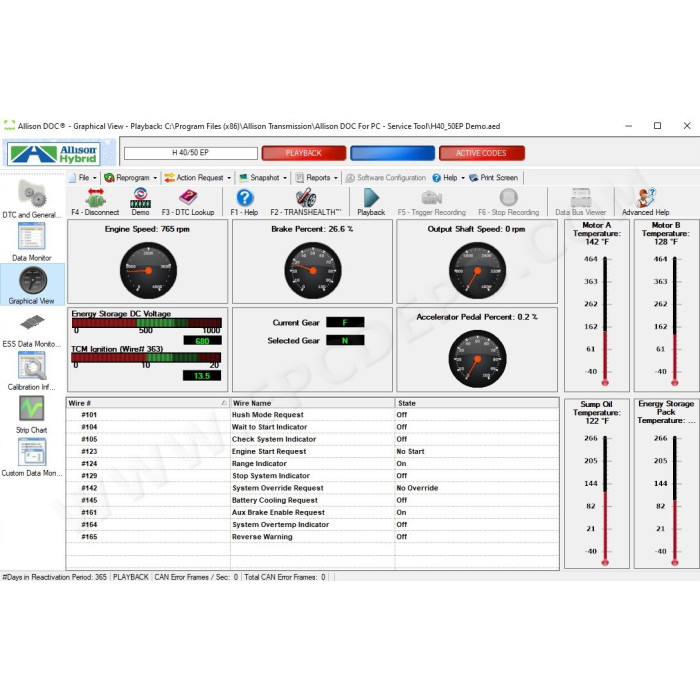

Displays a graphical instrument panel with analog and digital gauges
Displays a graphical strip chart
Records and plays back diagnostic sessions
Prints diagnostic reports
Reprogram selected TCM parameters

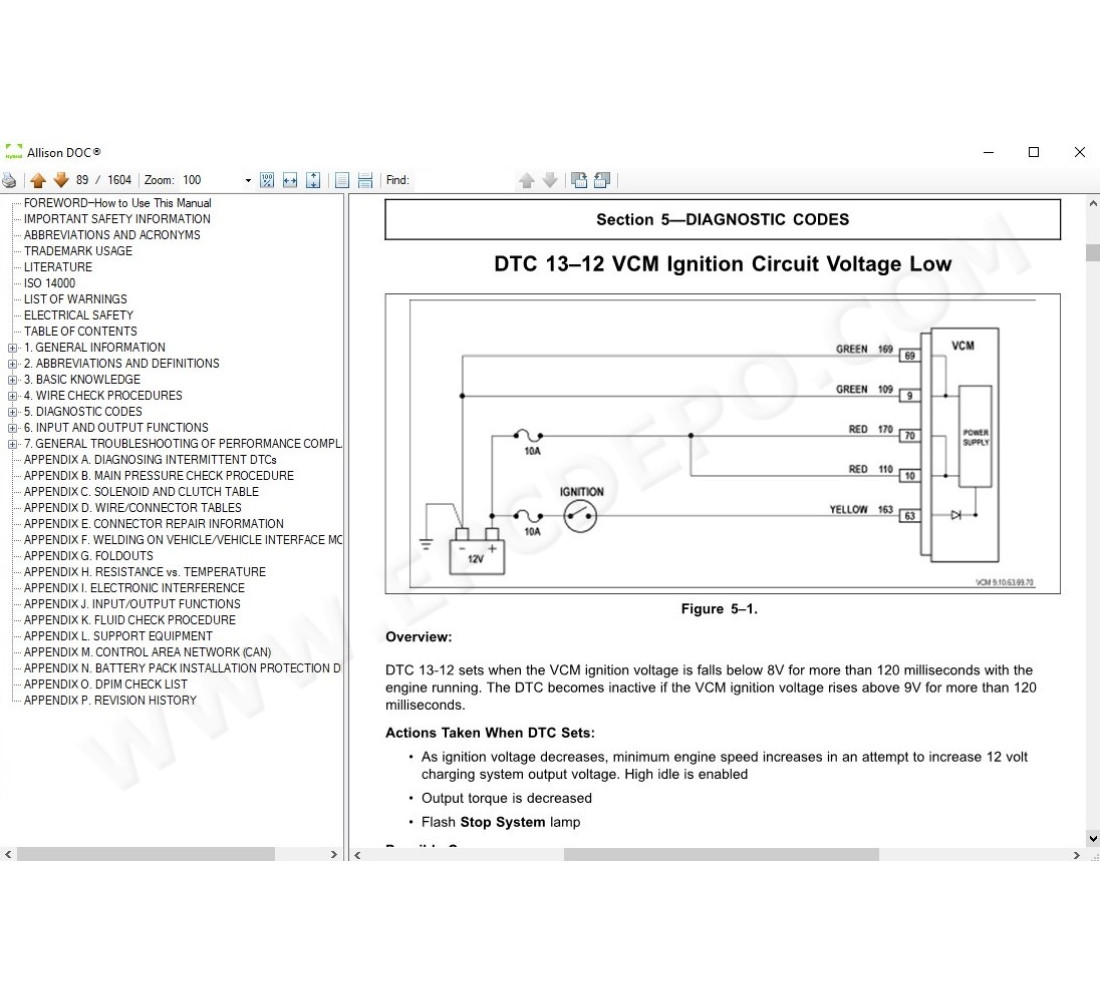

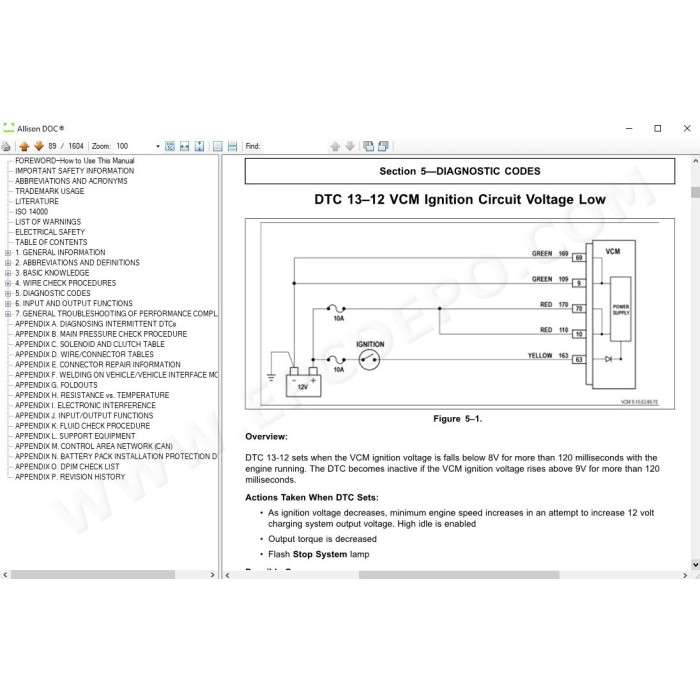

Diagnostic trouble code information with a direct link
Security measures to control reprogramming TCM/ECU parameters

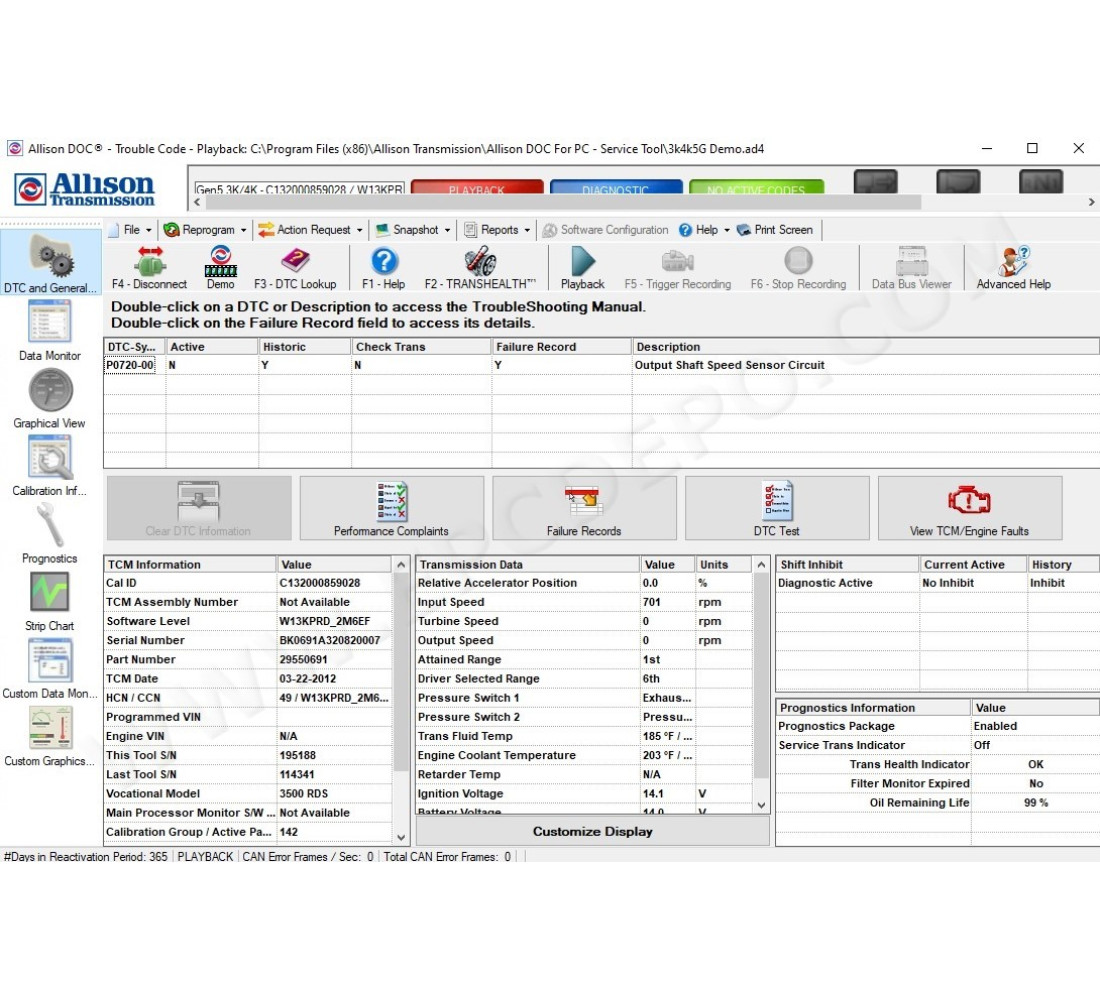

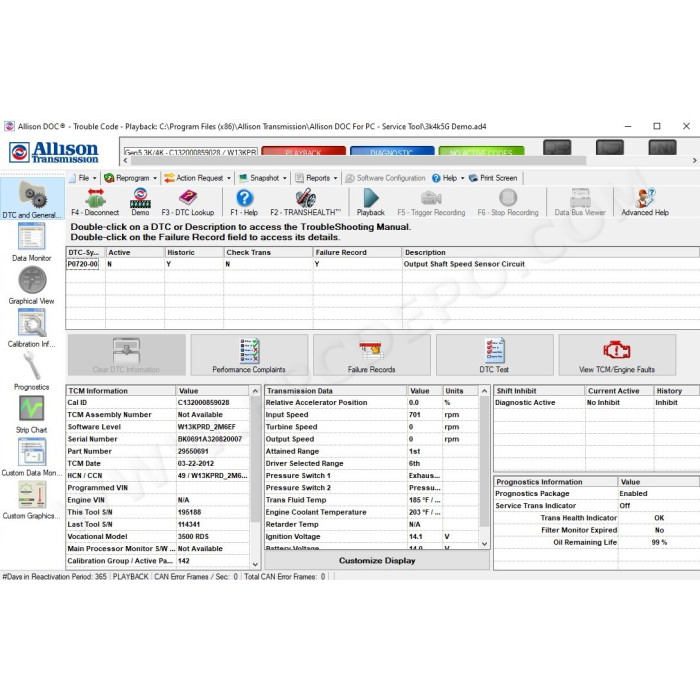

Diagnostic Trouble Code information
Displays multiple transmission parameters
Monitors transmission control modules/control units
Clear transmission trouble codes
Access to TCM configuration data

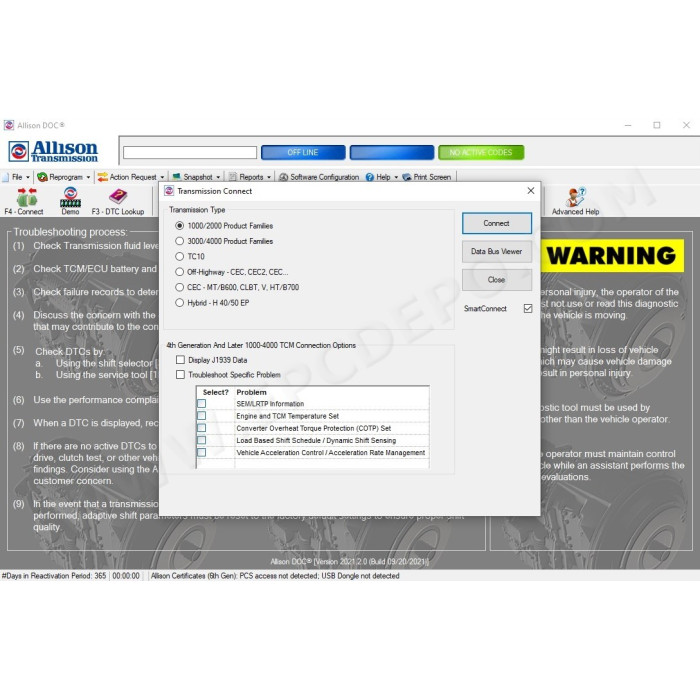

SmartConnect for detecting PC-to-vehicle translation device and communication link
and others

Connecting the pc to the control system:
Dearborn DPA4 USB device
97000 kit for Noregon Wireless/USB translator
J-47943 DPA4 / J-47943-A DPA4 Plus
Nexiq USB Link J1850 / CEC1 protocol
